1825 Series

Catalog

CONN BANANA PLUG STACK SLDRLESS

Part	Body Material	Contact Finish	Operating Temperature	Contact Material	Termination	Gender	Mounting Type	Features	Color	Insulation	Type	Wire Gauge [Max]	Wire Gauge [Min]	Plug/Mating Plug Diameter

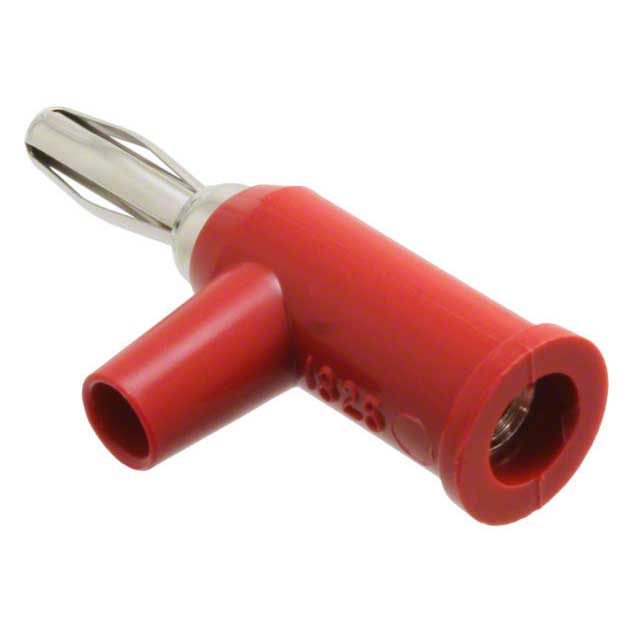

Pomona Electronics 1825-2#	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Red	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana
Pomona Electronics 1825-4#	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Yellow	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana

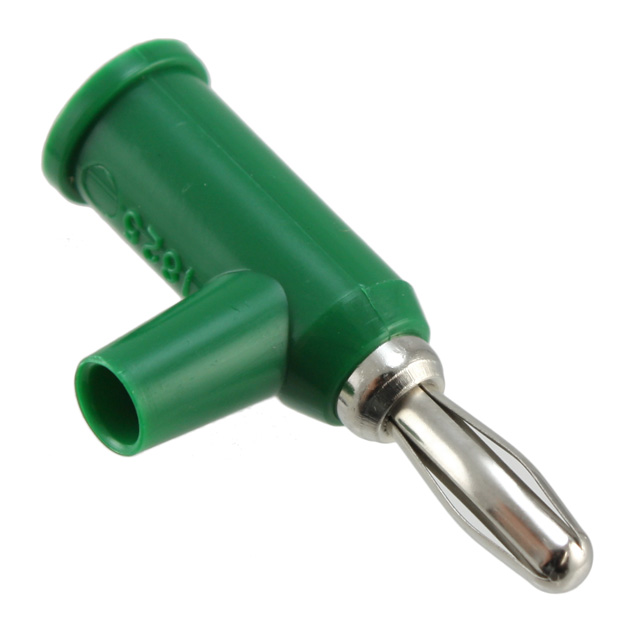

Pomona Electronics 1825-5	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Green	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana

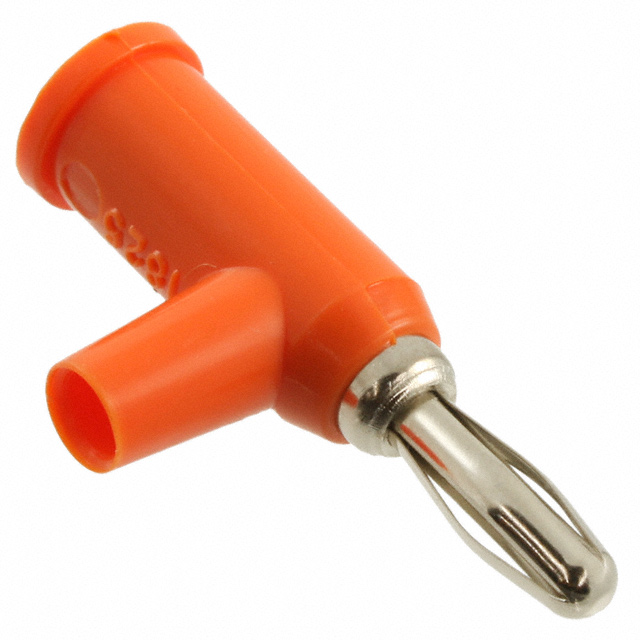

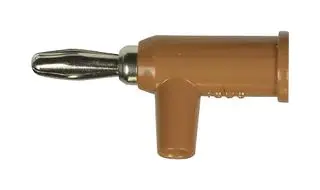

Pomona Electronics 1825-3	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw		Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana
Pomona Electronics 1825-9#	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	White	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana

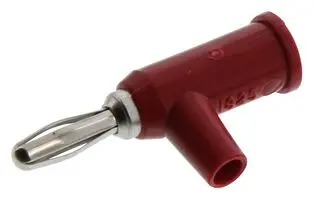

Pomona Electronics 1825-2	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Red	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana
Pomona Electronics 1825-7#	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Violet	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana

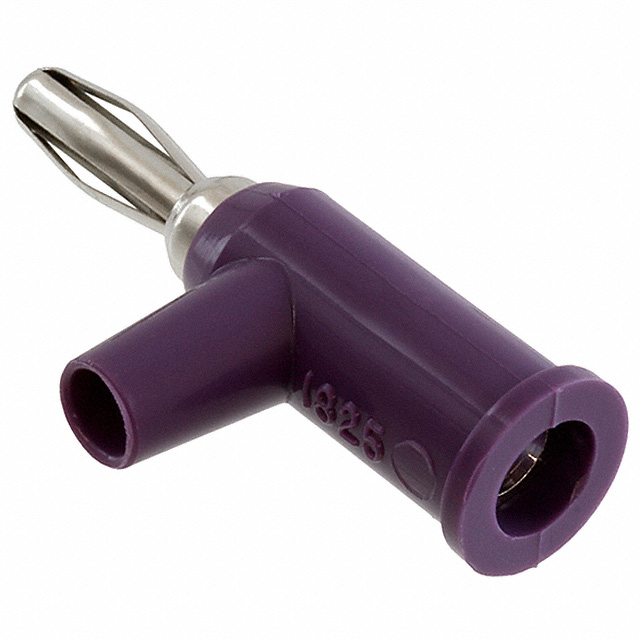

Pomona Electronics 1825-7	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Violet	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana

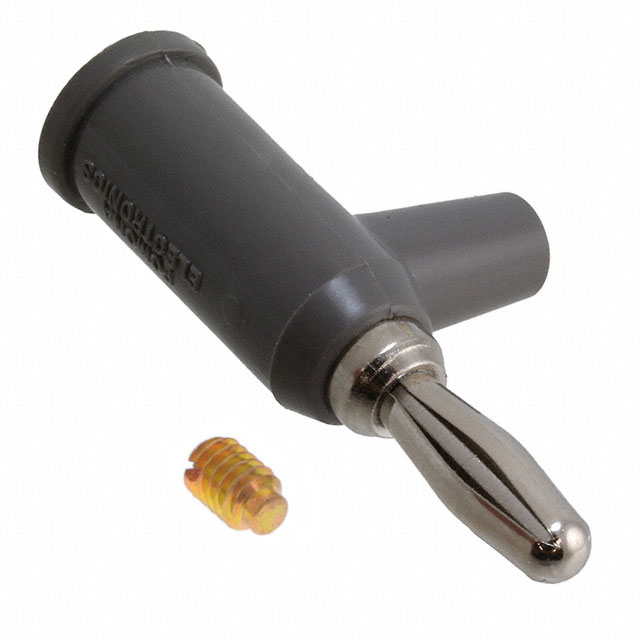

Pomona Electronics 1825-8	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Gray	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana

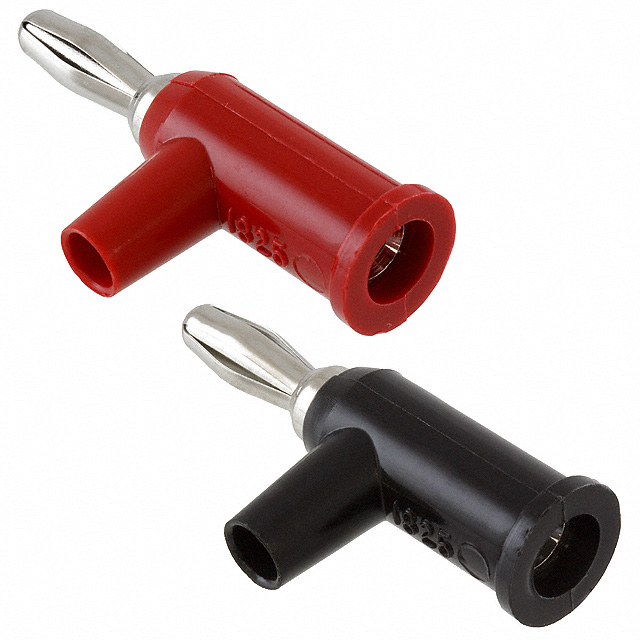

Pomona Electronics 1825-02	Polypropylene (PP)	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Black Red	Non-Mating End Insulated	Banana Plug Stackable	22 AWG	17.5 AWG	Standard Banana
