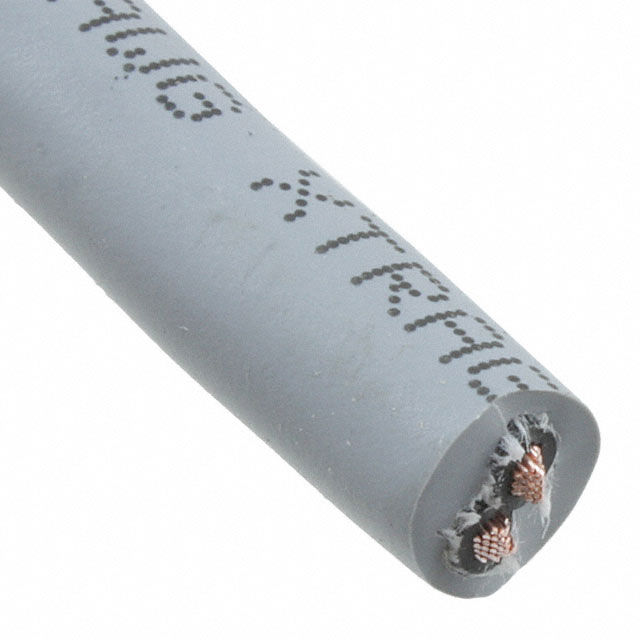

65602 Series

Catalog

MULTICONDUCTOR CABLE, UNSHIELDED, 2 CONDUCTOR, 16 AWG, 1.5 MM², 500 FT, 152.4 M

Part	Ratings	Length	Length	Cable Type	Jacket Color	Number of Conductors	Features	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Voltage	Length [x]	Length [x]
ALPHA WIRE 65602 SL002	ISO 10993 UL Style 2587	152.4 m	500 ft	Multi-Conductor	Slate	2	Biological Compatibility	Poly-Vinyl Chloride (PVC)	30 AWG	26	7.21 mm	0.284 in	Copper Bare	Poly-Vinyl Chloride (PVC)	0.035 in	0.889 mm	16 AWG	600 V
ALPHA WIRE 65602 SL199	ISO 10993 UL Style 2587			Multi-Conductor	Slate	2	Biological Compatibility	Poly-Vinyl Chloride (PVC)	30 AWG	26	7.21 mm	0.284 in	Copper Bare	Poly-Vinyl Chloride (PVC)	0.035 in	0.889 mm	16 AWG	600 V	100 ft	30.5 m
ALPHA WIRE 65602 SL005	ISO 10993 UL Style 2587			Multi-Conductor	Slate	2	Biological Compatibility	Poly-Vinyl Chloride (PVC)	30 AWG	26	7.21 mm	0.284 in	Copper Bare	Poly-Vinyl Chloride (PVC)	0.035 in	0.889 mm	16 AWG	600 V	100 ft	30.5 m
