628-M37 Series
Manufacturer: EDAC Inc.
Beta
⌘K

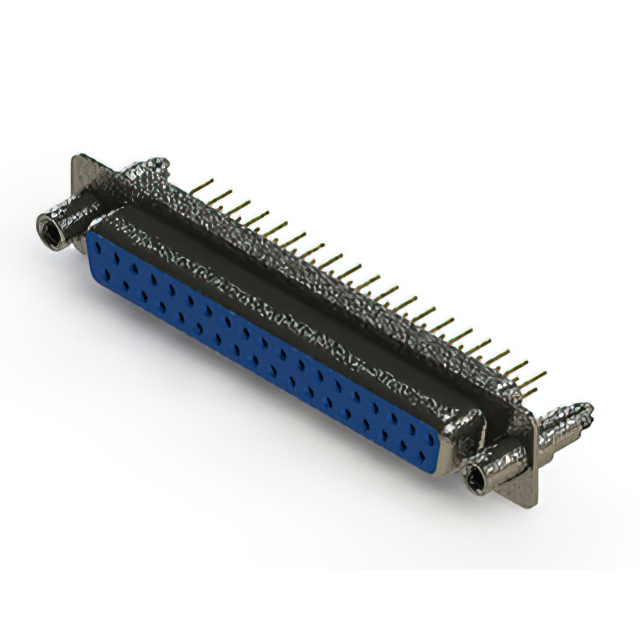

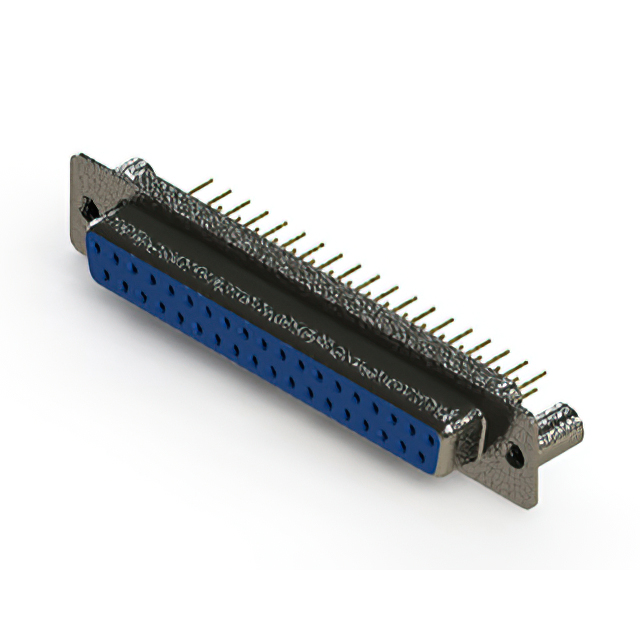

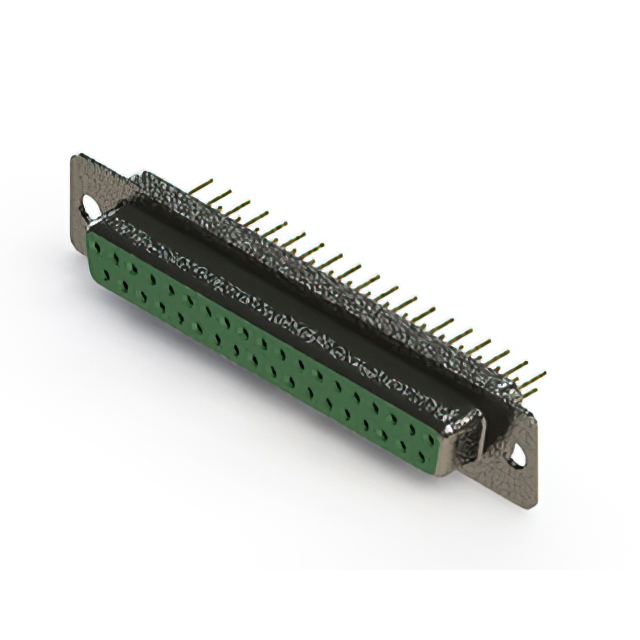

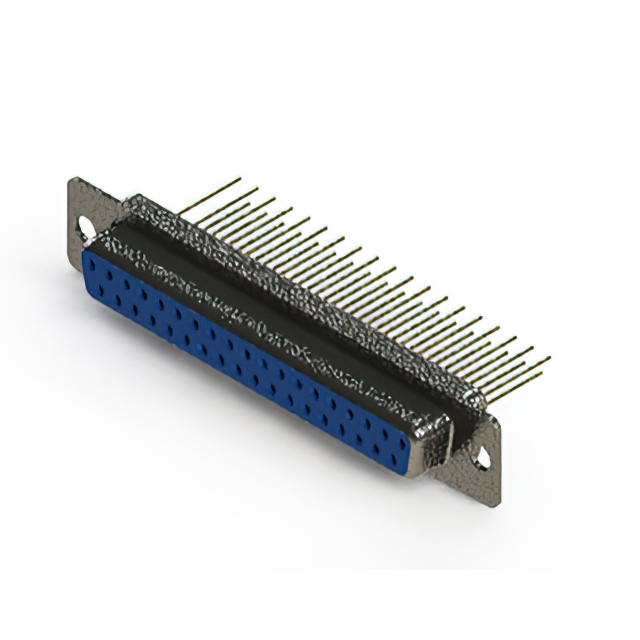

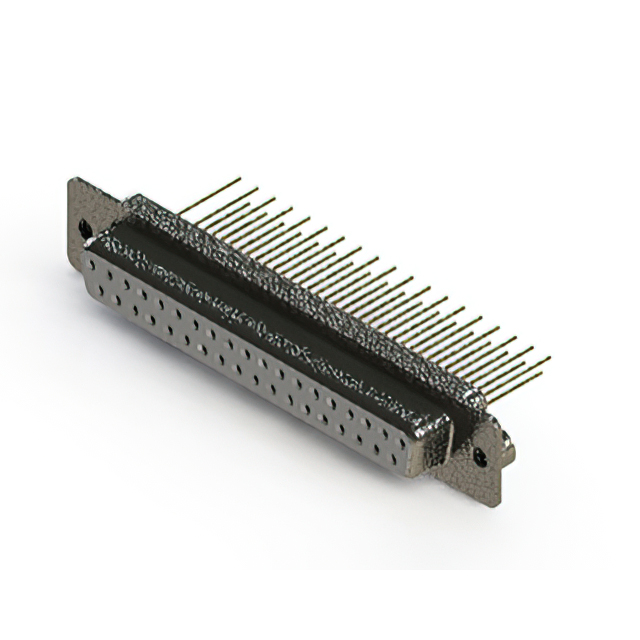

628M SERIES VERTICAL D-SUB RECEP
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Material Flammability Rating | Connector Style | Contact Type | Number of Rows [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout | Flange Feature | Current Rating (Amps) | Number of Positions | Connector Type | Mounting Type | Shell Material, Finish | Termination | Features | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | 4-40 | 5 A | 37 | Receptacle Female Sockets | Through Hole | Nickel Plated Steel | Solder | Board Lock Shielded | Gold | 0.38 µm | 15 µin | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | Board Side (4-40) | 5 A | 37 | Receptacle Female Sockets | Through Hole | Nickel Plated Steel | Solder | Shielded | Gold | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | Housing/Shell | 5 A | 37 | Receptacle Female Sockets | Free Hanging (In-Line) | Shielded | Gold | 0.76 Ám | 30 Áin | 4-40 | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | Housing/Shell | 5 A | 37 | Receptacle Female Sockets | Free Hanging (In-Line) | Nickel Plated Steel | Shielded | Gold | 0.76 Ám | 30 Áin | 4-40 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | Housing/Shell (Unthreaded) | 5 A | 37 | Receptacle Female Sockets | Through Hole | Solder | Shielded | Gold | 0.76 Ám | 30 Áin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | Board Side (4-40) | 5 A | 37 | Receptacle Female Sockets | Through Hole | Nickel Plated Steel | Solder | Shielded | Gold | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | Board Side (4-40) | 5 A | 37 | Receptacle Female Sockets | Through Hole | Nickel Plated Steel | Solder | Shielded | Gold | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | Board Side (4-40) | 5 A | 37 | Receptacle Female Sockets | Through Hole | Solder | Shielded | Gold | 0.38 µm | 15 µin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | Housing/Shell (Unthreaded) | 5 A | 37 | Receptacle Female Sockets | Through Hole | Solder | Shielded | Gold | 0.38 µm | 15 µin | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | UL94 V-0 | D-Sub | Signal and Power | 2 | 4 | DC C | 4-40 | 5 A | 37 | Receptacle Female Sockets | Through Hole | Nickel Plated Steel | Solder | Board Lock Shielded | Gold | 0.38 µm | 15 µin |
