79118 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

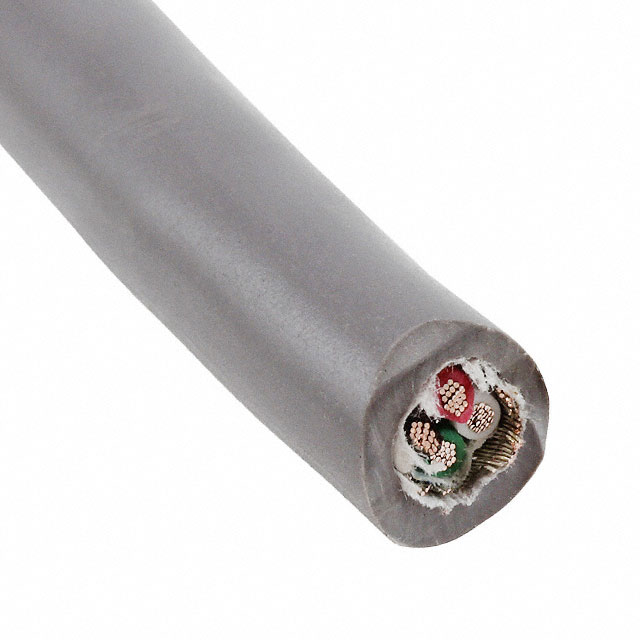

CABLE 4CON 16AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Voltage | Length [x] | Length [x] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Cable Type | Conductor Material | Features | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | 600 V | 100 ft | 30.5 m | 4 | 0.035 in | 0.889 mm | Slate | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | 16 AWG | Multi-Conductor | Copper Tinned | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Braid | 7.52 mm | 0.296 in | ISO 10993 | 30 AWG | 26 | ||
ALPHA WIRE | 85 % | Copper Tinned | 600 V | 4 | 0.035 in | 0.889 mm | Slate | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | 16 AWG | Multi-Conductor | Copper Tinned | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Braid | 7.52 mm | 0.296 in | ISO 10993 | 30 AWG | 26 | 304.8 m | 1000 ft | ||
ALPHA WIRE | 85 % | Copper Tinned | 600 V | 4 | 0.035 in | 0.889 mm | Slate | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | 16 AWG | Multi-Conductor | Copper Tinned | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Braid | 7.52 mm | 0.296 in | ISO 10993 | 30 AWG | 26 |
