2249C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

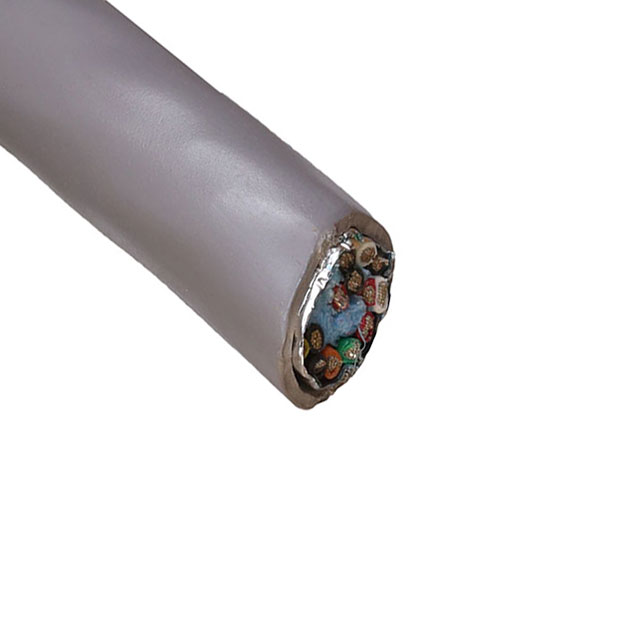

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 9 PAIR, 18 AWG, 0.81 MM², 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Shield Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Cable Type | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Number of Conductors | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Conductor Material | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Foil | Communication Control | 16 | 30 AWG | 18 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 300 VDC | 9 | Drain Wire | 14.86 mm | 0.585 in | Poly-Vinyl Chloride (PVC) | 1.397 mm | 0.055 in | 304.8 m | 1000 ft | Copper Tinned | Slate |
 ALPHA WIRE | 100 % | Aluminum | Foil | Communication Control | 16 | 30 AWG | 18 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 300 VDC | 9 | Drain Wire | 14.86 mm | 0.585 in | Poly-Vinyl Chloride (PVC) | 1.397 mm | 0.055 in | 152.4 m | 500 ft | Copper Tinned | Slate |
