VOT8024 Series

Manufacturer: Vishay Semiconductor Opto Division

Catalog

PHOTOTRIAC 800V ZC SMD4 VDE DIP4

Part	Voltage - Isolation [custom]	Current - LED Trigger (Ift) (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Static dV/dt (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Output Type	Approval Agency	Number of Channels [custom]	Voltage - Off State	Current - Hold (Ih)	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Supplier Device Package	Package / Case	Package / Case
Vishay Semiconductor Opto Division VOT8024AB-V	5300 Vrms	5 mA	Surface Mount	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-SMD Gull Wing	4-SMD
Vishay Semiconductor Opto Division VOT8024AB	5300 Vrms	5 mA	Surface Mount	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-SMD Gull Wing	4-SMD

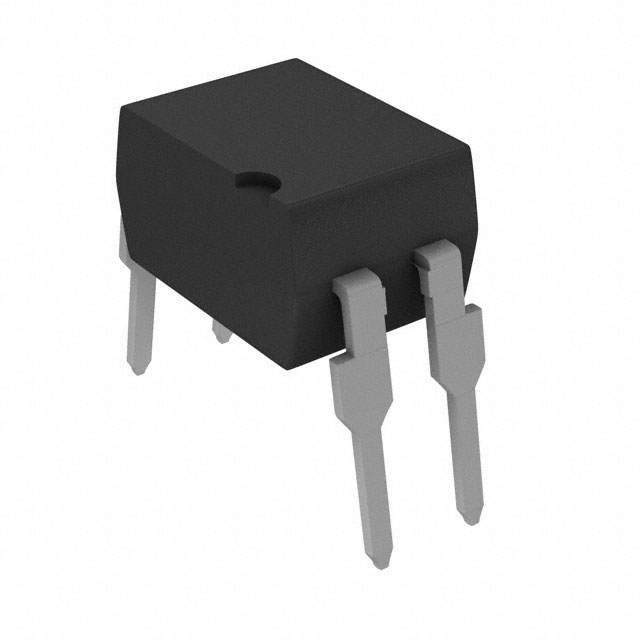

Vishay Semiconductor Opto Division VOT8024AD-V	5300 Vrms	5 mA	Through Hole	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-DIP	4-DIP	0.3 in	7.62 mm
Vishay Semiconductor Opto Division VOT8024AB-VT	5300 Vrms	5 mA	Surface Mount	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-SMD Gull Wing	4-SMD
Vishay Semiconductor Opto Division VOT8024AG-V	5300 Vrms	5 mA	Through Hole	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-DIP (0.400" 10.16mm)	4-DIP
Vishay Semiconductor Opto Division VOT8024AB-VT3	5300 Vrms	5 mA	Surface Mount	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-SMD Gull Wing	4-SMD
Vishay Semiconductor Opto Division VOT8024AB-T3	5300 Vrms	5 mA	Surface Mount	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-SMD Gull Wing	4-SMD
Vishay Semiconductor Opto Division VOT8024AG	5300 Vrms	5 mA	Through Hole	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-DIP (0.400" 10.16mm)	4-DIP
Vishay Semiconductor Opto Division VOT8024AB-VT2	5300 Vrms	5 mA	Surface Mount	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-SMD Gull Wing	4-SMD
Vishay Semiconductor Opto Division VOT8024AD	5300 Vrms	5 mA	Through Hole	-55 C	110 °C	1 kV/µs	50 mA	Triac	CQC cUL UL VDE	1	800 V	400 µA	100 mA	4-DIP	4-DIP	0.3 in	7.62 mm
