LZ1-10 Series

Catalog

LED MOD LZ1 GREEN STARBOARD

Part	Viewing Angle	Wavelength	Current - Test	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Type	Temperature - Test	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Height [z]	Current - Max [Max]	Color	Light Emitting Surface (LES) [diameter]	Configuration	Lens Type	Luminous Flux @ Current/Temperature	CCT (K)	CRI (Color Rendering Index)
ams-OSRAM USA INC. LZ1-10G100-0G23	80 °	525 nm	1 A	57 lm/W	145 lm	285 lm	LED Module	25 °C	19.9 mm	3.75 V	4.5 mm	1.2 A	Green	3.2 mm	Starboard	Domed
ams-OSRAM USA INC. LZ1-10B200-0B34	80 °	465 nm	1 A	11 lm/W	24 lm	60 lm	LED Module	25 °C	19.9 mm	3.6 V	4.5 mm	1.2 A	Blue	3.2 mm	Starboard	Domed	40 lm

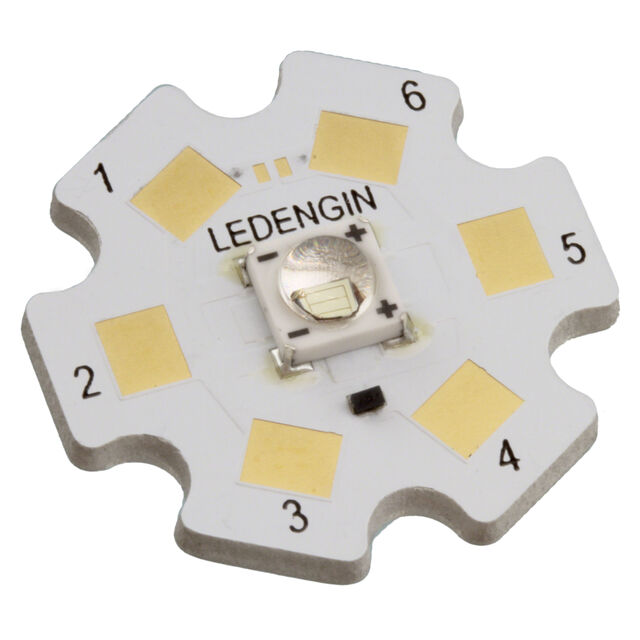

ams-OSRAM USA INC. LZ1-10G100-0000	80 °	525 nm	1 A	53 lm/W	145 lm	285 lm	LED Module	25 °C	19.9 mm	3.7 V	4.5 mm	1.2 A	Green	3.2 mm	Starboard	Domed	200 lm

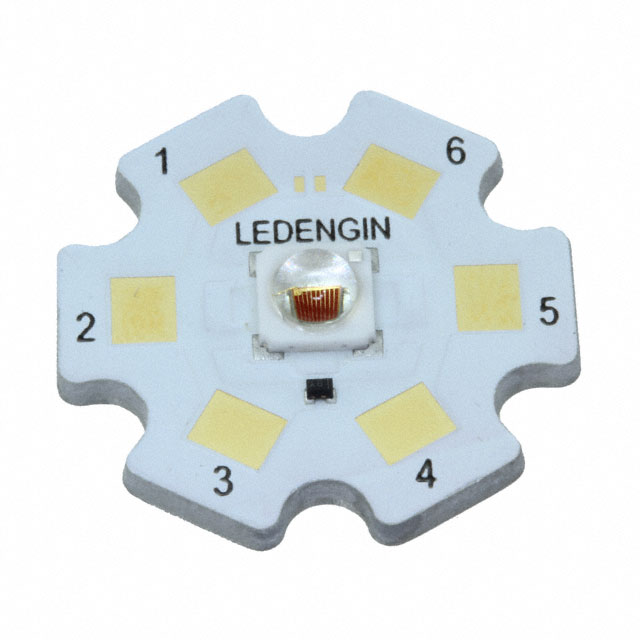

ams-OSRAM USA INC. LZ1-10R102-0000	76 °	623 nm	1 A				LED Module	25 °C	19.9 mm	2.6 V	4.5 mm	1.2 A	Red	3.2 mm	Starboard	Domed	132 lm
ams-OSRAM USA INC. LZ1-10A100-0000	76 °	590 nm	1 A	40 lm/W			LED Module	25 °C	19.9 mm	2.6 V	4.5 mm	1.2 A	Amber	3.2 mm	Starboard	Domed	105 lm
ams-OSRAM USA INC. LZ1-10WW00-0030	85 °		1 A	50 lm/W	146 lm	220 lm	LED Module	25 °C	19.9 mm	3.6 V	4.5 mm	1.2 A	Warm White	3.2 mm	Starboard	Domed		3000 K	85
ams-OSRAM USA INC. LZ1-10CW00-0050	85 °		1 A	63 lm/W			LED Module	25 °C	19.9 mm	3.6 V	4.5 mm	1.2 A	Cool White	3.2 mm	Starboard	Domed	227 lm		75

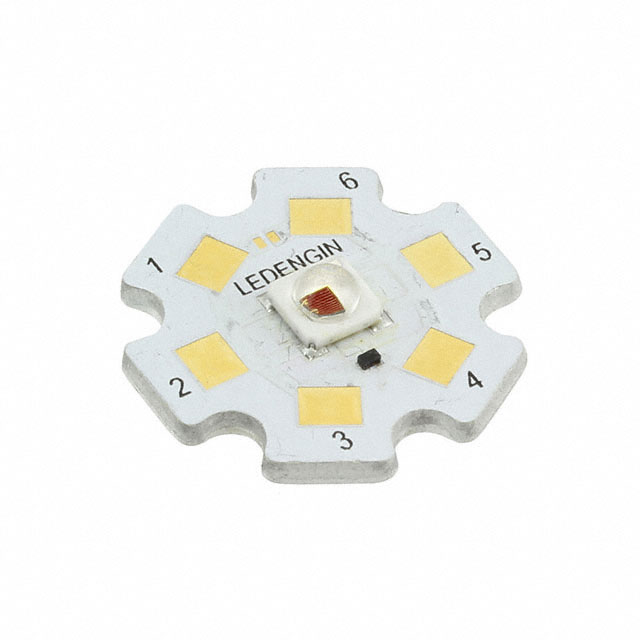

ams-OSRAM USA INC. LZ1-10R202-0000	90 °	660 nm	1 A				LED Module	25 °C	19.9 mm	2.5 V	4.5 mm	1.2 A	Red	3.2 mm	Starboard	Domed
ams-OSRAM USA INC. LZ1-10R200-0000	90 °	660 nm	1 A				LED Module	25 °C	19.9 mm	2.6 V	4.5 mm	1.2 A	Red	3.2 mm	Starboard	Domed

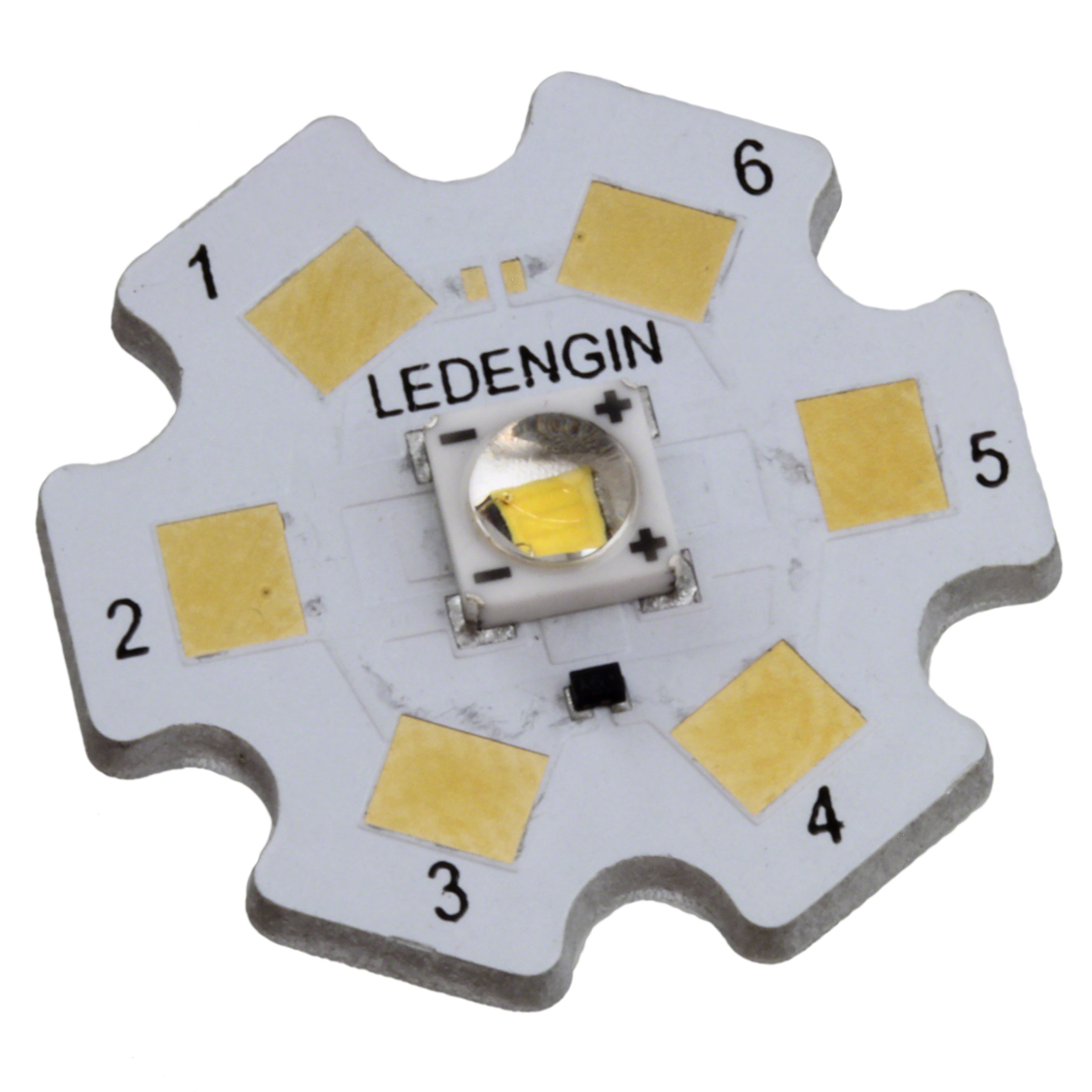

ams-OSRAM USA INC. LZ1-10NW00-0040	85 °		1 A	60 lm/W			LED Module	25 °C	19.9 mm	3.6 V	4.5 mm	1.2 A	Neutral White	3.2 mm	Starboard	Domed	216 lm	4000 K	82
