9WP0824 Series

Catalog

FAN AXIAL 80X25MM 24VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Fan Type	Approval Agency	Features	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Power (Watts)	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Width [y]	Noise	Termination	RPM	Static Pressure	Static Pressure	Weight	Weight	Air Flow	Air Flow
Sanyo Denki America Inc. 9WP0824S401	100 mA	40000 Hrs	Plastic	Plastic	Tubeaxial	CSA TUV UL	Speed Sensor (Tach)	80 mm	80 mm	IP68 - Dust Tight Waterproof	2.4 W	Ball	-20 ░C	70 °C	24 VDC	25 mm	34 dB(A)	3 Wire Leads	3400 RPM	0.193 in H2O	48.1 Pa	130.18 g	0.287 lb
Sanyo Denki America Inc. 9WP0824H4D01	70 mA		Plastic	Plastic	Tubeaxial	CSA TUV UL	Locked Rotor Sensor	80 mm	80 mm	IP68 - Dust Tight Waterproof	1.68 W	Ball	-20 ░C	70 °C	24 VDC	25 mm	29 dB(A)	3 Wire Leads	2900 RPM	0.142 in H2O	35.4 Pa	130.18 g	0.287 lb	36.4 CFM	1.02 m³/min

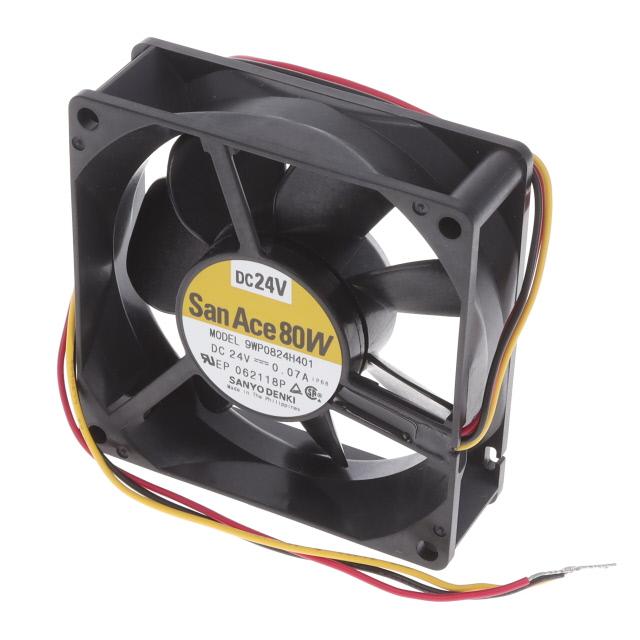

Sanyo Denki America Inc. 9WP0824H401	70 mA		Plastic	Plastic	Tubeaxial	CSA TUV UL	Speed Sensor (Tach)	80 mm	80 mm	IP68 - Dust Tight Waterproof	1.68 W	Ball	-20 ░C	70 °C	24 VDC	25 mm	29 dB(A)	3 Wire Leads	2900 RPM	0.142 in H2O	35.4 Pa	130.18 g	0.287 lb	36.3 CFM	1.02 m³/min
Sanyo Denki America Inc. 9WP0824H4011	70 mA		Plastic	Plastic	Tubeaxial	CSA TUV UL	Speed Sensor (Tach)	80 mm	80 mm	IP68 - Dust Tight Waterproof	1.68 W	Ball	-20 ░C	70 °C	24 VDC	25 mm	29 dB(A)	3 Wire Leads	2900 RPM	0.142 in H2O	35.4 Pa	130.18 g	0.287 lb	36.3 CFM	1.02 m³/min
Sanyo Denki America Inc. 9WP0824H402	70 mA		Plastic	Plastic	Tubeaxial	CSA TUV UL		80 mm	80 mm	IP68 - Dust Tight Waterproof	1.68 W	Ball	-20 ░C	70 °C	24 VDC	25 mm	29 dB(A)	2 Wire Leads	2900 RPM	0.142 in H2O	35.4 Pa	130.18 g	0.287 lb	36.3 CFM	1.02 m³/min
Sanyo Denki America Inc. 9WP0824S402	100 mA	40000 Hrs	Plastic	Plastic	Tubeaxial	CSA TUV UL		80 mm	80 mm	IP68 - Dust Tight Waterproof	2.4 W	Ball	-20 ░C	70 °C	24 VDC	25 mm	34 dB(A)	2 Wire Leads	3400 RPM	0.193 in H2O	48.1 Pa	130.18 g	0.287 lb
