2823142 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,BRK HDR,DRVT,SMD,SN,TR W/

Part	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Mounting Type	Fastening Type	Contact Shape	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Connector Type	Number of Rows	Number of Positions	Contact Type	Features	Material Flammability Rating	Current Rating (Amps)	Insulation Material	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Voltage Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating

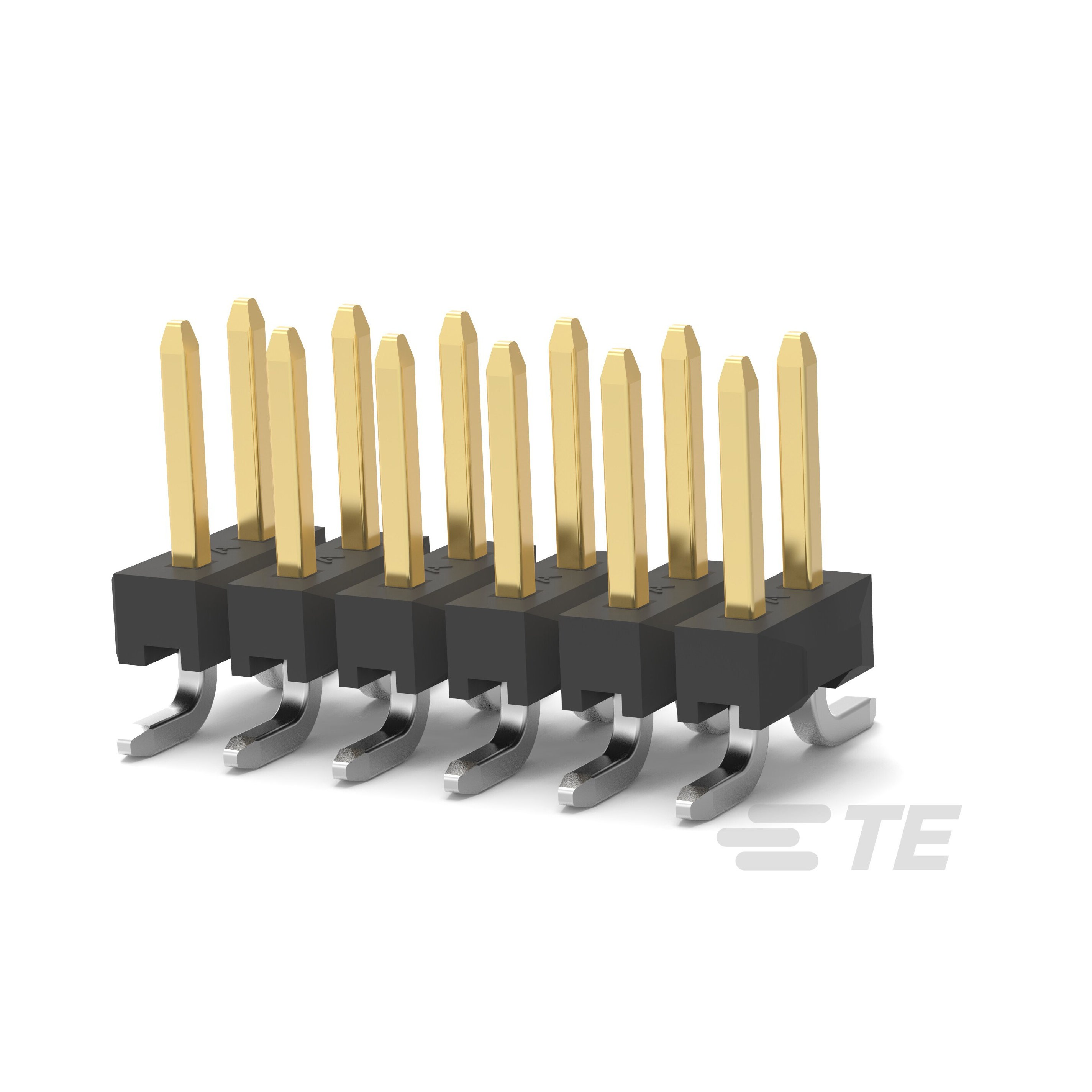

TE Connectivity Raychem Cable Protection 2823142-6	1.5 mm	0.059 "	2.54 çm	100 çin	All	Surface Mount	Push-Pull	Square	Phosphor Bronze	0.079 in	2 mm	-40 °C	105 ░C	Unshrouded	Breakaway Header	2	6	Male Pin	Pick and Place	UL94 V-0	2 A	Thermoplastic	Black	0.079 in	2 mm	Tin	125 VAC	Solder	2.54 µm	100 µin	4 mm	0.157 in

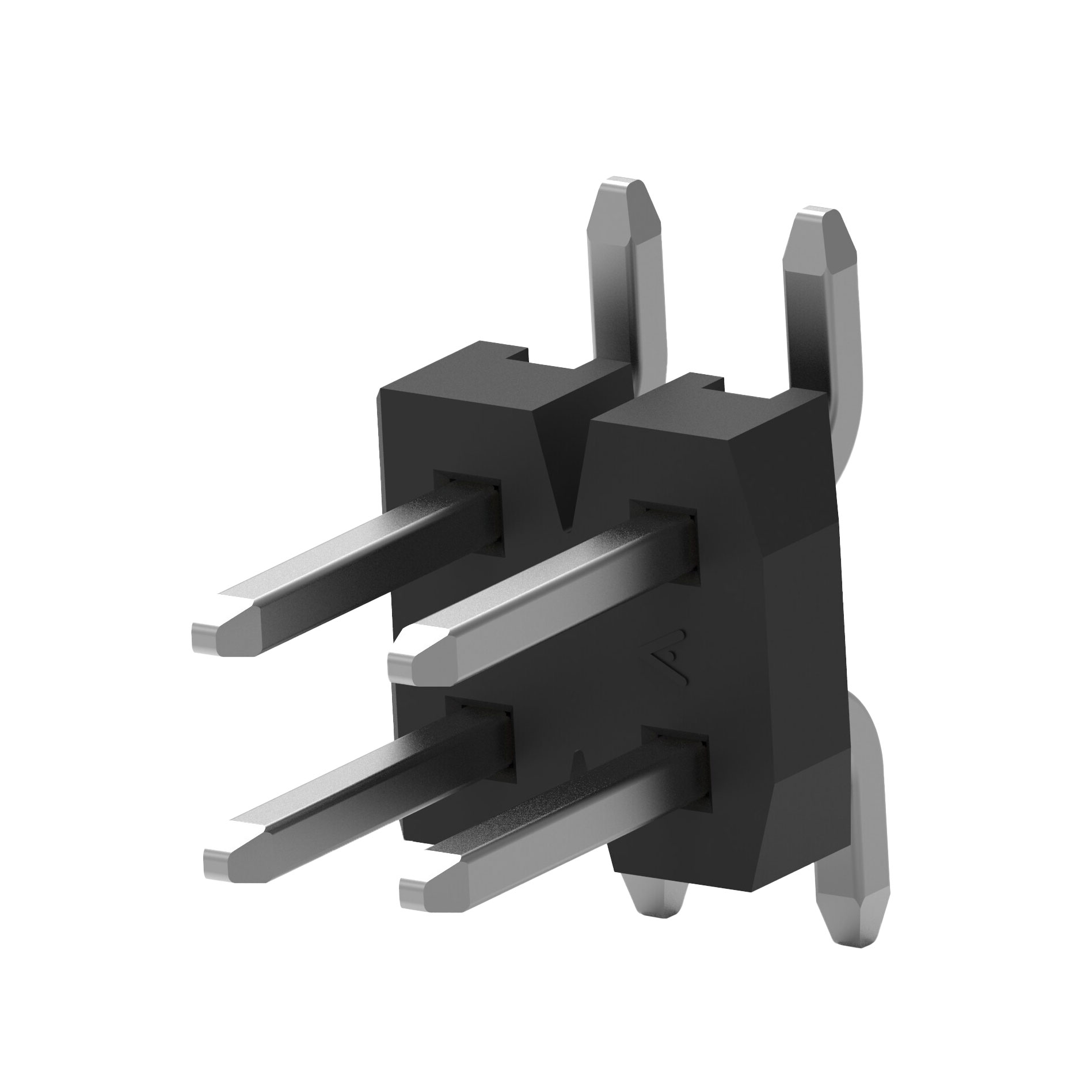

TE Connectivity Raychem Cable Protection 2823142-4	1.5 mm	0.059 "	118.1 µin		All	Surface Mount	Push-Pull	Square	Phosphor Bronze	0.079 in	2 mm	-40 °C	105 ░C	Unshrouded	Breakaway Header	2	4	Male Pin	Pick and Place	UL94 V-0	2 A	Thermoplastic	Black	0.079 in	2 mm	Tin	125 VAC	Solder	0.3 µm	12 µin	4 mm	0.157 in	3 µm
TE Connectivity Raychem Cable Protection 1-2823142-0	1.5 mm	0.059 "	118.1 µin		All	Surface Mount	Push-Pull	Square	Phosphor Bronze	0.079 in	2 mm	-40 °C	105 ░C	Unshrouded	Breakaway Header	2	10	Male Pin	Pick and Place	UL94 V-0	2 A	Thermoplastic	Black	0.079 in	2 mm	Tin	125 VAC	Solder	0.3 µm	12 µin	4 mm	0.157 in	3 µm
