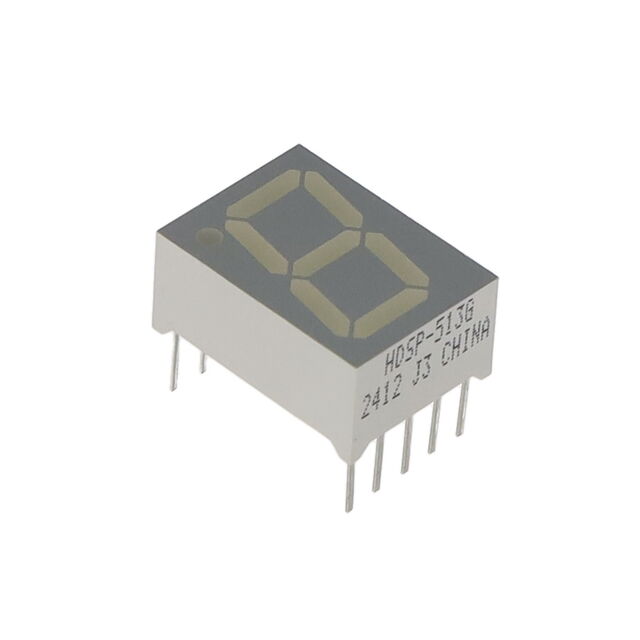

HDSP-513 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISPLAY 7SEG 0.56" SGL RED 10DIP
| Part | Power Dissipation (Max) [Max] | Display Type | Number of Characters [custom] | Wavelength - Peak | Common Pin | Package / Case | Package / Case | Package / Case | Voltage - Forward (Vf) (Typ) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Color | Digit/Alpha Size | Digit/Alpha Size | Millicandela Rating | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Broadcom Limited | 30 mW | 7-Segment | 1 | 660 nm | Common Cathode | 0.6 in | 15.24 mm | 10-DIP | 1.85 V | 17.1 mm | 0.673 " | 12.4 mm | 0.488 in | 0.315 " | 8 mm | Red | 0.56 in | 14.22 mm | 6.5 mcd | 20 mA |
 Broadcom Limited | 7-Segment | 1 | 635 nm | Common Cathode | 0.6 in | 15.24 mm | 10-DIP | 2.05 V | 17.1 mm | 0.673 " | 12.4 mm | 0.488 in | 0.315 " | 8 mm | Red | 0.56 in | 14.22 mm | 4.1 mcd | 20 mA |
