R11445 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

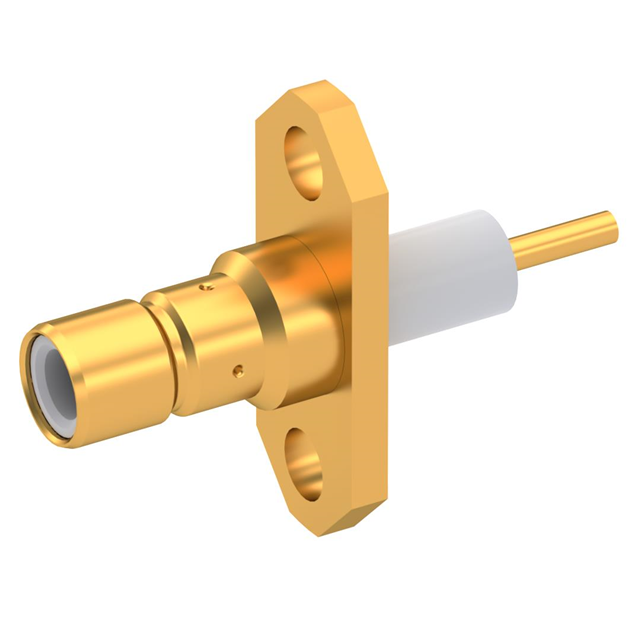

SMB / ADJUST. 2 HOLE FLANGE JACK
| Part | Body Material | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Voltage Rating | Frequency - Max [Max] | Features | Contact Termination | Fastening Type | Shield Termination | Mounting Type | Connector Style | Number of Ports | Housing Color | Mounting Feature | Connector Type | Center Contact Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Gold | 500 | -65 ░C | 125 °C | Gold | Polytetrafluoroethylene (PTFE) | 500 V | 4 GHz | Extended Insulation | Solder | Snap-On | Solder | Panel Mount Through Hole | SMB | 1 | Gold | Flange | Jack Male Pin | Brass | 50 Ohms |
