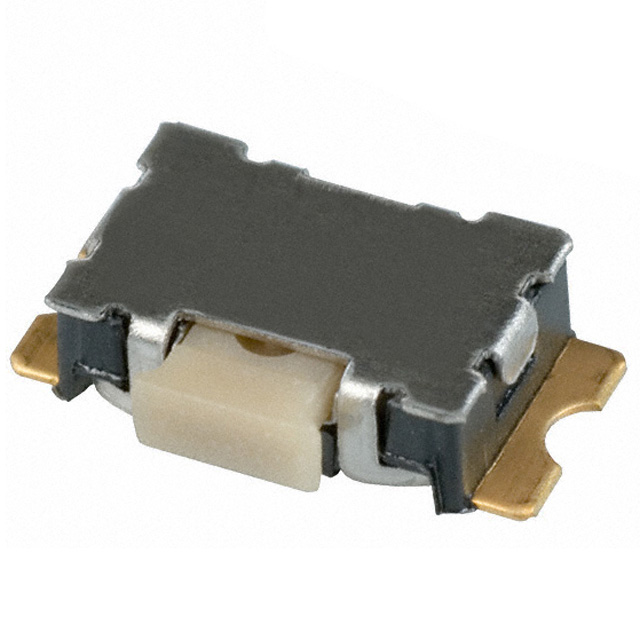

KSS24 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH TACTILE SPST-NO 0.01A 50V
| Part | Operating Force | Actuator Orientation | Ingress Protection | Termination Style | Contact Rating @ Voltage | Illumination | Features | Actuator Type | Circuit | Mechanical Life | Switch Function | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Outline [y] | Outline [x] | Switch Travel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 400 gf | Side Actuated | IP40 | Gull Wing | 0.01 A 50 VDC | Non-Illuminated | Tactile Feedback | Rectangular Button | SPST-NO | 100000 Cycles | Off-Mom | Surface Mount Right Angle | 125 °C | -40 °C | 3.7 mm | 7.6 mm | 0.3 mm |
