79120 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

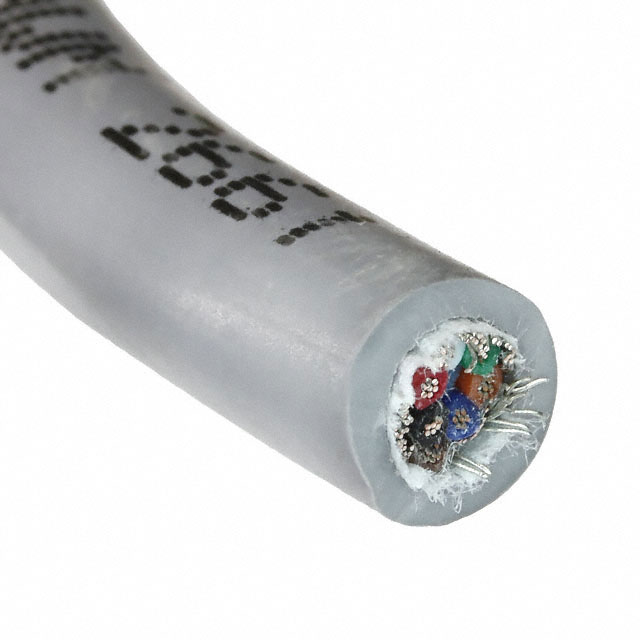

CABLE 7COND 16AWG SHLD
| Part | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Insulation | Jacket (Insulation) Material | Length | Length | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | Copper Tinned | 0.345 in | 8.76 mm | Slate | Multi-Conductor | Biological Compatibility | 30 AWG | 26 | 7 | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | 304.8 m | 1000 ft | 16 AWG | 0.035 in | 0.889 mm | 600 V | -40 C | 105 ░C | ISO 10993 | Braid | ||
ALPHA WIRE | Copper Tinned | 85 % | Copper Tinned | 0.345 in | 8.76 mm | Slate | Multi-Conductor | Biological Compatibility | 30 AWG | 26 | 7 | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | 16 AWG | 0.035 in | 0.889 mm | 600 V | -40 C | 105 ░C | ISO 10993 | Braid | 100 ft | 30.5 m |
