CC2651R3SIPA Series

SimpleLink™ multiprotocol 2.4-GHz wireless system-in-package module with integrated antenna

Catalog

SimpleLink™ multiprotocol 2.4-GHz wireless system-in-package module with integrated antenna

Part	Current - Transmitting [Max]	Current - Transmitting [Min]	Current - Receiving	Data Rate (Max)	Mounting Type	Memory Size	Package / Case	Supplier Device Package	RF Family/Standard	Type	Power - Output	GPIO	Modulation	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency [Max]	Frequency [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Sensitivity	Data Rate	Protocol	Antenna Type	Utilized IC / Part	Supplied Contents	For Use With/Related Products	Frequency

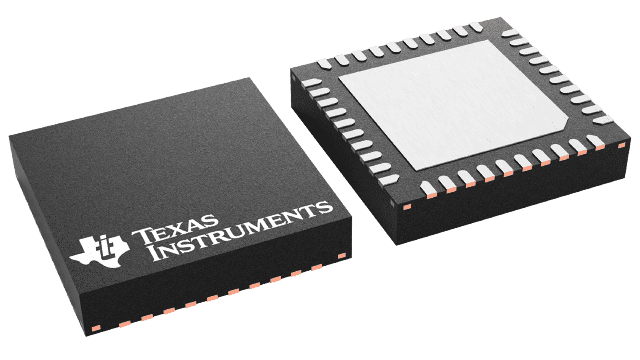

Texas Instruments CC2651P31T0RKPR	101 mA	7.1 mA	6.4 mA	2 Mbps	Surface Mount	40 kB 352 kB	40-VFQFN Exposed Pad	40-VQFN (5x5)	802.15.4 Bluetooth	TxRx + MCU	20 dBm	26	2FSK 2GFSK 4FSK 4GFSK DSSS GFSK MSK	1.8 V	3.8 V	2.5 GHz	2.4 GHz	105 °C	-40 °C	I2C I2S SPI UART	-104 dBm
Texas Instruments CC2651R3SIPAT0MOUR	10 mA	7.1 mA	6.8 mA		Surface Mount	32 kB 352 kB	59-SMD Module		802.15.4 Bluetooth		5 dBm		DSSS FSK GFSK MSK O-QPSK	1.8 V	3.8 V	2.5 GHz	2.36 GHz				-104 dBm	2 Mbps	Bluetooth v5.2 EDGE Wireless M-Bus ZigbeeÛ	Integrated Trace	CC2651R3

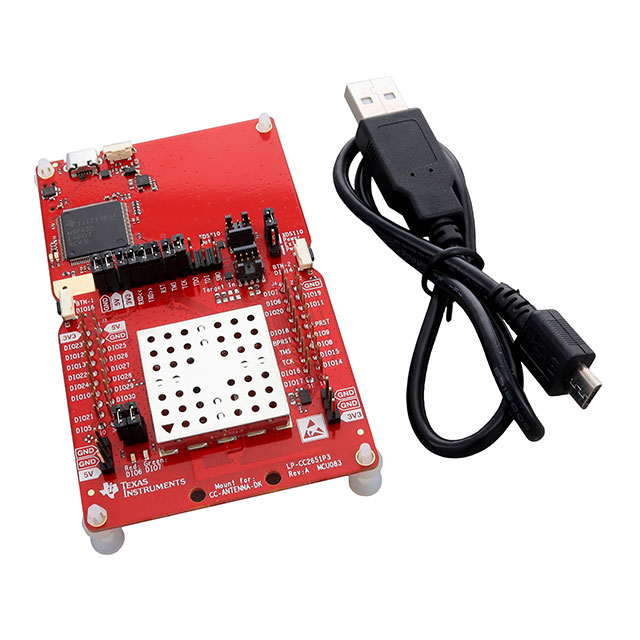

Texas Instruments LP-CC2651P3										802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver																Board(s)	CC2651P3	2.4 GHz
Texas Instruments CC2651R31T0RKPR			6.4 mA	2 Mbps	Surface Mount	40 kB 352 kB	40-VFQFN Exposed Pad	40-VQFN (5x5)	802.15.4 Bluetooth	TxRx + MCU	5 dBm	31	2FSK 2GFSK 4FSK 4GFSK DSSS GFSK MSK	1.8 V	3.8 V	2.5 GHz	2.4 GHz	105 °C	-40 °C	I2C I2S SPI UART	-104 dBm
Texas Instruments CC2651R31T0RGZR			6.4 mA	2 Mbps	Surface Mount	40 kB 352 kB	48-VFQFN Exposed Pad	48-VQFN (7x7)	802.15.4 Bluetooth	TxRx + MCU	5 dBm	31	4-GFSK DSSS GFSK MSK	1.8 V	3.8 V	2.5 GHz	2.36 GHz	105 °C	-40 °C	I2C I2S SPI UART	-104 dBm

Catalog

SimpleLink™ multiprotocol 2.4-GHz wireless system-in-package module with integrated antenna

Key Features

• Wireless microcontrollerPowerful 48-MHz Arm Cortex-M4 processor352KB flash program memory32KB of ultra-low leakage SRAM8KB of Cache SRAM (Alternatively available as general-purpose RAM)Programmable radio includes support for 2-(G)FSK, 4-(G)FSK, MSK,Bluetooth®5.2 Low Energy, IEEE 802.15.4 PHY and MACSupports over-the-air upgrade (OTA)Low power consumptionMCU consumption:2.91 mA active mode, CoreMark61 µA/MHz running CoreMark0.8 µA standby mode, RTC, 32KB RAM0.1 µA shutdown mode, wake-up on pinRadio Consumption:6.4 mA RX7.1 mA TX at 0 dBm9.5 mA TX at +5 dBm22 mA TX at +10 dBm101 mA TX at +20 dBm (7x7 package)Wireless protocol supportZigbee®Bluetooth®5.2 Low EnergySimpleLink™ TI 15.4-stackProprietary systemsHigh performance radio-104 dBm forBluetooth®Low Energy 125-kbpsOutput power up to +20 dBm with temperature compensationRegulatory complianceSuitable for systems targeting compliance with these standards:ETSI EN 300 328, EN 300 440 Cat. 2 and 3FCC CFR47 Part 15ARIB STD-T66MCU peripheralsDigital peripherals can be routed to any GPIOFour 32-bit or eight 16-bit general-purpose timers12-bit ADC, 200 kSamples/s, 8 channels8-bit DACAnalog ComparatorUART, SSI, I2C, I2SReal-time clock (RTC)Integrated temperature and battery monitorSecurity enablersAES 128-bit cryptographic acceleratorTrue random number generator (TRNG)Additional cryptography drivers available in Software Development Kit (SDK)Development tools and softwareLP-CC2651P3 Development KitSimpleLink™ CC13xx and CC26xx Software Development Kit (SDK)SmartRF™ Studiofor simple radio configurationSysConfigsystem configuration toolOperating rangeOn-chip buck DC/DC converter1.8-V to 3.8-V single supply voltage-40 to +105°CPackage7-mm × 7-mm RGZ VQFN48 (26 GPIOs)5-mm × 5-mm RKP VQFN40 (18 GPIOs)RoHS-compliant packageWireless microcontrollerPowerful 48-MHz Arm Cortex-M4 processor352KB flash program memory32KB of ultra-low leakage SRAM8KB of Cache SRAM (Alternatively available as general-purpose RAM)Programmable radio includes support for 2-(G)FSK, 4-(G)FSK, MSK,Bluetooth®5.2 Low Energy, IEEE 802.15.4 PHY and MACSupports over-the-air upgrade (OTA)Low power consumptionMCU consumption:2.91 mA active mode, CoreMark61 µA/MHz running CoreMark0.8 µA standby mode, RTC, 32KB RAM0.1 µA shutdown mode, wake-up on pinRadio Consumption:6.4 mA RX7.1 mA TX at 0 dBm9.5 mA TX at +5 dBm22 mA TX at +10 dBm101 mA TX at +20 dBm (7x7 package)Wireless protocol supportZigbee®Bluetooth®5.2 Low EnergySimpleLink™ TI 15.4-stackProprietary systemsHigh performance radio-104 dBm forBluetooth®Low Energy 125-kbpsOutput power up to +20 dBm with temperature compensationRegulatory complianceSuitable for systems targeting compliance with these standards:ETSI EN 300 328, EN 300 440 Cat. 2 and 3FCC CFR47 Part 15ARIB STD-T66MCU peripheralsDigital peripherals can be routed to any GPIOFour 32-bit or eight 16-bit general-purpose timers12-bit ADC, 200 kSamples/s, 8 channels8-bit DACAnalog ComparatorUART, SSI, I2C, I2SReal-time clock (RTC)Integrated temperature and battery monitorSecurity enablersAES 128-bit cryptographic acceleratorTrue random number generator (TRNG)Additional cryptography drivers available in Software Development Kit (SDK)Development tools and softwareLP-CC2651P3 Development KitSimpleLink™ CC13xx and CC26xx Software Development Kit (SDK)SmartRF™ Studiofor simple radio configurationSysConfigsystem configuration toolOperating rangeOn-chip buck DC/DC converter1.8-V to 3.8-V single supply voltage-40 to +105°CPackage7-mm × 7-mm RGZ VQFN48 (26 GPIOs)5-mm × 5-mm RKP VQFN40 (18 GPIOs)RoHS-compliant package

Description

The SimpleLink™ CC2651R3SIPA device is a multiprotocol 2.4-GHz wireless microcontroller (MCU) supportingZigbee®,Bluetooth® 5.2 Low Energy,IEEE 802.15.4g,TI 15.4-Stack (2.4 GHz).The CC2651R3SIPA is based on an Arm® Cortex® M4 main processor and optimized for low-power wireless communication and advanced sensing ingrid infrastructure,building automation,retail automation,personal electronicsandmedical applications. The CC2651R3SIPA is an ultra-compact 7-mm x 7-mm certified wireless module 2.4 GHz with integrated antenna, DCDC components, Balun, and high frequency crystal oscillator. The CC2651R3SIPA has a software defined radio powered by an Arm® Cortex® M0, which allows support for multiple physical layers and RF standards. The device supports operation in the 2360 to 2500-MHz frequency band. The CC2651R3SIPA supports +5 dBm TX at 9.6 mA in the 2.4-GHz band. CC2651R3SIPA has a receive sensitivity of -104 dBm for 125-kbps Bluetooth® Low Energy Coded PHY. The CC2651R3SIPA has a low sleep current of 0.9 µA with RTC and 32KB RAM retention. TI has aproduct life cycle policywith a commitment to product longevity and continuity of supply. The CC2651R3SIPA device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi®, Bluetooth® Low Energy, Thread, Zigbee, Wi-SUN®, Amazon Sidewalk, mioty, Sub-1 GHz MCUs, and host MCU. CC2651R3SIPA is part of a scalable portfolio with flash sizes from 32KB to 704KB with pin-to-pin compatible package options. The commonSimpleLink™CC13xx and CC26xx Software Development Kit (SDK)andSysConfigsystem configuration tool supports migration between devices in the portfolio. A comprehensive number of software stacks, application examples and SimpleLink™ Academy training sessions are included in the SDK. For more information, visitwireless connectivity. The SimpleLink™ CC2651R3SIPA device is a multiprotocol 2.4-GHz wireless microcontroller (MCU) supportingZigbee®,Bluetooth® 5.2 Low Energy,IEEE 802.15.4g,TI 15.4-Stack (2.4 GHz).The CC2651R3SIPA is based on an Arm® Cortex® M4 main processor and optimized for low-power wireless communication and advanced sensing ingrid infrastructure,building automation,retail automation,personal electronicsandmedical applications. The CC2651R3SIPA is an ultra-compact 7-mm x 7-mm certified wireless module 2.4 GHz with integrated antenna, DCDC components, Balun, and high frequency crystal oscillator. The CC2651R3SIPA has a software defined radio powered by an Arm® Cortex® M0, which allows support for multiple physical layers and RF standards. The device supports operation in the 2360 to 2500-MHz frequency band. The CC2651R3SIPA supports +5 dBm TX at 9.6 mA in the 2.4-GHz band. CC2651R3SIPA has a receive sensitivity of -104 dBm for 125-kbps Bluetooth® Low Energy Coded PHY. The CC2651R3SIPA has a low sleep current of 0.9 µA with RTC and 32KB RAM retention. TI has aproduct life cycle policywith a commitment to product longevity and continuity of supply. The CC2651R3SIPA device is part of the SimpleLink™ MCU platform, which consists of Wi-Fi®, Bluetooth® Low Energy, Thread, Zigbee, Wi-SUN®, Amazon Sidewalk, mioty, Sub-1 GHz MCUs, and host MCU. CC2651R3SIPA is part of a scalable portfolio with flash sizes from 32KB to 704KB with pin-to-pin compatible package options. The commonSimpleLink™CC13xx and CC26xx Software Development Kit (SDK)andSysConfigsystem configuration tool supports migration between devices in the portfolio. A comprehensive number of software stacks, application examples and SimpleLink™ Academy training sessions are included in the SDK. For more information, visitwireless connectivity.
