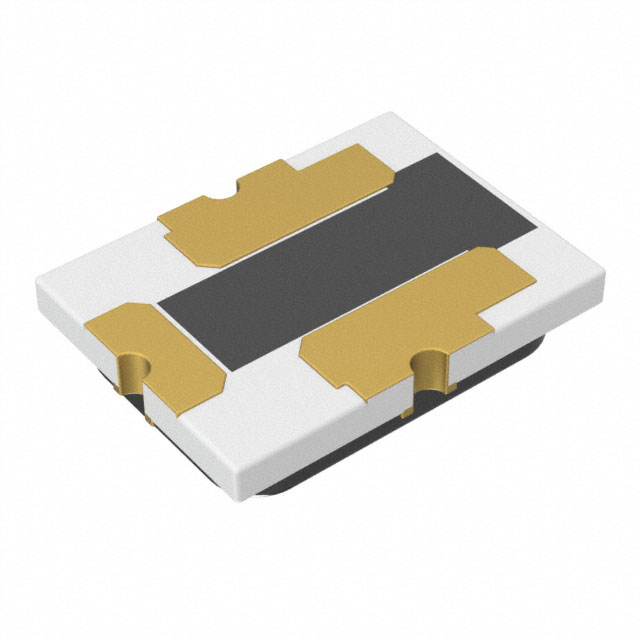

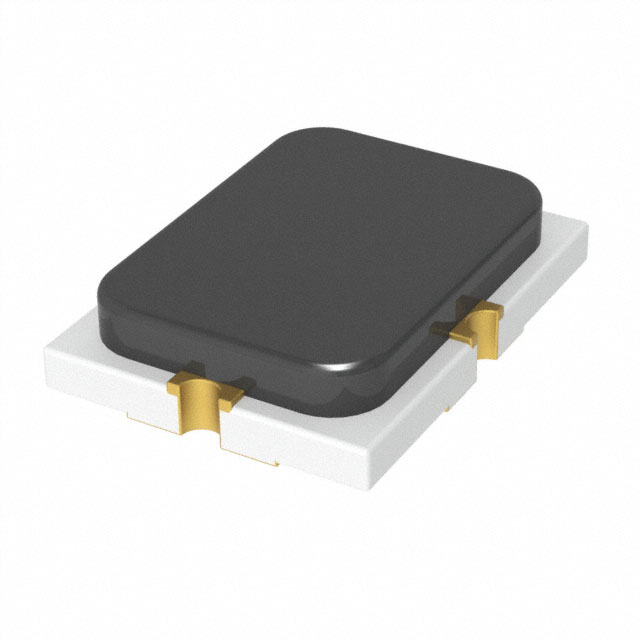

FD-4030 Series

Catalog

SMD FUSE RATED CURRENT 12A/35VDC

Part	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Features [Max]	Features	Features [Min]	Applications	Fuse Type	Response Time	Package / Case	Approval Agency
Delta Electronics/Cyntec FD-4030-12A-C2-C	50 A	12 Amps	35 V	65 °C	-10 °C	0.157 in	4 mm	3 mm	0.037 in	0.95 mm	0.118 in	Surface Mount	9 V	Triggerable	4 V	Battery Protection	Board Mount	Fast Blow	1612 (4030 Metric)	TUV UL
Delta Electronics/Cyntec FD-4030-12A-C4-C	50 A	12 Amps	35 V	65 °C	-10 °C	0.157 in	4 mm	3 mm	0.037 in	0.95 mm	0.118 in	Surface Mount	19.6 V	Triggerable	10.5 V	Battery Protection	Board Mount	Fast Blow	1612 (4030 Metric)	TUV UL
Delta Electronics/Cyntec FD-4030-12A-C3-C	50 A	12 Amps	35 V	65 °C	-10 °C	0.157 in	4 mm	3 mm	0.037 in	0.95 mm	0.118 in	Surface Mount	14 V	Triggerable	7.4 V	Battery Protection	Board Mount	Fast Blow	1612 (4030 Metric)	TUV UL
Delta Electronics/Cyntec FD-4030-12A-C1-C	50 A	12 Amps	35 V	65 °C	-10 °C	0.157 in	4 mm	3 mm	0.037 in	0.95 mm	0.118 in	Surface Mount	4.5 V	Triggerable	3 V	Battery Protection	Board Mount	Fast Blow	1612 (4030 Metric)	TUV UL
