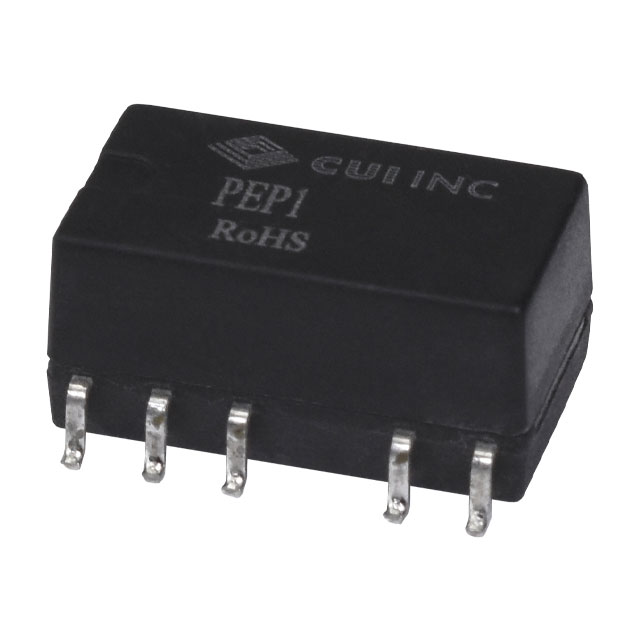

PEP1-S5 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-3.3V 997MW

Part	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Output 2	Package / Case	Voltage - Input (Max) [Max]	Number of Outputs	Approval Agency	Applications	Standard Number	Efficiency	Voltage - Isolation	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]
CUI Inc. PEP1-S5-D3-M	997 mW	4.5 V	-3.3 V	12-SMD Module 10 Leads	5.5 V	2	CB Scheme EN IEC UL	ITE (Commercial)	55024 55032 Class A 62368-1	74 %	3000 V	151 mA	151 mA	Isolated Module	105 C	-40 °C	3.3 V	Surface Mount	0.33 "	7.3 mm	0.29 in	8.5 mm	15.2 mm	0.6 "
CUI Inc. PEP1-S5-D3-M-TR	997 mW	4.5 V	-3.3 V	12-SMD Module 10 Leads	5.5 V	2	CB Scheme EN IEC UL	ITE (Commercial)	55024 55032 Class A 62368-1	74 %	3000 V	151 mA	151 mA	Isolated Module	105 C	-40 °C	3.3 V	Surface Mount	0.33 "	7.3 mm	0.29 in	8.5 mm	15.2 mm	0.6 "
CUI Inc. PEP1-S5-D15-M		4.5 V	-15 V	12-SMD Module 10 Leads	5.5 V	2	CB Scheme EN IEC UL	ITE (Commercial)	55024 55032 Class A 62368-1	83 %	3000 V		34 mA	Isolated Module	105 C	-40 °C	15 V	Surface Mount	0.33 "	7.3 mm	0.29 in	8.5 mm	15.2 mm	0.6 "	34 mA
CUI Inc. PEP1-S5-S9-M-TR		4.5 V		12-SMD Module 10 Leads	5.5 V	1	CB Scheme EN IEC UL	ITE (Commercial)	55024 55032 Class A 62368-1	83 %	3000 V		111 mA	Isolated Module	105 C	-40 °C	9 V	Surface Mount	0.33 "	7.3 mm	0.29 in	8.5 mm	15.2 mm	0.6 "
CUI Inc. PEP1-S5-S15-M		4.5 V		12-SMD Module 10 Leads	5.5 V	1	CB Scheme EN IEC UL	ITE (Commercial)	55024 55032 Class A 62368-1	83 %	3000 V		67 mA	Isolated Module	105 C	-40 °C	15 V	Surface Mount	0.33 "	7.3 mm	0.29 in	8.5 mm	15.2 mm	0.6 "
