LAM67F Series

Catalog

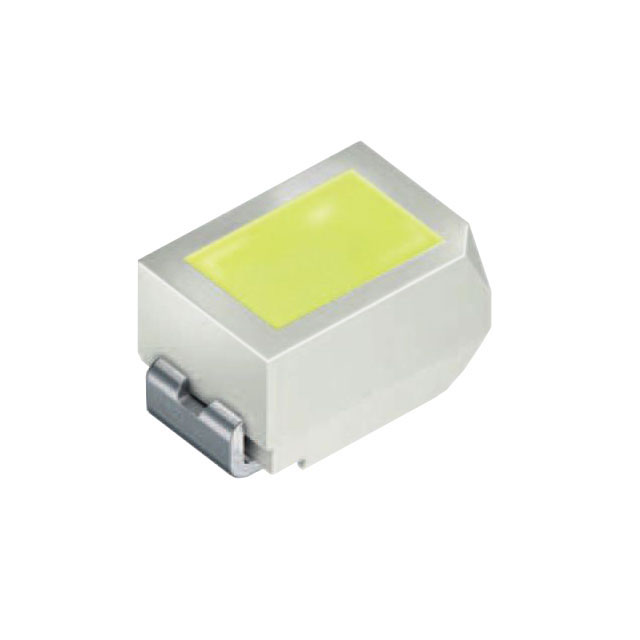

LED MINI TOPLED AMBER 618NM SMD

Part	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Package / Case	Color	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Viewing Angle	Wavelength	Wavelength [Max]	Wavelength [Min]	Current - Max [Max]	Current - Test	Temperature - Test	Thermal Resistance of Package
ams-OSRAM USA INC. LA M67F-V1AB-24-1-20-R18-Z	5 lm	4 lm	2 lm	2-SMD J-Lead	Amber	SMD	0.055 in	1.4 mm	Surface Mount	2.15 V	1.4 mm	0.079 in	2 mm	0.055 in	93 lm/W	120 °	618 nm	624 nm	612 nm	30 mA	20 mA	25 °C	580 °C/W
