WP424 Series

Catalog

LED UNI-COLOR YELLOW 590NM 2-PIN T-1 BULK

Part	Viewing Angle	Configuration	Millicandela Rating	Lens Size	Lens Size	Mounting Type	Package / Case	Lens Color	Wavelength - Dominant	Wavelength - Peak	Size / Dimension [diameter]	Color	Current - Test	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Style	Supplier Device Package

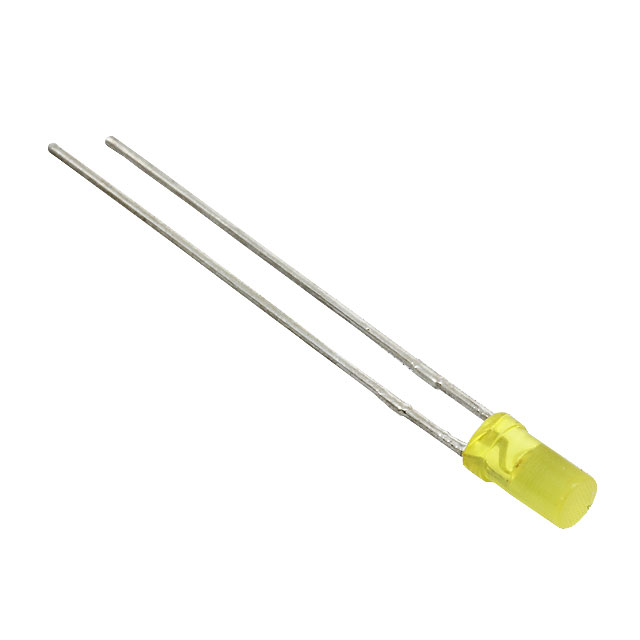

Kingbright WP424YDT	100 °	Standard	3 mcd	3 mm	T-1	Through Hole	Radial	Yellow	588 nm	590 nm	3 mm	Yellow	20 mA	6 mm	2.1 V	Diffused	Round with Flat Top	T-1

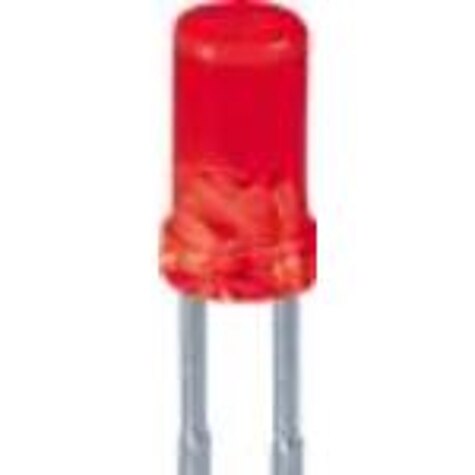

Kingbright WP424IDT	100 °	Standard	4 mcd	3 mm	T-1	Through Hole	Radial	Red	617 nm	627 nm	3 mm	Red	20 mA	6 mm	2 V	Diffused	Round with Flat Top	T-1

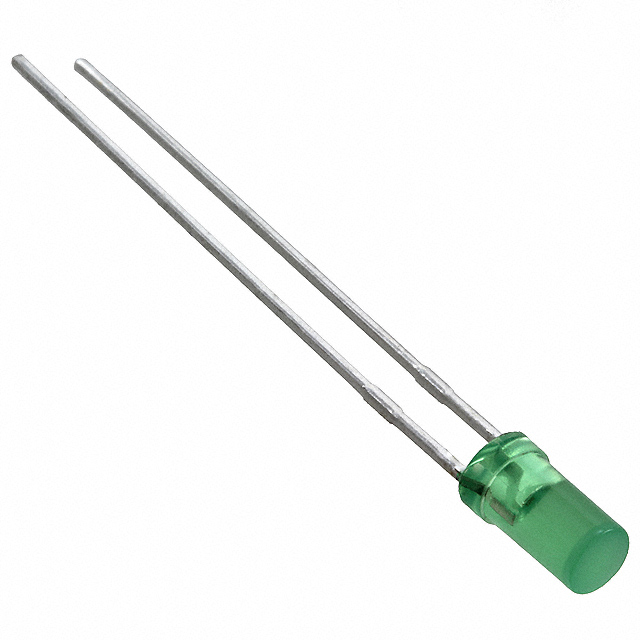

Kingbright WP424GDT	100 °	Standard	6 mcd	3 mm	T-1	Through Hole	Radial	Green	568 nm	565 nm	3 mm	Green	20 mA	6 mm	2.2 V	Diffused	Round with Flat Top	T-1
Kingbright WP424HDT	100 °	Standard	0.6 mcd	3 mm	T-1	Through Hole	Radial	Red	635 nm	700 nm	3 mm	Red	20 mA	6 mm	2.25 V	Diffused	Round with Flat Top	T-1
Kingbright WP424SRDT	100 °	Standard	20 mcd	3 mm	T-1	Through Hole	Radial	Red	640 nm	655 nm	3 mm	Red	20 mA	6 mm	1.85 V	Diffused	Round with Flat Top	T-1

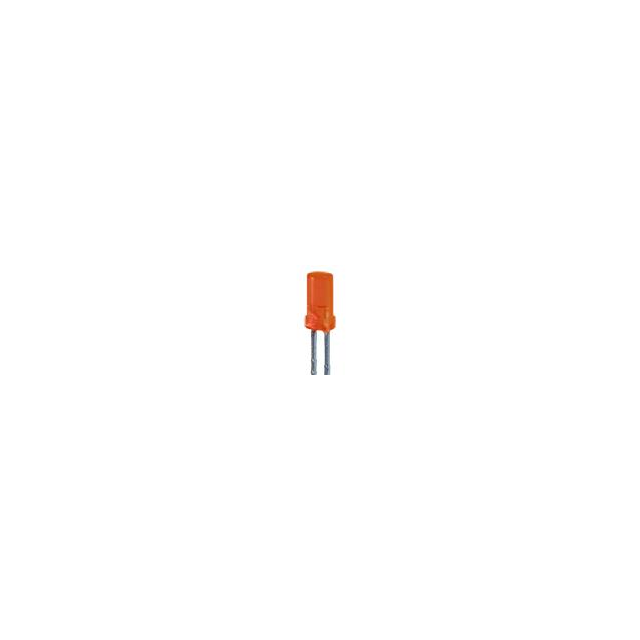

Kingbright WP424EDT	100 °	Standard	4 mcd	3 mm	T-1	Through Hole	Radial	Orange	617 nm	627 nm	3 mm		20 mA	6 mm	2 V	Diffused	Round with Flat Top	T-1
