PNG-1 Series

Catalog

CABLE GLAND 6-12MM 1/2" NPT

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size	Ingress Protection	Type	Color	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size
SAB North America PNG-1/2	6 mm	0.236 in	-20 ░C	100 °C	12 mm	0.472 in	0.5	0.591 in	15 mm	21.3 mm	0.84 in	IP68 - Dust Tight Waterproof	Cable Gland	Gray

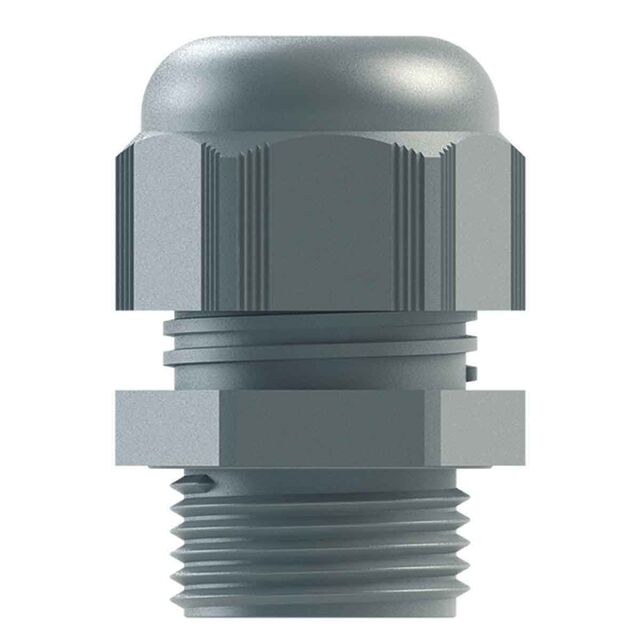

SAB North America PNG-1/2C			-20 ░C	100 °C		0.551 in	0.5	0.433 in	11 mm	21.3 mm	0.84 in	IP68 - Dust Tight Waterproof	Cable Gland	Gray	10 mm	0.394 "	14 mm
SAB North America PNG-1/2R	5 mm	0.197 in	-20 ░C	100 °C			0.5	0.591 in	15 mm	21.3 mm	0.84 in	IP68 - Dust Tight Waterproof	Cable Gland	Gray			9 mm	0.354 in
SAB North America PNG-1R			-20 ░C	100 °C				0.709 in	18.01 mm	33.4 mm	1.315 in	IP68 - Dust Tight Waterproof	Cable Gland	Gray	12 mm	0.472 in		0.787 in	20 mm	1" NPT
