5435-1 Series

Catalog

CONN PC PIN CIRC .018DIA GOLD

Part	Insulation	Termination	Length - Above Flange [x]	Length - Above Flange [x]	Contact Material	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Terminal Type	Terminal Style	Contact Finish Thickness	Contact Finish Thickness	Contact Finish

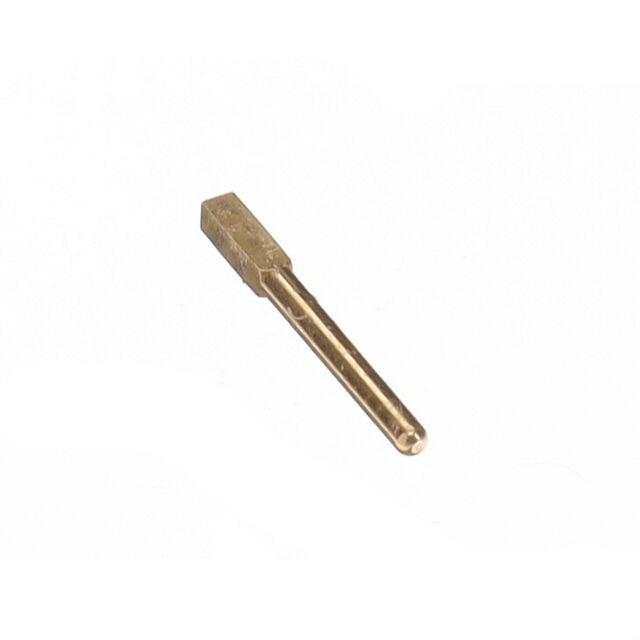

Mill-Max Manufacturing Corp. 5435-1-05-15-00-00-03-0	Non-Insulated	Press-Fit Square	0.14 in	3.56 mm	Brass Alloy	0.018 in	0.46 mm	0.56 mm	0.022 in	Through Hole	PC Pin	Single End	0.25 Ám	10 Áin	Gold

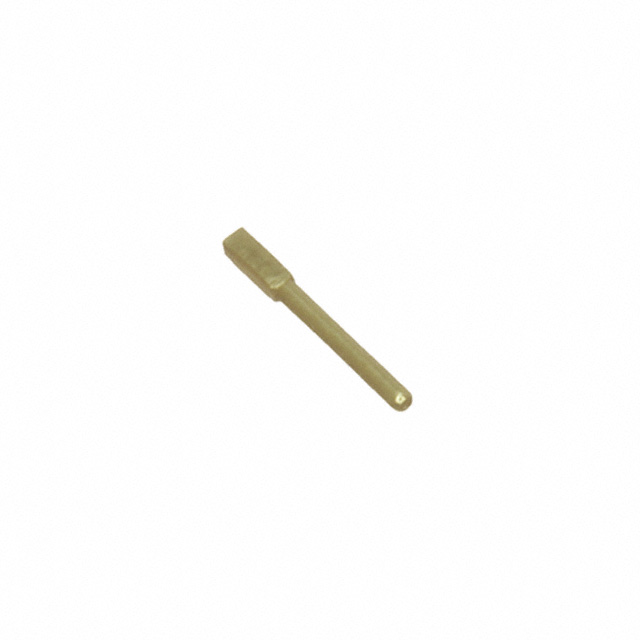

Mill-Max Manufacturing Corp. 5435-1-05-34-00-00-03-0	Non-Insulated	Press-Fit Square	0.14 in	3.56 mm	Brass Alloy	0.018 in	0.46 mm	0.56 mm	0.022 in	Through Hole	PC Pin	Single End	1.27 µm	50 µin	Gold

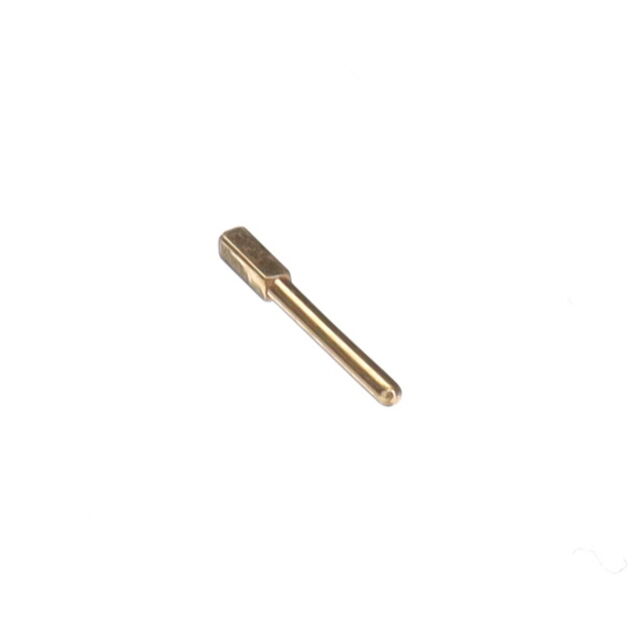

Mill-Max Manufacturing Corp. 5435-1-05-21-00-00-03-0	Non-Insulated	Press-Fit Square	0.14 in	3.56 mm	Brass Alloy	0.018 in	0.46 mm	0.56 mm	0.022 in	Through Hole	PC Pin	Single End	0.51 µm	20 µin	Gold
