PKB491 Series

Catalog

DC DC CONVERTER 12V 90W

Part	Mounting Type	Package / Case	Approval Agency	Standard Number	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Type	Applications	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Control Features	Supplier Device Package
Flex Power Modules PKB4913SINB	Surface Mount	Eighth Brick	CB CSA IEC TUV UL	62368-1	91.2 %	Adjustable Output Remote On/Off Remote Sense	120 °C	-40 °C	2250 VDC	7.5 A	58.4 mm	2.3 in	0.89 in	0.33 in	8.4 mm	22.7 mm	Isolated Module	ITE (Commercial)	36 V	12 V	90 W	75 V	1	Active Low Enable	Eighth Brick
Flex Power Modules PKB4918HCPI	Through Hole	Eighth Brick	CB CSA IEC TUV UL	62368-1	88.5 %	Adjustable Output Remote On/Off Remote Sense	125 °C	-40 °C	1.5 kV	60 A	58.4 mm	2.3 in	0.89 in	0.34 in	8.6 mm	22.7 mm	Isolated Module	ITE (Commercial)	36 V	1.5 V	90 W	75 V	1	Active Low Enable	Eighth Brick
Flex Power Modules PKB4910API	Through Hole	Eighth Brick	CB CSA IEC TUV UL	62368-1	92.7 %	Adjustable Output Remote On/Off Remote Sense	125 °C	-40 °C	2250 VDC	30 A	58.4 mm	2.3 in	0.89 in	0.33 in	8.5 mm	22.7 mm	Isolated Module	ITE (Commercial)	36 V	3.3 V	99 W	72 V	1	Active Low Enable	Eighth Brick

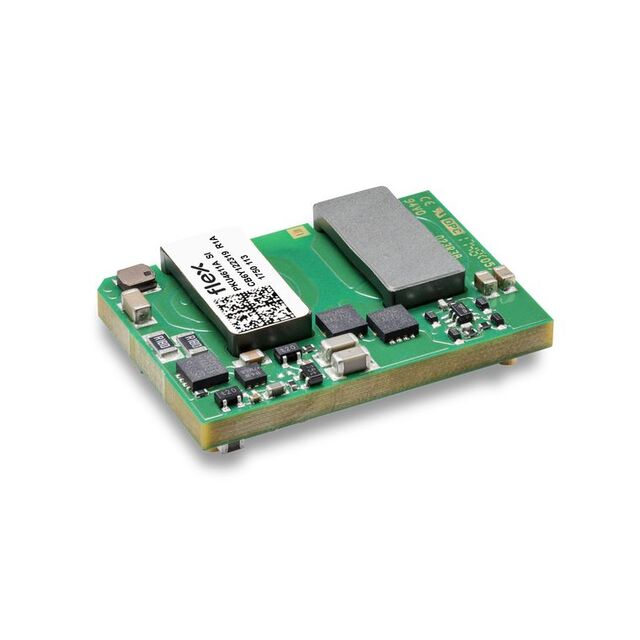

Flex Power Modules PKB4913PINB	Through Hole	Eighth Brick	CB CSA IEC TUV UL	62368-1	91.2 %	Adjustable Output Remote On/Off Remote Sense	120 °C	-40 °C	2250 VDC	7.5 A	58.4 mm	2.3 in	0.89 in	0.32 "	8.1 mm	22.7 mm	Isolated Module	ITE (Commercial)	36 V	12 V	90 W	75 V	1	Active Low Enable	Eighth Brick
