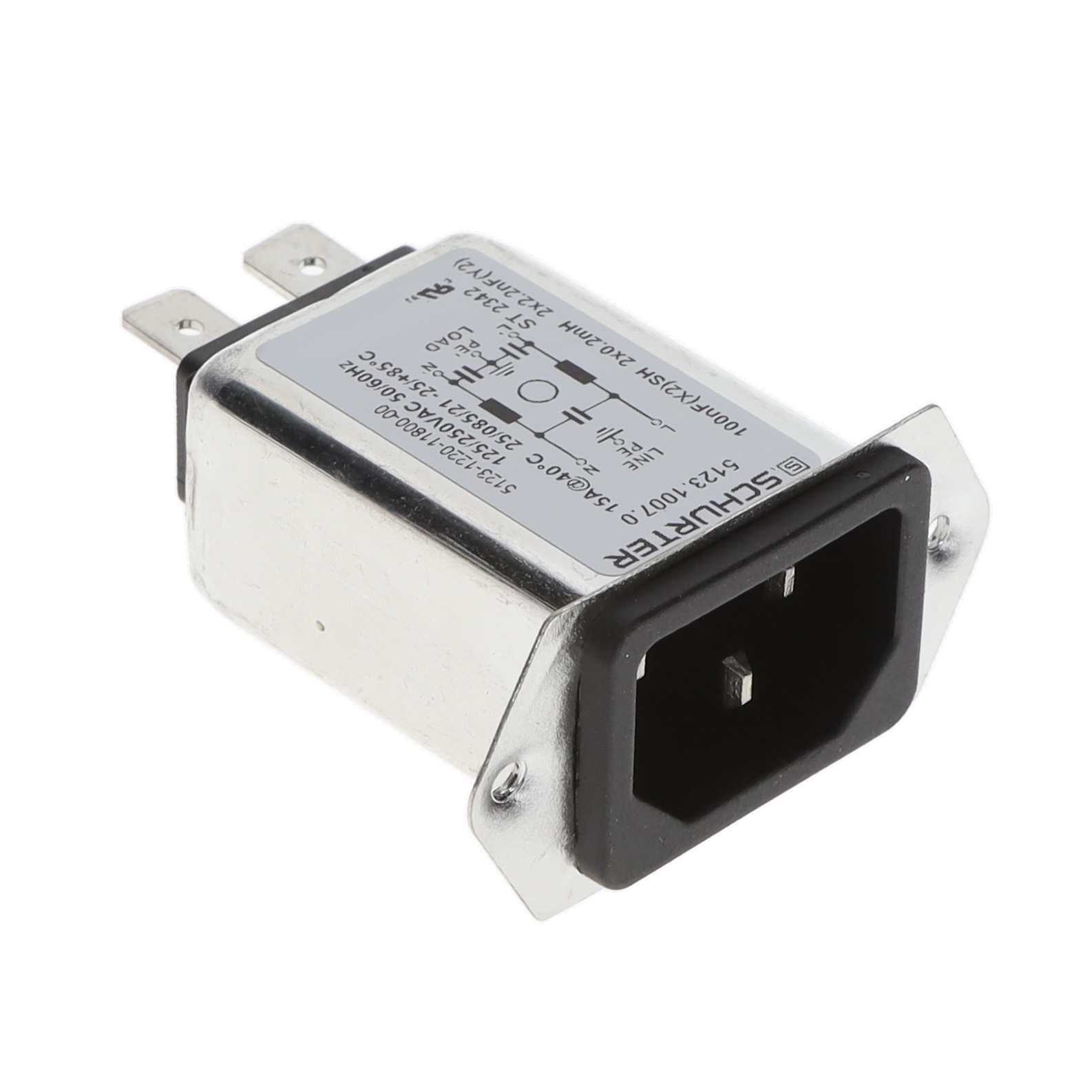

5123.1007 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
AC POWER ENTRY MODULES 5123 PEM WITH FILTER 15A
| Part | Accomodates a Fuse | Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating - Appliance Inlet | Connector Style | Filter Type | Ingress Protection | Approval Agency | Termination | Termination | Termination | Current Rating - Filter | Connector Type | Voltage Rating - Appliance Inlet | Panel Thickness | Panel Thickness | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Rear Side Mount Shielded | 29 mm | 21.5 mm | 15 A | IEC 320-C14 | Filtered (EMI RFI) - Commercial | IP40 | cURus ENEC | 6.3 mm | Quick Connect | 0.25 " | 15 A | Receptacle Male Blades - Module | 250 VAC | 8 mm | 0.315 in | UL94 V-0 | Flange Panel Mount |
