2351886 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

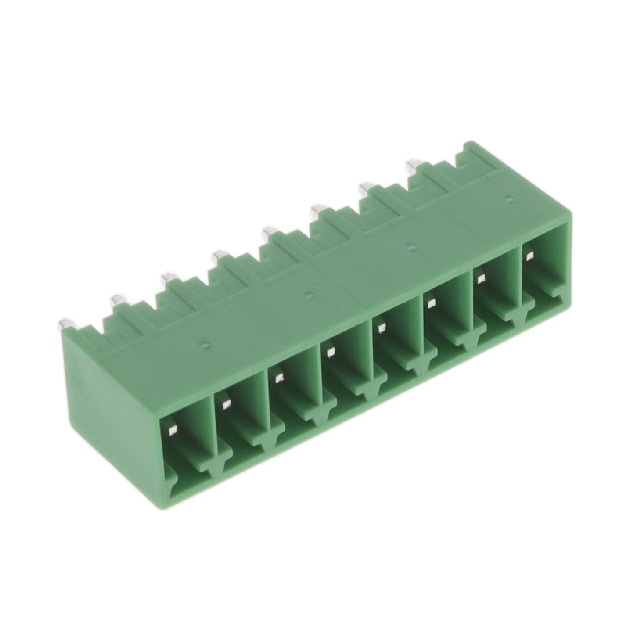

TERM BLOCK HDR 8POS 3.50MM
| Part | Voltage - UL | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Header Orientation | Insulation Height | Insulation Height | Number of Levels | Mounting Type | Contact Tail Length | Contact Tail Length | Positions Per Level | Material Flammability Rating | Pitch [x] | Pitch [x] | Number of Positions | Contact Mating Finish | Current - UL | Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 150 V | Copper Alloy | Green | -40 °C | 105 ░C | Solder | Vertical | 0.362 in | 9.2 mm | 1 | Through Hole | 3.4 mm | 0.134 in | 8 | UL94 V-0 | 3.5 mm | 0.138 in | 8 | Tin | 12 A | Header Male Pins Shrouded (4 Side) | |
 TE Connectivity Raychem Cable Protection | 150 V | Copper Alloy | Green | -40 °C | 105 ░C | Solder | Vertical | 0.362 in | 9.2 mm | 1 | Through Hole | 3.4 mm | 0.134 in | 4 | UL94 V-0 | 3.5 mm | 0.138 in | 4 | Tin | 12 A | Header Male Pins Shrouded (4 Side) | |

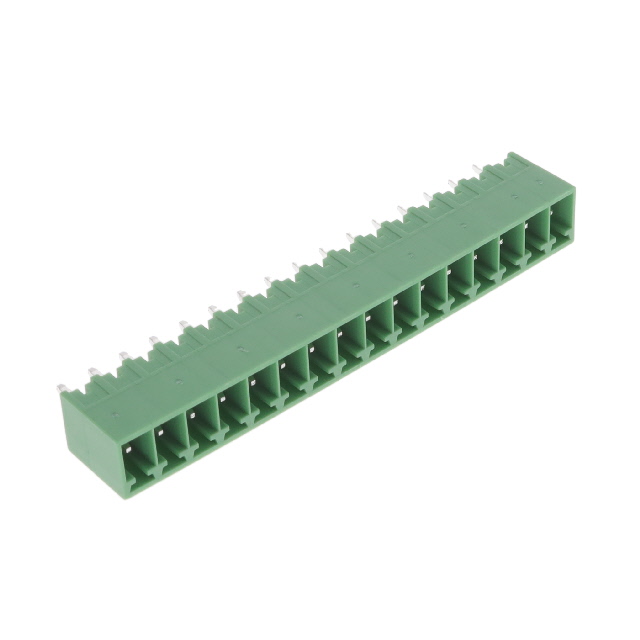

 TE Connectivity Raychem Cable Protection | 150 V | Copper Alloy | Green | -40 °C | 105 ░C | Solder | Vertical | 0.362 in | 9.2 mm | 1 | Through Hole | 3.4 mm | 0.134 in | 16 | UL94 V-0 | 3.5 mm | 0.138 in | Tin | 12 A | Header Male Pins Shrouded (4 Side) | 16 |
