CL-SB-23 Series

Manufacturer: Nidec Components Corporation

Catalog

SLIDE SWITCH, DP3T, 0.2A, 12VDC, SMD

Part	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Operating Force [Max]	Operating Force [Min]	Actuator Material	Voltage Rating - DC	Circuit	Switch Function	Contact Finish	Contact Material	Actuator Length [x]	Actuator Type	Termination Style	Current Rating (Amps)	Mounting Type	Contact Timing
Nidec Components Corporation CL-SB-23A-01T	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Silver	Copper	2 mm	Standard	J Lead	200 mA	Surface Mount	Non-Shorting (BBM)

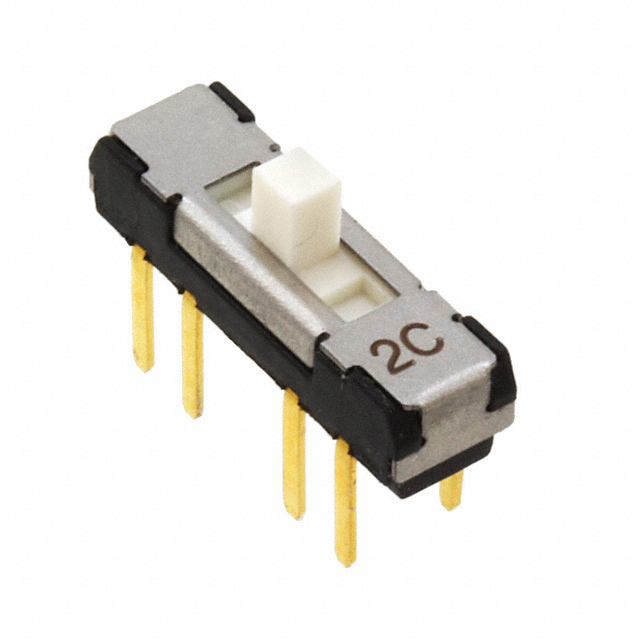

Nidec Components Corporation CL-SB-23C-02	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Gold	Copper	2 mm	Standard	PC Pin	200 mA	Through Hole	Non-Shorting (BBM)

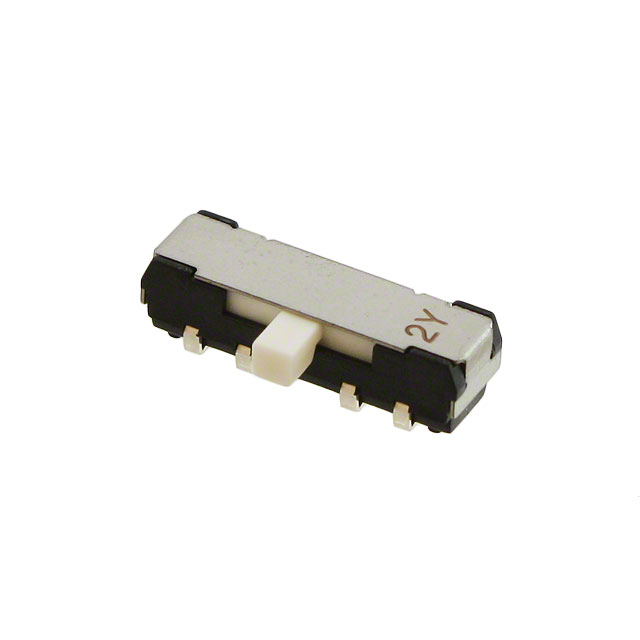

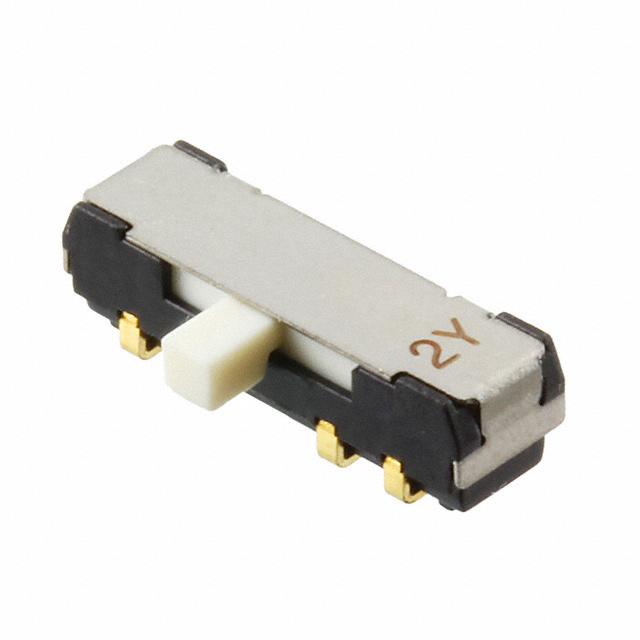

Nidec Components Corporation CL-SB-23A-11T	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Silver	Copper	2 mm	Standard	J Lead	200 mA	Right Angle Surface Mount	Non-Shorting (BBM)

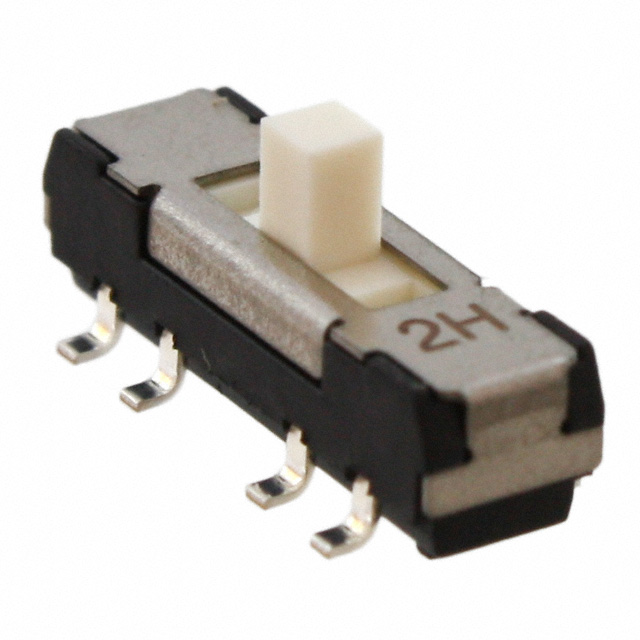

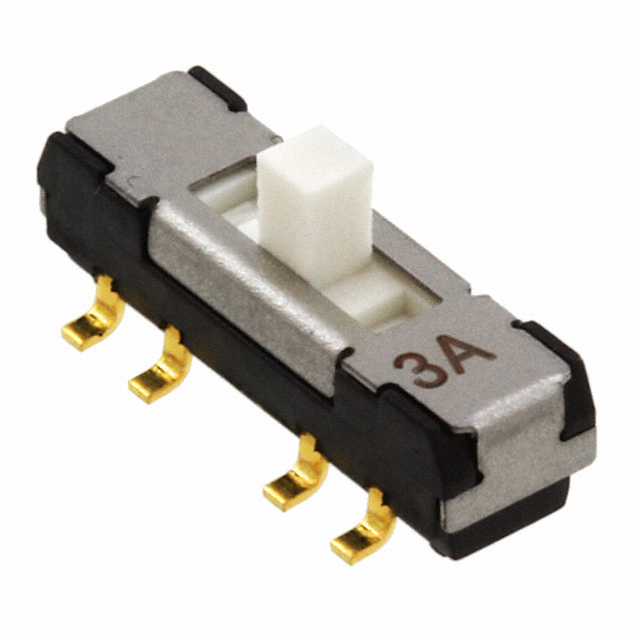

Nidec Components Corporation CL-SB-23B-01T	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Silver	Copper	2 mm	Standard	Gull Wing	200 mA	Surface Mount	Non-Shorting (BBM)

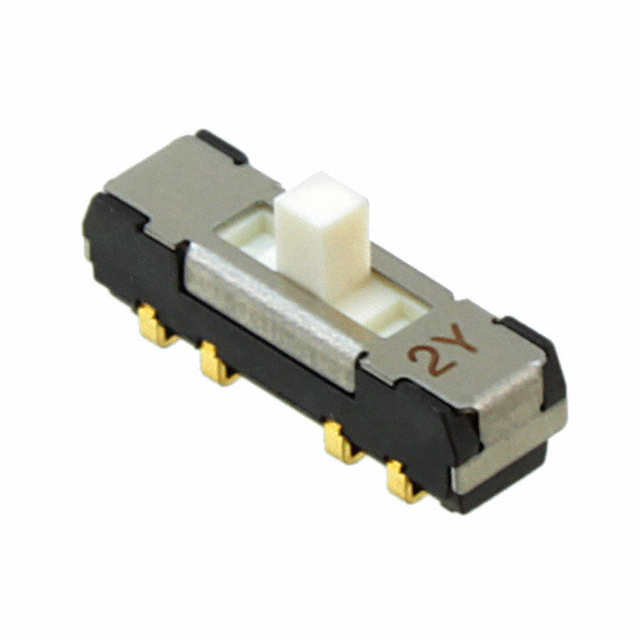

Nidec Components Corporation CL-SB-23A-02	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Gold	Copper	2 mm	Standard	J Lead	200 mA	Surface Mount	Non-Shorting (BBM)

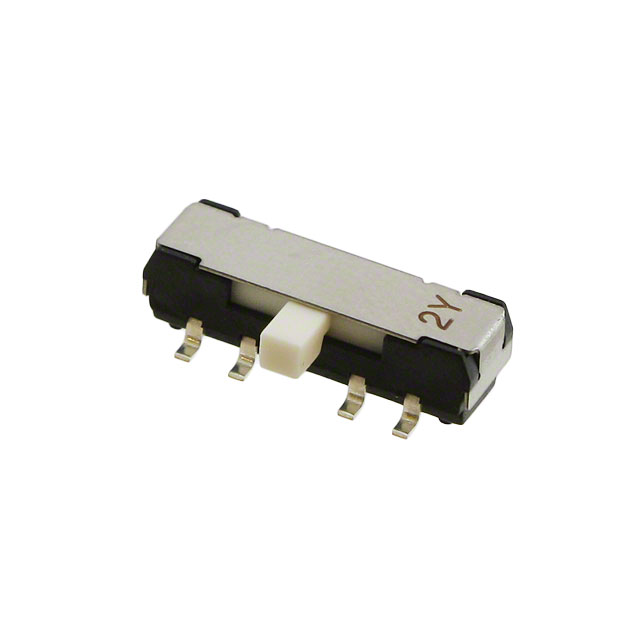

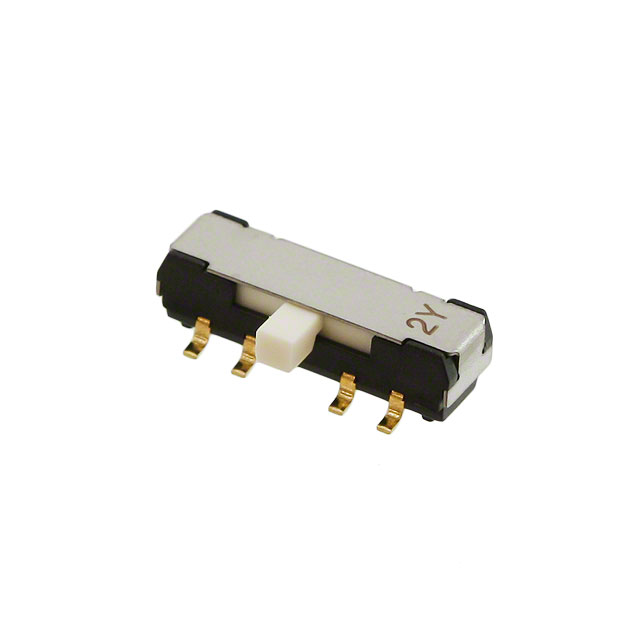

Nidec Components Corporation CL-SB-23B-11	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Silver	Copper	2 mm	Standard	Gull Wing	200 mA	Right Angle Surface Mount	Non-Shorting (BBM)

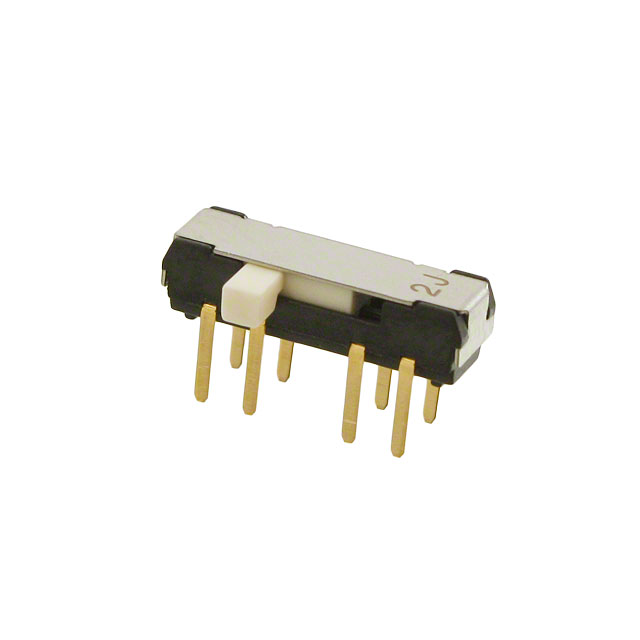

Nidec Components Corporation CL-SB-23C-12	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Gold	Copper	2 mm	Standard	PC Pin	200 mA	Right Angle Through Hole	Non-Shorting (BBM)
Nidec Components Corporation CL-SB-23B-11T	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Silver	Copper	2 mm	Standard	Gull Wing	200 mA	Right Angle Surface Mount	Non-Shorting (BBM)
Nidec Components Corporation CL-SB-23A-12	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Gold	Copper	2 mm	Standard	J Lead	200 mA	Right Angle Surface Mount	Non-Shorting (BBM)

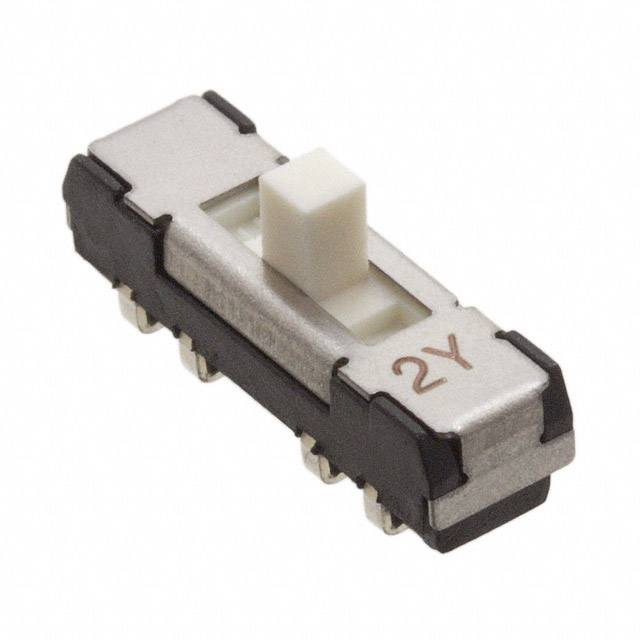

Nidec Components Corporation CL-SB-23A-01	10000 Cycles	85 °C	-40 C	2 mm	260 gf	160 gf	Polyamide (PA) Nylon	12 V	DP3T	On-On-On	Silver	Copper	2 mm	Standard	J Lead	200 mA	Surface Mount	Non-Shorting (BBM)
