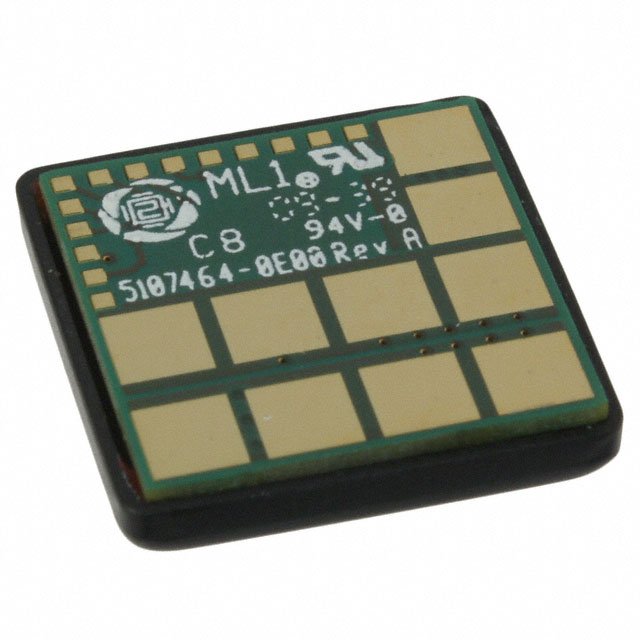

LGA10C Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
NON ISOLATED POL DC/DC CONVERTER, 50 W, 590 MV, 5.1 V, 10 A, ADJUSTABLE, MODULE
| Part | Power (Watts) | Control Features | Current - Output (Max) [Max] | Size / Dimension | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension | Size / Dimension [y] | Size / Dimension | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Features | Package / Case | Efficiency | Supplier Device Package | Applications | Type | Number of Outputs | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Frequency - Switching | Regulator Topology | Contents | Current - Output | Voltage - Output [Min] | Voltage - Output [Max] | Main Purpose | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 50 W | Active High Enable | 10 A | 16.5 mm | 0.65 in | 0.13 " | 3.3 mm | 0.65 " | 16.5 mm | 85 °C | -40 C | Surface Mount | 5.1 V | 0.59 V | 3 V | 14 V | OVP Remote On/Off SCP UVLO | 24-PowerBLGA Module | 92 % | 24-LGA (16.51x16.51) | ITE (Commercial) | Non-Isolated PoL Module | 1 | ||||||||||||
 ARTESYN / Advanced Energy | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | 1 MHz | Buck | Board(s) | 10 A | 0.59 V | 5.1 V | DC/DC Step Down | LGA10C |
