LDD-1200 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRIVER CC BUCK 2-30V 1.2A
| Part | Type | Dimming | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Topology | Number of Outputs | Voltage - Input (Min) [Min] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Output [Max] | Voltage - Output [Min] | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Efficiency | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Ratings | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

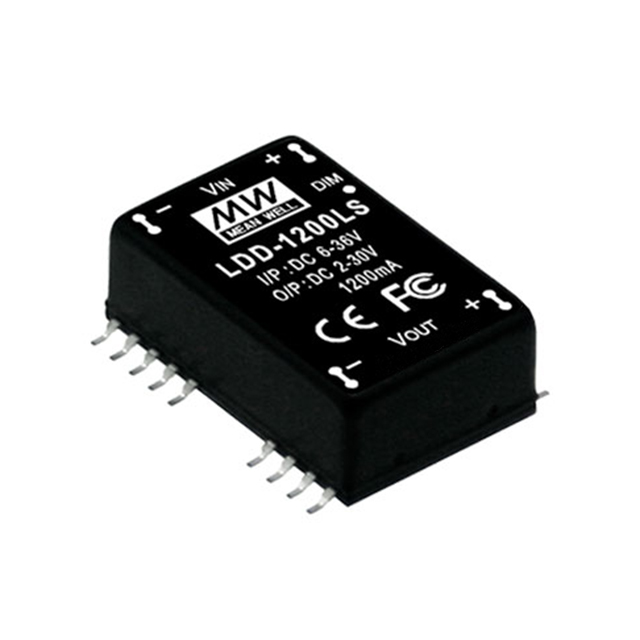

 MEAN WELL USA Inc. | Constant Current | Analog PWM | 1.2 A | 36 V | Buck | 1 | 6 V | Remote On/Off SCP | 71 °C | -40 C | 24-SMD Module 18 Leads | 30 VDC | 2 V | CE | 0.45 in | 0.8 " | 1.25 in | 31.8 mm | 20.3 mm | 11.4 mm | 95 % | Surface Mount | ||||

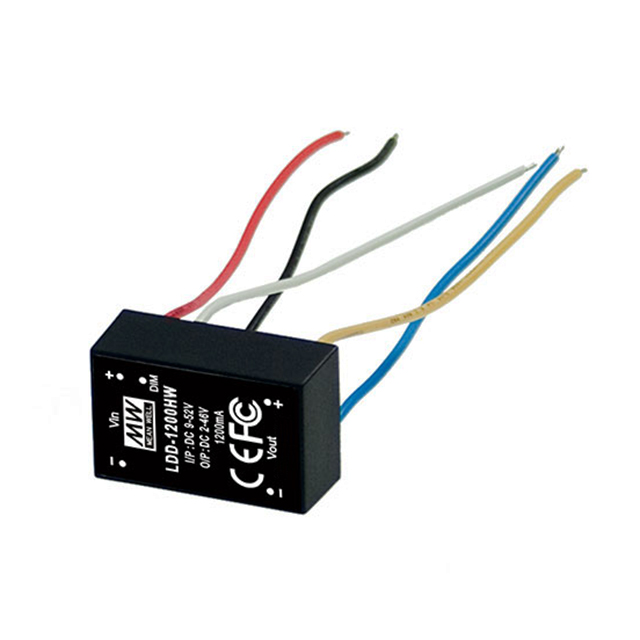

 MEAN WELL USA Inc. | Constant Current | PWM | 1.2 A | 52 V | Buck | 1 | 9 V | OTP Remote On/Off SCP | 85 °C | -40 C | 46 V | 2 V | CE | 0.48 " | 0.8 " | 1.25 in | 31.8 mm | 97 % | Chassis Mount | 12.2 mm | 20.3 mm | IP67 | Wire Leads | |||

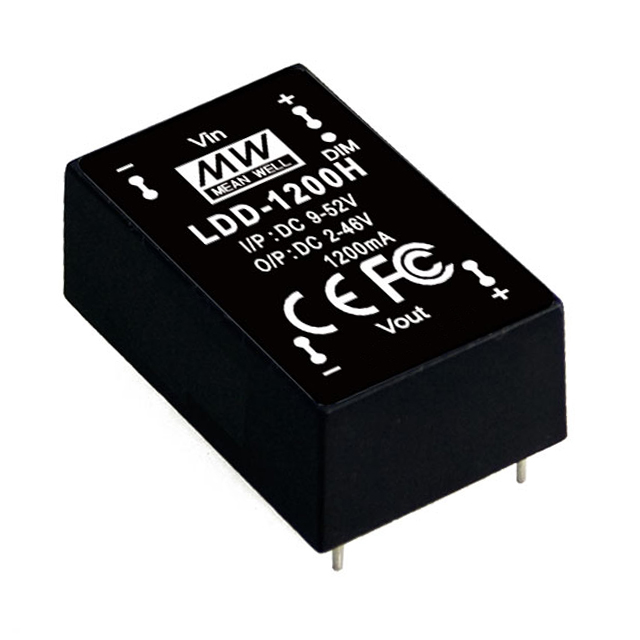

 MEAN WELL USA Inc. | Constant Current | PWM | 1.2 A | 52 V | Buck | 1 | 9 V | OTP Remote On/Off SCP | 85 °C | -40 C | 24-DIP Module 9 Leads | 46 V | 2 V | CE | 0.48 " | 0.8 " | 1.25 in | 31.8 mm | 97 % | Through Hole | 12.2 mm | 20.3 mm | ||||

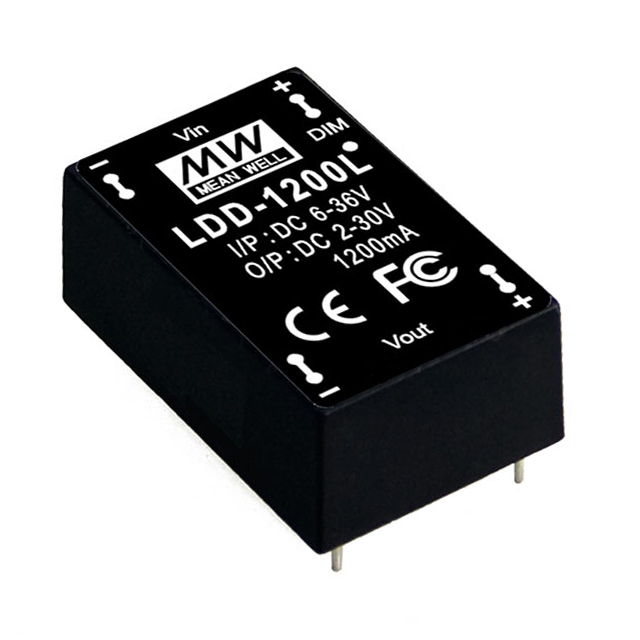

 MEAN WELL USA Inc. | Constant Current | Analog PWM | 1.2 A | 36 V | Buck | 1 | 6 V | Remote On/Off SCP | 71 °C | -40 C | 24-DIP Module 9 Leads | 30 VDC | 2 V | CE | 0.48 " | 0.8 " | 1.25 in | 31.8 mm | 95 % | Through Hole | 12.2 mm | 20.3 mm |
