2271122 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

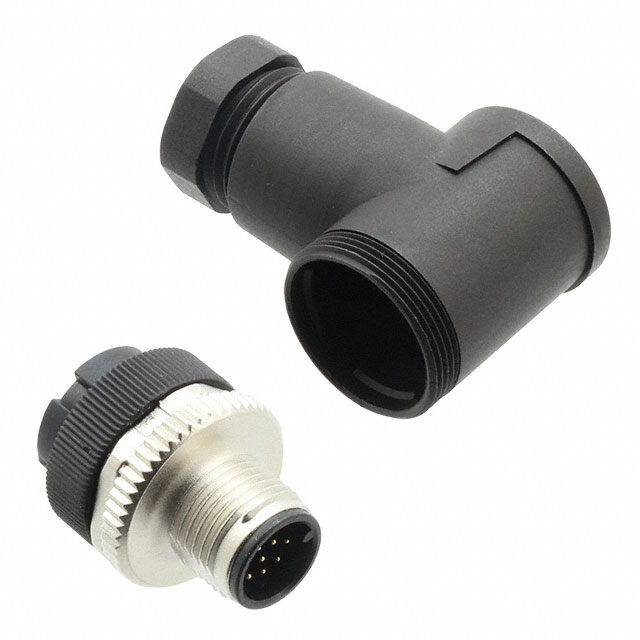

M12.MALE.A CODE.R/A.4P.PG9.(AU)
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Color | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Number of Positions | Shielding | Insert Material | Current Rating (Amps) | Voltage Rating | Features | Applications | Shell Size - Insert | Ingress Protection | Contact Finish - Mating | Termination | Shell Material | Contact Material | Primary Material | Backshell Material, Plating | Connector Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||
 TE Connectivity Raychem Cable Protection | 0.5 µm | 19.7 µin | A | Black Silver | 8 mm | 6 mm | 0.315 in | 0.236 in | 12 | Unshielded | Nylon Polyamide (PA) | 2 A | 30 VAC | Backshell | Industrial Automation | M12-12 | IP67 - Dust Tight Waterproof | Gold | Screw | Polybutylene Terephthalate (PBT) | Brass | Plastic | Polybutylene Terephthalate (PBT) | Male Pins Receptacle | Free Hanging (In-Line) Right Angle | 85 °C | -40 °C |
