MRF37 Series

Catalog

RF MOSFET LDMOS 32V NI860C3

Part	Gain	Package / Case	Current Rating	Package Name	Current - Test	Technology	Voltage - Test	Voltage - Rated	Frequency (Max)	Frequency (Min)	Power - Output	Mounting Type	Frequency
NXP USA Inc. MRF372R5	17 dB	NI-860C3	17 A	NI-860C3	800 mA	LDMOS	32 V	68 V	863 MHz	857 MHz	180 W	Chassis Mount

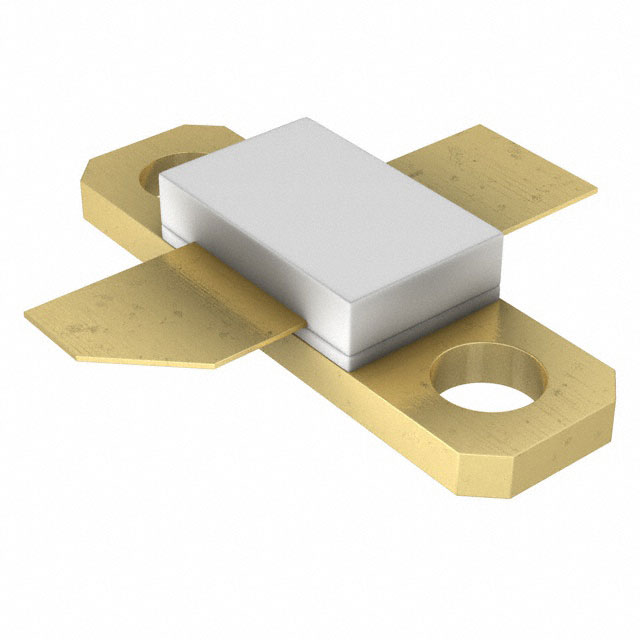

NXP USA Inc. MRF373ALR1	18.2 dB	NI-360		NI-360	200 mA	LDMOS	32 V	70 VAC			75 W	Chassis Mount	860 MHz
NXP USA Inc. MRF377HR3	18.2 dB	NI-860C3	17 A	NI-860C3	2 A	LDMOS	32 V	65 V			45 W	Chassis Mount	860 MHz
NXP USA Inc. MRF377HR5	18.2 dB	NI-860C3		NI-860C3	2 A	LDMOS	32 V	65 V			45 W	Chassis Mount	860 MHz
