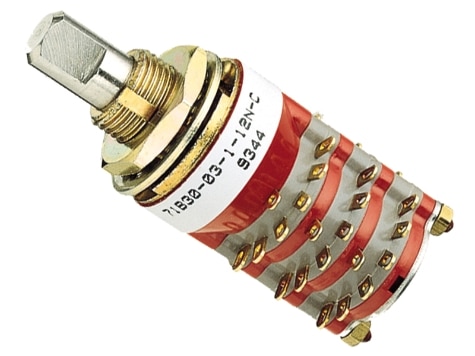

71MB30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
ROTARY SWITCHES ELECTRICALSWITCH ROTARY NOTOVER5AMP
| Part | Actuator Type | Number of Decks | Actuator Length [x] | Circuit per Deck | Voltage Rating - DC | Number of Positions | Voltage Rating - AC | Angle of Throw | Depth Behind Panel | Contact Material | Mounting Type | Number of Poles per Deck | Contact Timing | Current Rating (Amps) | Index Stops | Termination Style | Number of Decks [custom] | Depth Behind Panel [z] | Depth Behind Panel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Flatted (6.35mm Dia) | 2 | 9.53 mm | SP4T | 30 V | 4 | 115 V | 30 ° | 24.87 mm | Silver Alloy | Panel Mount Right Angle Through Hole | 1 | Shorting (MBB) | 250 mA | Fixed | PC Pin | |||
Grayhill Inc. | Flatted (6.35mm Dia) | 9.53 mm | SP5T | 30 V | 5 | 115 V | 30 ° | Silver Alloy | Panel Mount Right Angle Through Hole | 1 | Shorting (MBB) | 250 mA | Fixed | PC Pin | 1 | 19.33 mm | |||
 Grayhill Inc. | Flatted (6.35mm Dia) | 3 | 9.53 mm | DP6T | 30 V | 6 | 115 V | 30 ° | Silver Alloy | Panel Mount | 2 | Non-Shorting (BBM) | 250 mA | Fixed | Solder Lug | 30.4 mm | |||
 Grayhill Inc. | Flatted (6.35mm Dia) | 9.53 mm | DP6T | 30 V | 6 | 115 V | 30 ° | Silver Alloy | Panel Mount | 2 | Non-Shorting (BBM) | 250 mA | Fixed | Solder Lug | 1 | 19.33 mm | |||
Grayhill Inc. | Flatted (6.35mm Dia) | 2 | 9.53 mm | 3P4T | 30 V | 4 | 115 V | 30 ° | 24.87 mm | Silver Alloy | Panel Mount Right Angle Through Hole | 3 | Shorting (MBB) | 250 mA | Fixed | PC Pin | |||
Grayhill Inc. | Flatted (6.35mm Dia) | 9.53 mm | 4PDT | 30 V | 2 | 115 V | 30 ° | Silver Alloy | Panel Mount | Non-Shorting (BBM) | 250 mA | Fixed | Solder Lug | 1 | 19.33 mm | ||||
Grayhill Inc. | Flatted (6.35mm Dia) | 2 | 9.53 mm | 4PDT | 30 V | 2 | 115 V | 30 ° | Silver Alloy | Panel Mount | Non-Shorting (BBM) | 250 mA | Fixed | Solder Lug | 27.87 mm |
