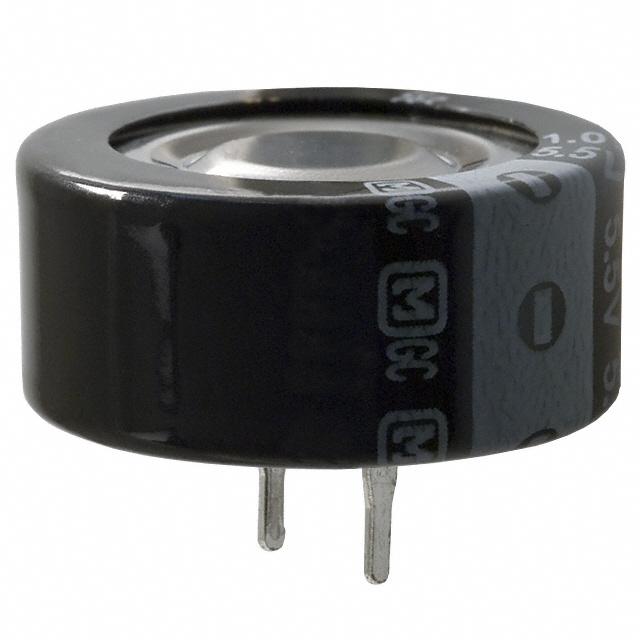

EEC-F5 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP 1F -20% +80% 5.5V T/H

Part	Tolerance [Max]	Tolerance [Min]	Termination	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Voltage - Rated	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEC-F5R5U105C	80 %	-20 %	PC Pins	Through Hole	5 mm	0.197 in	Radial Can	0.846 "	21.5 mm	1 F	5.5 V	1000 Hrs	8 mm	0.315 in	70 °C	-25 °C
Panasonic Industrial Automation Sales EEC-F5R5U105A	80 %	-20 %	PC Pins	Through Hole	5 mm	0.197 in	Radial Can	0.846 "	21.5 mm	1 F	5.5 V	1000 Hrs	8 mm	0.315 in	70 °C	-25 °C
Panasonic Industrial Automation Sales EEC-F5R5H474	80 %	-20 %	PC Pins	Through Hole	5 mm	0.197 in	Radial Can	0.846 "	21.5 mm	470 mF	5.5 V	1000 Hrs			85 °C	-25 °C	75 Ohm	9.5 mm	0.374 in
Panasonic Industrial Automation Sales EEC-F5R5H684	80 %	-20 %	PC Pins	Through Hole	5 mm	0.197 in	Radial Can	0.846 "	21.5 mm	680 mF	5.5 V	1000 Hrs			85 °C	-25 °C		9.5 mm	0.374 in
Panasonic Industrial Automation Sales EEC-F5R5H105N	80 %	-20 %	PC Pins	Through Hole	5 mm	0.197 in	Radial	0.846 "	21.5 mm	1 F	5.5 V	1000 Hrs			85 °C	-40 °C		9.5 mm	0.374 in
Panasonic Industrial Automation Sales EEC-F5R5U104	80 %	-20 %	PC Pins	Through Hole	5 mm	0.197 in	Radial Can	0.531 in	13.5 mm	0.1 F	5.5 V	1000 Hrs	7.5 mm	0.295 in	70 °C	-25 °C	75 Ohm
Panasonic Industrial Automation Sales EEC-F5R5H104A	80 %	-20 %	PC Pins	Through Hole	5 mm	0.197 in	Radial Can	0.531 in	13.5 mm	0.1 F	5.5 V	1000 Hrs			85 °C	-25 °C	100 Ohm	9.5 mm	0.374 in
