1445084 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 4POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Termination	Pitch - Mating	Pitch - Mating	Style	Insulation Color	Contact Material	Connector Type	Insulation Height [z]	Insulation Height [z]	Insulation Material	Number of Positions	Features	Number of Rows	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Contact Shape	Contact Length - Post	Contact Length - Post	Shrouding	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Material Flammability Rating

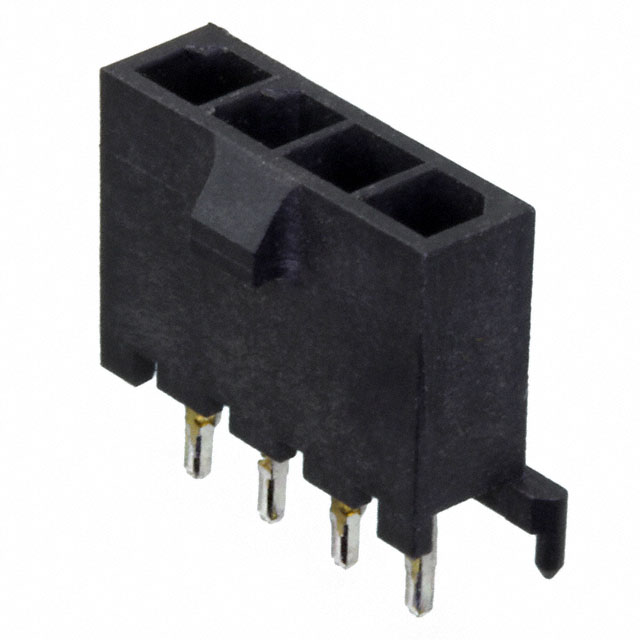

TE Connectivity AMP Connectors 1445084-4	2.54 µm	100 µin	General Purpose	Press-Fit Solder	3 mm	0.118 in	Board to Cable/Wire	Black	Brass	Header	9.25 mm	0.364 in	Nylon Polyamide (PA)	4	Board Guide	1	250 V	-40 C	105 ░C	Locking Ramp	Through Hole	Varies by Wire Gauge	Tin-Lead	Square	0.125 in	3.18 mm	Shrouded - 4 Wall	All	0.38 µm	15 µin	Gold	Male Pin	UL94 V-0

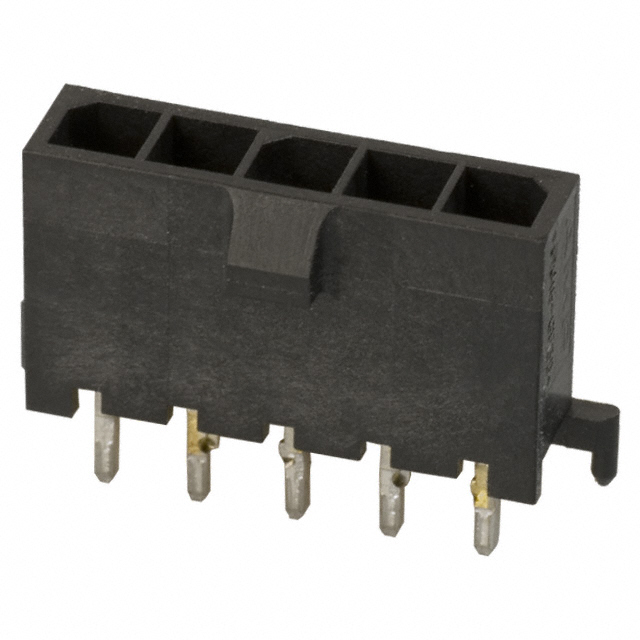

TE Connectivity AMP Connectors 1445084-5	2.54 µm	100 µin	General Purpose	Press-Fit Solder	3 mm	0.118 in	Board to Cable/Wire	Black	Brass	Header	9.25 mm	0.364 in	Nylon Polyamide (PA)	5	Board Guide	1	250 V	-40 C	105 ░C	Locking Ramp	Through Hole	Varies by Wire Gauge	Tin-Lead	Square	0.125 in	3.18 mm	Shrouded - 4 Wall	All	0.38 µm	15 µin	Gold	Male Pin	UL94 V-0

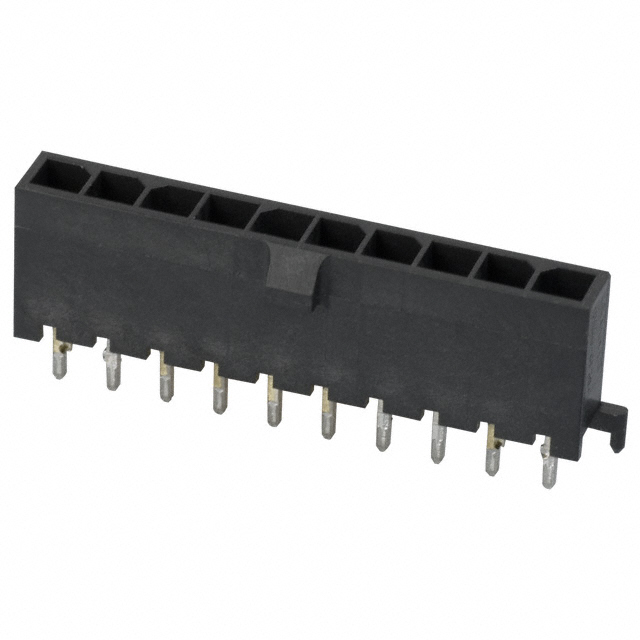

TE Connectivity AMP Connectors 3-1445084-0	2.54 µm	100 µin	General Purpose	Press-Fit Solder	3 mm	0.118 in	Board to Cable/Wire	Black	Brass	Header	9.25 mm	0.364 in	Nylon Polyamide (PA)	10	Board Guide	1	250 V	-40 C	105 ░C	Locking Ramp	Through Hole	Varies by Wire Gauge	Tin	Square	0.125 in	3.18 mm	Shrouded - 4 Wall	All	0.38 µm	15 µin	Gold	Male Pin	UL94 V-0
