87368 Series

Manufacturer: Molex

Catalog

CONN RCPT 40P 0.079 GOLD SMD R/A

Part	Features	Applications	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Style	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Termination	Contact Shape	Number of Positions Loaded	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions

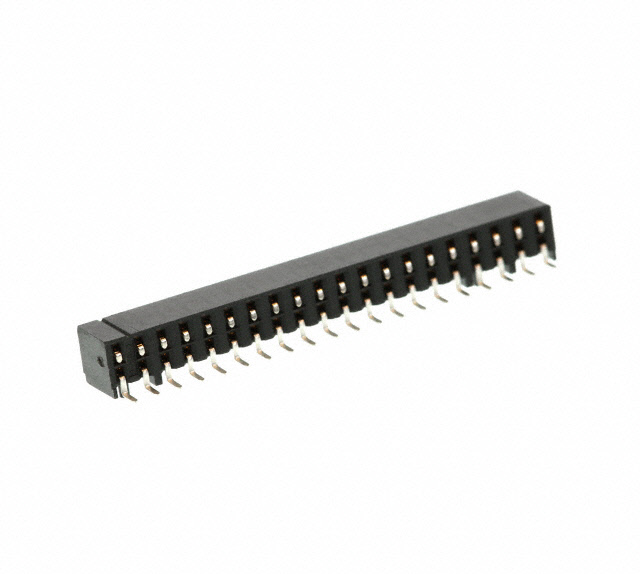

Molex 0873684024	Board Guide	Automotive General Purpose Telecommunications	40	15 µin	0.38 µm	2	Surface Mount Right Angle	0.079 in	2 mm	125 VAC	Female Socket	4.9 mm	0.193 in	2.54 µm	100 µin	Gold	Board to Board Cable	Receptacle	0.079 in	2 mm	Tin	Solder	Square	All	Black	105 ░C	-55 °C	Push-Pull

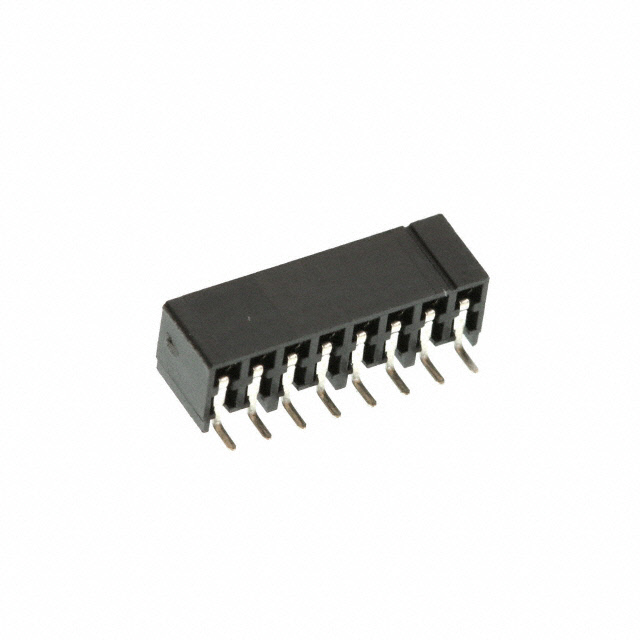

Molex 0873681624	Board Guide	Automotive General Purpose Telecommunications		15 µin	0.38 µm	2	Surface Mount Right Angle	0.079 in	2 mm	125 VAC	Female Socket	4.9 mm	0.193 in	2.54 µm	100 µin	Gold	Board to Board Cable	Receptacle	0.079 in	2 mm	Tin	Solder	Square	All	Black	105 ░C	-55 °C	Push-Pull	16

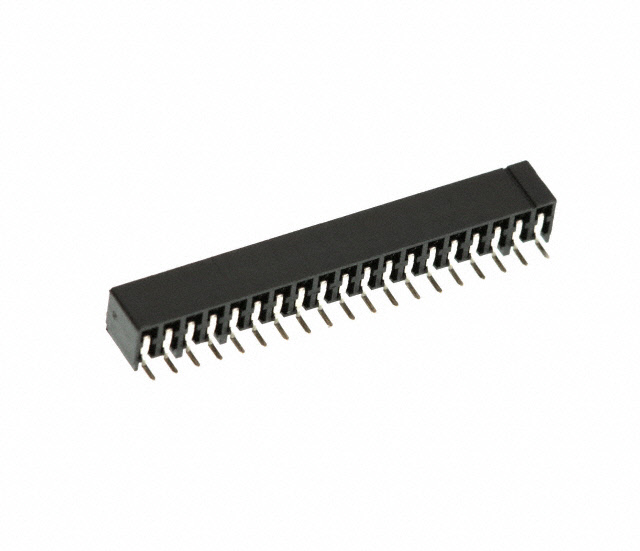

Molex 0873683824	Board Guide	Automotive General Purpose Telecommunications	38	15 µin	0.38 µm	2	Surface Mount Right Angle	0.079 in	2 mm	125 VAC	Female Socket	4.9 mm	0.193 in	2.54 µm	100 µin	Gold	Board to Board Cable	Receptacle	0.079 in	2 mm	Tin	Solder	Square	All	Black	105 ░C	-55 °C	Push-Pull

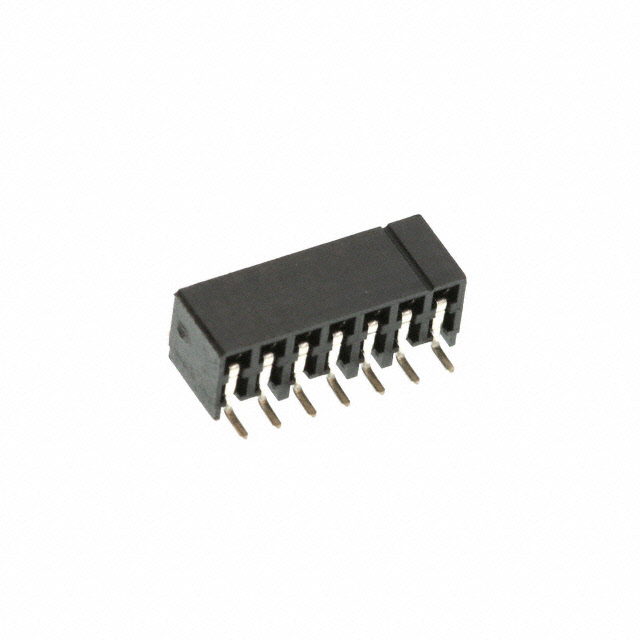

Molex 0873681424	Board Guide	Automotive General Purpose Telecommunications	14	15 µin	0.38 µm	2	Surface Mount Right Angle	0.079 in	2 mm	125 VAC	Female Socket	4.9 mm	0.193 in	2.54 µm	100 µin	Gold	Board to Board Cable	Receptacle	0.079 in	2 mm	Tin	Solder	Square	All	Black	105 ░C	-55 °C	Push-Pull

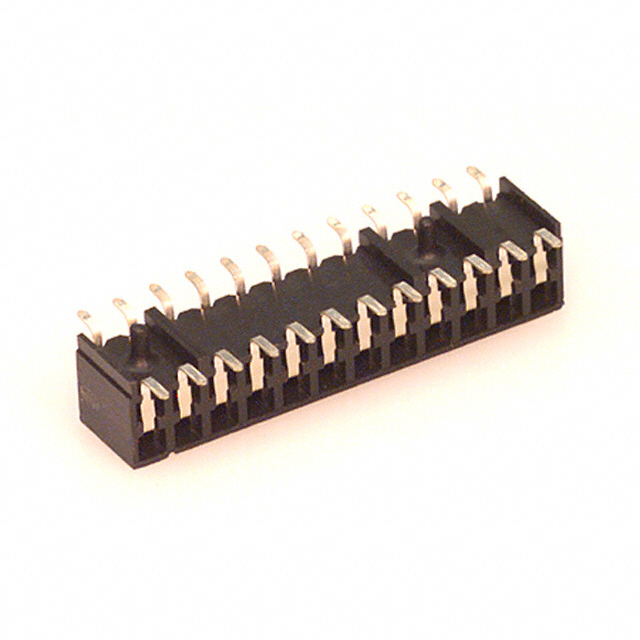

Molex 0873682424	Board Guide	Automotive General Purpose Telecommunications	24	15 µin	0.38 µm	2	Surface Mount Right Angle	0.079 in	2 mm	125 VAC	Female Socket	4.9 mm	0.193 in	2.54 µm	100 µin	Gold	Board to Board Cable	Receptacle	0.079 in	2 mm	Tin	Solder	Square	All	Black	105 ░C	-55 °C	Push-Pull

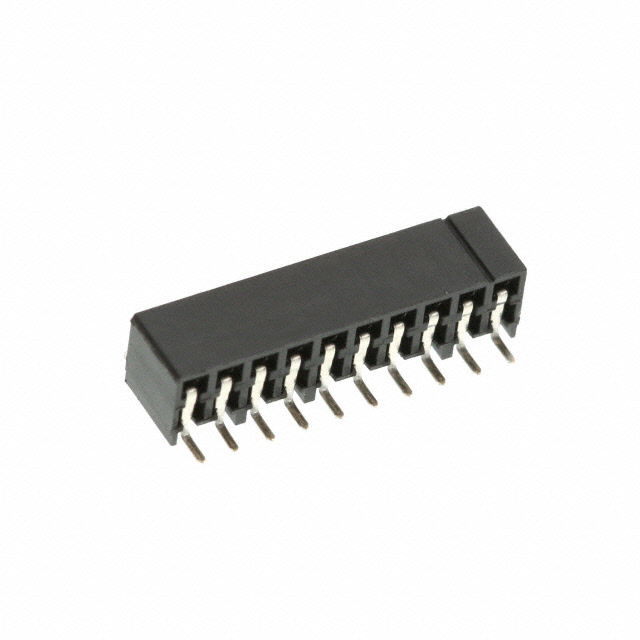

Molex 0873682024	Board Guide	Automotive General Purpose Telecommunications	20	15 µin	0.38 µm	2	Surface Mount Right Angle	0.079 in	2 mm	125 VAC	Female Socket	4.9 mm	0.193 in	2.54 µm	100 µin	Gold	Board to Board Cable	Receptacle	0.079 in	2 mm	Tin	Solder	Square	All	Black	105 ░C	-55 °C	Push-Pull
