HVGC-480 Series

Catalog

LED POWER SUPPLIES 480W 137-343V

Part	Mounting Type	Features	Approval Agency	Topology	Voltage - Input (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Current - Output (Max) [Max]	Dimming	Voltage - Isolation	Power (Watts)	Ratings	Termination Style

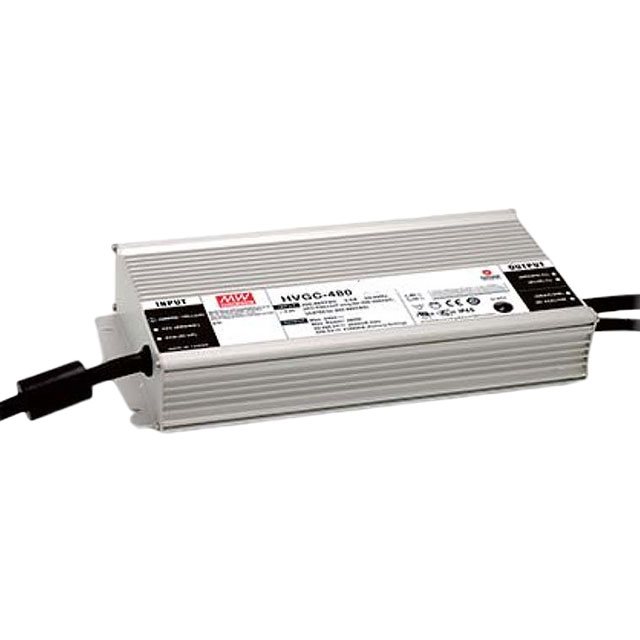

MEAN WELL USA Inc. HVGC-480-L-AB	Chassis Mount	OTP OVP SCP	CB CCC CE cURus EAC ENEC FCC RCM	AC DC Converter	528 VAC	Constant Current	90 °C	-40 C	180 VAC	94.5 %	343 V	137 V	125 mm	9.26 in	43.8 mm	235.2 mm	4.92 in	1.72 "	1	1.4 A	PWM	3750 VDC	480 W	IP67	Wire Leads
MEAN WELL USA Inc. HVGC-480-M-AB	Chassis Mount	OTP OVP SCP	CB CCC CE cURus EAC ENEC FCC RCM	AC DC Converter	528 VAC	Constant Current	90 °C	-40 C	180 VAC	94.5 %	228.5 V	92 V	125 mm	9.26 in	43.8 mm	235.2 mm	4.92 in	1.72 "	1	2.1 A	PWM	3750 VDC	480 W	IP67	Wire Leads
MEAN WELL USA Inc. HVGC-480-H-AB	Chassis Mount	OTP OVP SCP	CB CCC CE cURus EAC ENEC FCC RCM	AC DC Converter	528 VAC	Constant Current	90 °C	-40 C	180 VAC	94.5 %	171.5 V	68 V	125 mm	9.26 in	43.8 mm	235.2 mm	4.92 in	1.72 "	1	2.8 A	PWM	3750 VDC	480 W	IP67	Wire Leads
