324165 Series

Catalog

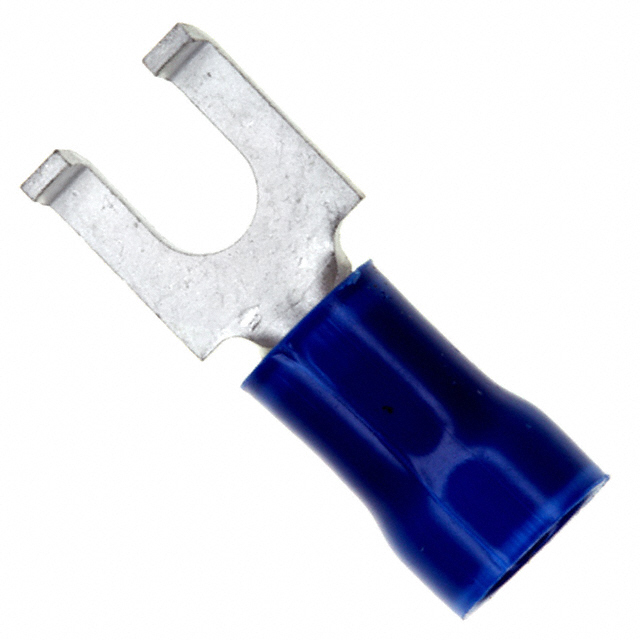

TERMINAL,PG SPD FLG 16-14 6

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish	Color	Termination	Insulation	Features	Mounting Type	Length - Termination	Length - Termination	Stud/Tab Size	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges	Width - Outer Edges [custom]	Contact Material	Terminal Type	Material - Insulation
TE Connectivity Raychem Cable Protection 8-324165-1	0.78 in	19.81 mm	Tin	Blue	Crimp	Insulated	Serrated Termination	Free Hanging (In-Line)	10.57 mm	0.416 in	6 Stud	4.9 mm	3 mm	0.193 in	0.118 in	3.68 mm	0.145 in	0.203 in	5.16 mm	7.47 mm	0.294 in	Copper	Flanged	Poly-Vinyl Chloride (PVC)
