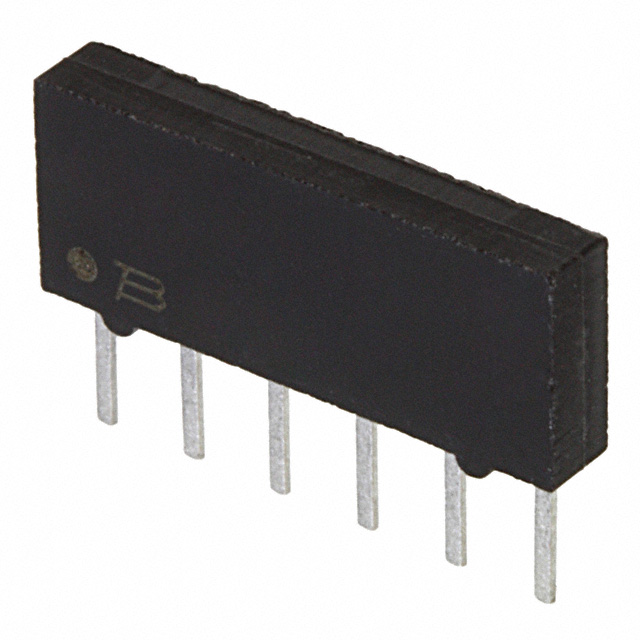

4306M Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES NETWORK 8 RES MULT OHM 6SIP
| Part | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Circuit Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Resistors | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Power Per Element | Number of Pins | Resistor-Ratio-Drift | Temperature Coefficient | Supplier Device Package | Tolerance | Resistance (Ohms) | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Dual Terminator | -55 C | 125 °C | Through Hole | 8 | 6.35 mm | 0.25 in | 250 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | ||||
 Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | Isolated | -55 C | 125 °C | Through Hole | 3 | 6.35 mm | 0.25 in | 400 mW | 6 | 50 ppm/°C | 250 ppm/°C | 6-SIP | ±1Ohm | 33 Ohms | |||
Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Isolated | -55 C | 125 °C | Through Hole | 3 | 6.35 mm | 0.25 in | 400 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | 5.1 kOhms | |||
 Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Bussed | -55 C | 125 °C | Through Hole | 5 | 6.35 mm | 0.25 in | 250 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | 10k | |||
Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Bussed | -55 C | 125 °C | Through Hole | 5 | 6.35 mm | 0.25 in | 250 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | 1.2 kOhms | |||
Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Isolated | -55 C | 125 °C | Through Hole | 3 | 6.35 mm | 0.25 in | 400 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | 470k | |||
Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Isolated | -55 C | 125 °C | Through Hole | 3 | 6.35 mm | 0.25 in | 400 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | 100k | |||
Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Bussed | -55 C | 125 °C | Through Hole | 5 | 6.35 mm | 0.25 in | 250 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | 1.5 k | |||
Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Bussed | -55 C | 125 °C | Through Hole | 5 | 6.35 mm | 0.25 in | 250 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | 220 Ohms | |||
Bourns Inc. | 6-SIP | 0.085 in | 0.584 in | 2.16 mm | 14.83 mm | 2 % | Bussed | -55 C | 125 °C | Through Hole | 5 | 6.35 mm | 0.25 in | 250 mW | 6 | 50 ppm/°C | 100 ppm/°C | 6-SIP | 4.7 kOhms |
