MCT8315Z Series
40-V max, 4-A peak, sensored trapezoidal control 3-phase BLDC motor driver
Manufacturer: Texas Instruments
Catalog
40-V max, 4-A peak, sensored trapezoidal control 3-phase BLDC motor driver
Beta
⌘K
40-V max, 4-A peak, sensored trapezoidal control 3-phase BLDC motor driver
40-V max, 4-A peak, sensored trapezoidal control 3-phase BLDC motor driver
40-V max, 4-A peak, sensored trapezoidal control 3-phase BLDC motor driver
| Part | Function | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Output Configuration | Technology | Current - Output | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Motor Type - AC, DC | Applications | Motor Type - Stepper |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

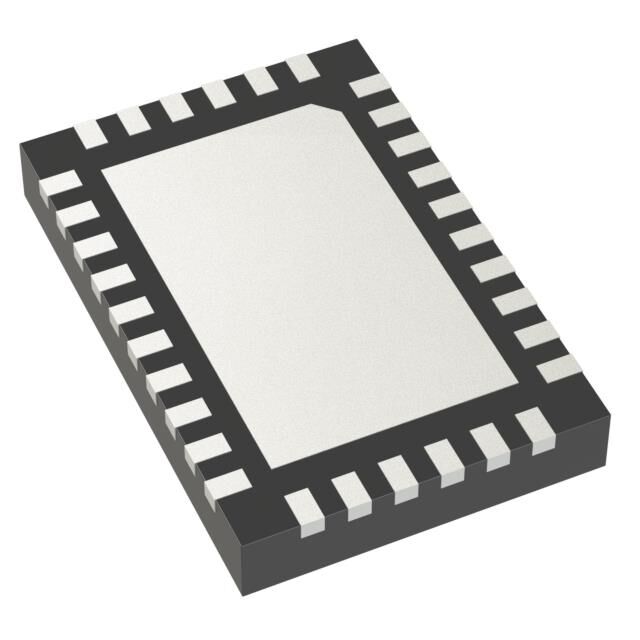

 Texas Instruments | Driver - Fully Integrated Control and Power Stage | Surface Mount Wettable Flank | -40 °C | 125 °C | 35 V | 4.5 V | Half Bridge (3) | NMOS | 4 A | 32-WQFN (6x4) | 4.5 V | 35 V | Brushless DC (BLDC) | General Purpose | Multiphase |
