W3G200 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

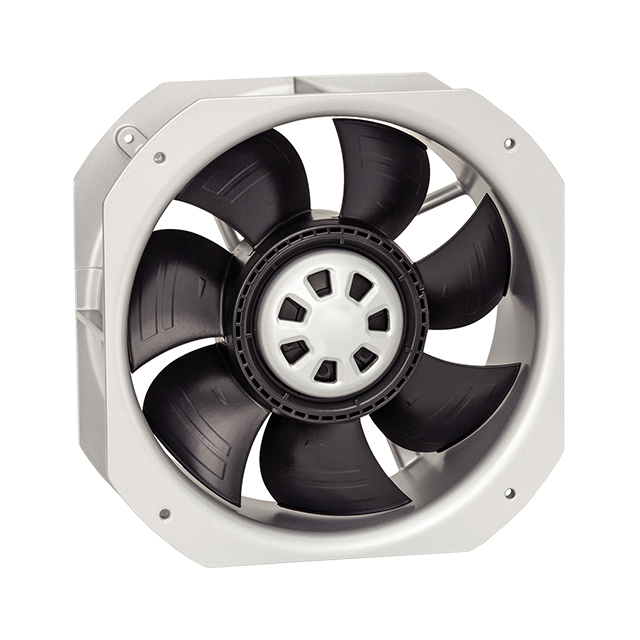

AC FAN AXIAL BALL BEARING 115V 100V TO 130V 623CFM 225 X 225 X 80MM
| Part | Material - Blade | Material - Frame | Air Flow | Air Flow | Voltage Range [Min] | Voltage Range [Max] | Static Pressure | Static Pressure | Termination | Size / Dimension [x] | Size / Dimension [z] | RPM | Approval Agency | Width [y] | Features | Power (Watts) | Bearing Type | Ingress Protection | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polypropylene (PP) | Aluminum | 623 CFM | 17.44 m³/min | 100 VAC | 130 VAC | 0.38 in H2O | 94.6 Pa | Terminal Block | 225 mm | 225 mm | 2900 RPM | CE cURus VDE | 80 mm | Electronic Commutation (EC) | 65 W | Ball | IP54 - Dust Protected Water Resistant | Tubeaxial | -25 °C | 60 °C | 115 VAC | 3.7 lbs | 1.7 kg |
