2020 Series

Catalog

COAX - AUTOMOTIVE

Part	Jacket (Insulation) Material	Dielectric Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Operating Temperature	Wire Gauge	VoP, Velocity of Propagation	Impedance	Shield Type	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Length [x]	Length [x]	Length	Length	Jacket Color	Spool Size	Spool Size	Length	Shield Coverage
TE Connectivity Raychem Cable Protection 2020D1301-9	Thermorad® F	Rayfoam® M	0.295 in	7.49 mm	Copper Tinned	125 °C	20 AWG	75	120 Ohms	Braid	Copper Tinned	19 Strands	32 AWG	2.77 mm	0.109 in	Twinaxial

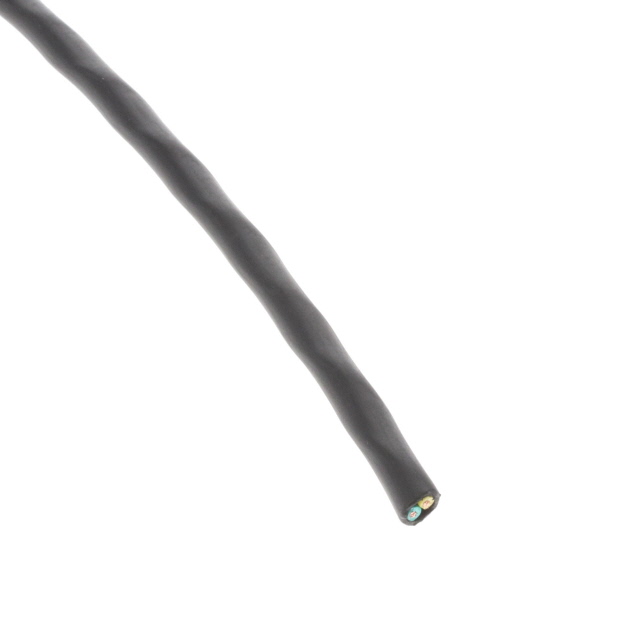

TE Connectivity Raychem Cable Protection 2020D0309-0	Thermorad® F	Polyolefin (PO)	0.226 in	5.74 mm	Copper Bare		20 AWG		120 Ohms			7	28 AWG	2.11 mm	0.083 "	Twinaxial	1 ft 100 ft	30.48 m 300 mm	7.62 m 15.24 m	25 ft 50 ft	Black	5000 '	1524 m	Enter Number of Feet in Order Quantity
TE Connectivity Raychem Cable Protection 2020E0811-0	Zerohal™		0.289 in	7.34 mm	Copper Tinned		20 AWG	78	120 Ohms	Braid	Copper Tinned	19 Strands	32 AWG	2.77 mm	0.109 in	Twinaxial					Black
TE Connectivity Raychem Cable Protection 2020F8421-9	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene Propylene (FEP)	0.298 "	7.57 mm	Copper Tinned		20 AWG	78	120 Ohms	Double Braid	Copper Tinned	19 Strands	32 AWG	2.84 mm	0.112 in	Twinaxial									85 %
