317-029 Series
Manufacturer: EDAC Inc.
Beta
⌘K

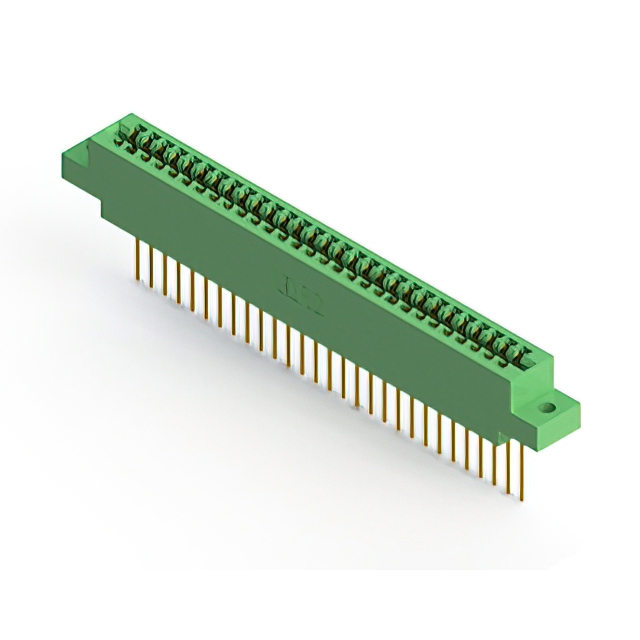

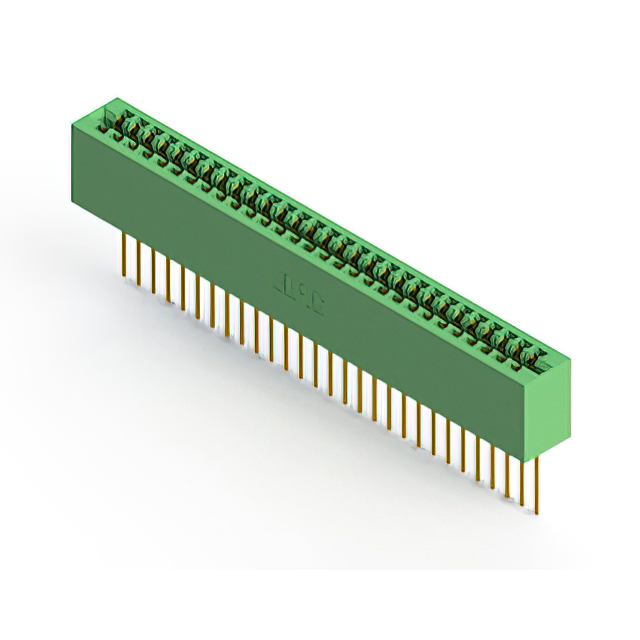

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 29 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch | Pitch | Contact Type | Contact Finish | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Card Type | Color | Number of Positions/Bay/Row | Flange Feature | Contact Material | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Gender | Read Out | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | -65 ░C | 125 °C | Wire Wrap | 3.96 mm | 0.156 in | Cantilever | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Green | 29 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 58 | 0.25 Ám | 10 Áin | Female | Single | Card Guides | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | -65 ░C | 125 °C | Wire Wrap | 3.96 mm | 0.156 in | Cantilever | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Green | 29 | Copper Alloy | 58 | 0.25 Ám | 10 Áin | Female | Single | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | -65 ░C | 125 °C | Wire Wrap | 3.96 mm | 0.156 in | Cantilever | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Green | 29 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 58 | 0.25 Ám | 10 Áin | Female | Single | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | -65 ░C | 125 °C | Wire Wrap | 3.96 mm | 0.156 in | Cantilever | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Green | 29 | Copper Alloy | 58 | 0.25 Ám | 10 Áin | Female | Single | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | -65 ░C | 125 °C | Wire Wrap | 3.96 mm | 0.156 in | Cantilever | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Green | 29 | Copper Alloy | 58 | 0.25 Ám | 10 Áin | Female | Single | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | -65 ░C | 125 °C | Wire Wrap | 3.96 mm | 0.156 in | Cantilever | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Green | 29 | Floating Bobbin Flush Mount | Copper Alloy | 58 | 0.25 Ám | 10 Áin | Female | Single | 0.116 " | 2.95 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | -65 ░C | 125 °C | Wire Wrap | 3.96 mm | 0.156 in | Cantilever | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Non Specified - Dual Edge | Green | 29 | M3 Threaded Insert Top Mount Opening | Copper Alloy | 58 | 0.25 Ám | 10 Áin | Female | Single |
