ASMF-PWG2 Series

Catalog

LED COOL WHITE 6500K 3030

Part	Mounting Type	Viewing Angle	Lumens/Watt @ Current - Test	Current - Test	Current - Max [Max]	Supplier Device Package	Thermal Resistance of Package [diameter]	Package / Case	Package / Case	CCT (K)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test	Voltage - Forward (Vf) (Typ)
Broadcom Limited ASMF-PWG2-N45H0	Surface Mount	120 °	111 lm/W	150 mA	180 mA	3030	10 °C/W	1212	3030 Metric	6500 K	0.8 mm	0.031 "	Cool White	0.118 in	3 mm	3 mm	0.118 in	80	105 lm	6.3 V
Broadcom Limited ASMF-PWG2-N35A0	Surface Mount	120 °	106 lm/W	150 mA	180 mA	3030	10 °C/W	1212	3030 Metric	2700 K	0.8 mm	0.031 "	Warm White	0.118 in	3 mm	3 mm	0.118 in	80	100 lm	6.3 V
Broadcom Limited ASMF-PWG2-N45F0	Surface Mount	120 °	111 lm/W	150 mA	180 mA	3030	10 °C/W	1212	3030 Metric	5700 K	0.8 mm	0.031 "	Cool White	0.118 in	3 mm	3 mm	0.118 in	80	105 lm	6.3 V

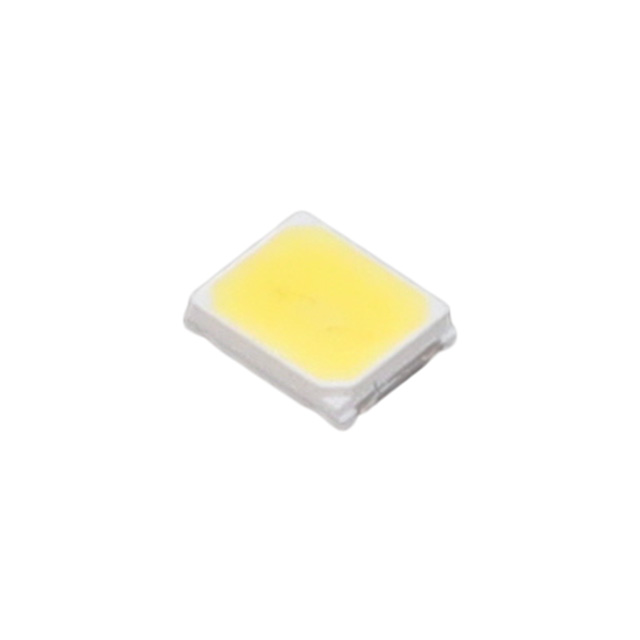

Broadcom Limited ASMF-PWG2-N45D0	Surface Mount	120 °	111 lm/W	150 mA	180 mA	3030	10 °C/W	1212	3030 Metric	4000 K	0.8 mm	0.031 "	Neutral White	0.118 in	3 mm	3 mm	0.118 in	80	105 lm	6.3 V

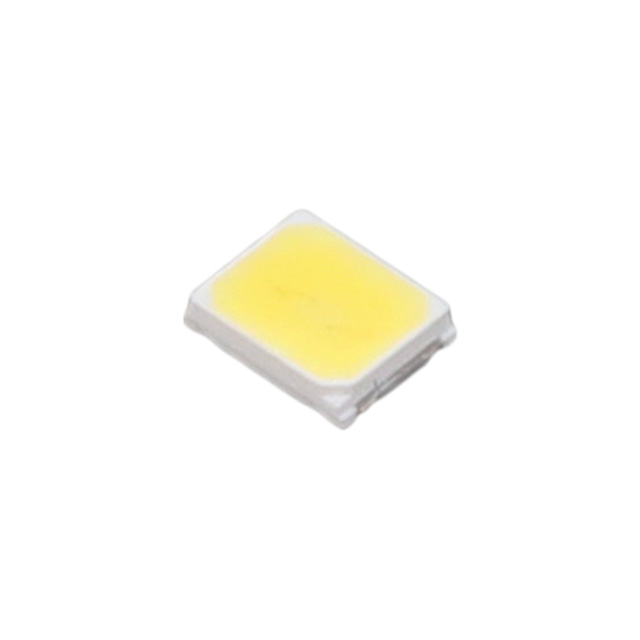

Broadcom Limited ASMF-PWG2-N45E0	Surface Mount	120 °	111 lm/W	150 mA	180 mA	3030	10 °C/W	1212	3030 Metric	5000 K	0.8 mm	0.031 "	Cool White	0.118 in	3 mm	3 mm	0.118 in	80	105 lm	6.3 V
