833-054 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 54POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Mounting Type	Color	Card Type	Number of Rows [custom]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Pitch	Pitch	Contact Type	Termination	Number of Positions	Contact Material	Flange Feature	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 833-054-521-208	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Solder	54	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Female
EDAC Inc. 833-054-524-208	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Solder	54	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Female
EDAC Inc. 833-054-558-802	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Right Angle Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Solder	54	Copper Alloy		Female	3.25 mm	0.128 "

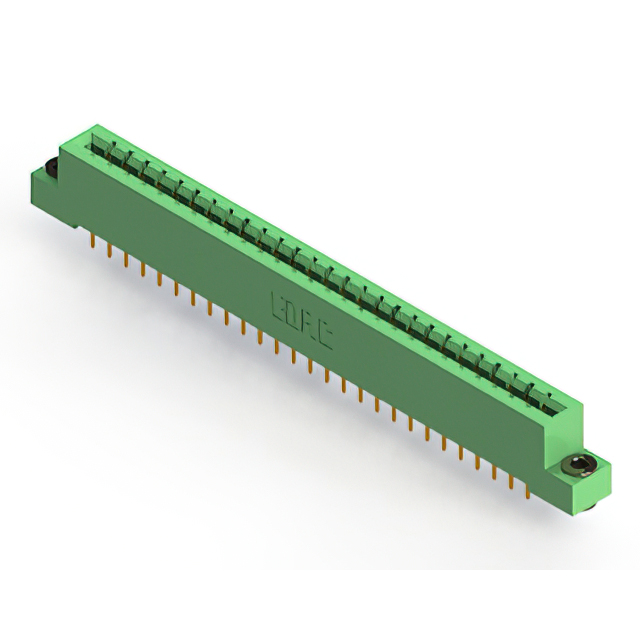

EDAC Inc. 833-054-521-203	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Solder	54	Copper Alloy	Floating Bobbin Flush Mount	Female	2.95 mm	0.116 "
EDAC Inc. 833-054-544-808	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Wire Wrap	54	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Female

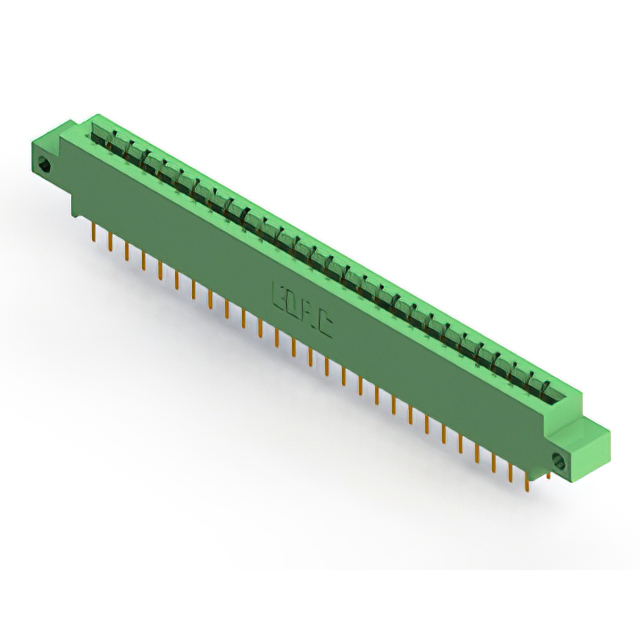

EDAC Inc. 833-054-520-812	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Solder	54	Copper Alloy	Side Mount Opening Unthreaded	Female	3.25 mm	0.128 "
EDAC Inc. 833-054-541-802	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Wire Wrap	54	Copper Alloy		Female	3.25 mm	0.128 "
EDAC Inc. 833-054-560-208	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Board Edge Straddle Mount	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Solder	54	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Female			Card Extender
EDAC Inc. 833-054-521-804	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Solder	54	Copper Alloy		Female	3.96 mm	0.156 "
EDAC Inc. 833-054-542-208	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	27	Through Hole	Green	Non Specified - Dual Edge	2	Gold	0.25 Ám	10 Áin	125 °C	-40 C	Dual	3.96 mm	0.156 in	Cantilever	Wire Wrap	54	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Female
