1377173 Series

Terminals TERMINAL R PVF2 PG

Manufacturer: TE Connectivity AMP Connectors

Catalog

Terminals TERMINAL R PVF2 PG

Catalog

Terminals TERMINAL R PVF2 PG

Part	Length - Termination	Length - Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Features	Mounting Type	Color	Terminal Type	Insulation	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Contact Material	Length - Overall [x]	Length - Overall [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges	Width - Outer Edges	Contact Finish	Length - Overall	Length - Overall	Thickness	Thickness	Pin Diameter [diameter]	Pin Diameter [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Pin [x]	Length - Pin [x]	Length - Termination [x]	Length - Termination [x]	Length - Overall	Length - Pin	Length - Pin	Pin Diameter [custom]	Pin Diameter [custom]	Pin Diameter [custom]	Pin Diameter [custom]	Tongue Inside Opening [custom]	Tongue Inside Opening [custom]	Stud/Tab Size	Number of Wire Entries
TE Connectivity AMP Connectors 1-1377173-8	0.416 in	10.57 mm	7.92 mm	0.312 in	Poly-Vinyl Chloride (PVC)	2.67 mm	0.14 in	3.56 mm	0.105 in	4.34 mm	0.171 in	Serrated Termination	Free Hanging (In-Line)	Red	Standard	Insulated	8 Stud	0.375 in	9.53 mm	16 AWG	22 AWG	Crimp	Copper	23.37 mm	0.92 in
TE Connectivity AMP Connectors 9-1377173-9			11.1 mm	0.437 in	Nylon Polyamide (PA)	2.92 mm	0.17 "	4.32 mm	0.115 in				Free Hanging (In-Line)	Blue	Standard	Insulated	0.25 Stud			14 AWG	16 AWG	Crimp	Copper	28.02 mm	1.103 in	0.25 in	6.35 mm	12.07 mm	0.475 in	Tin

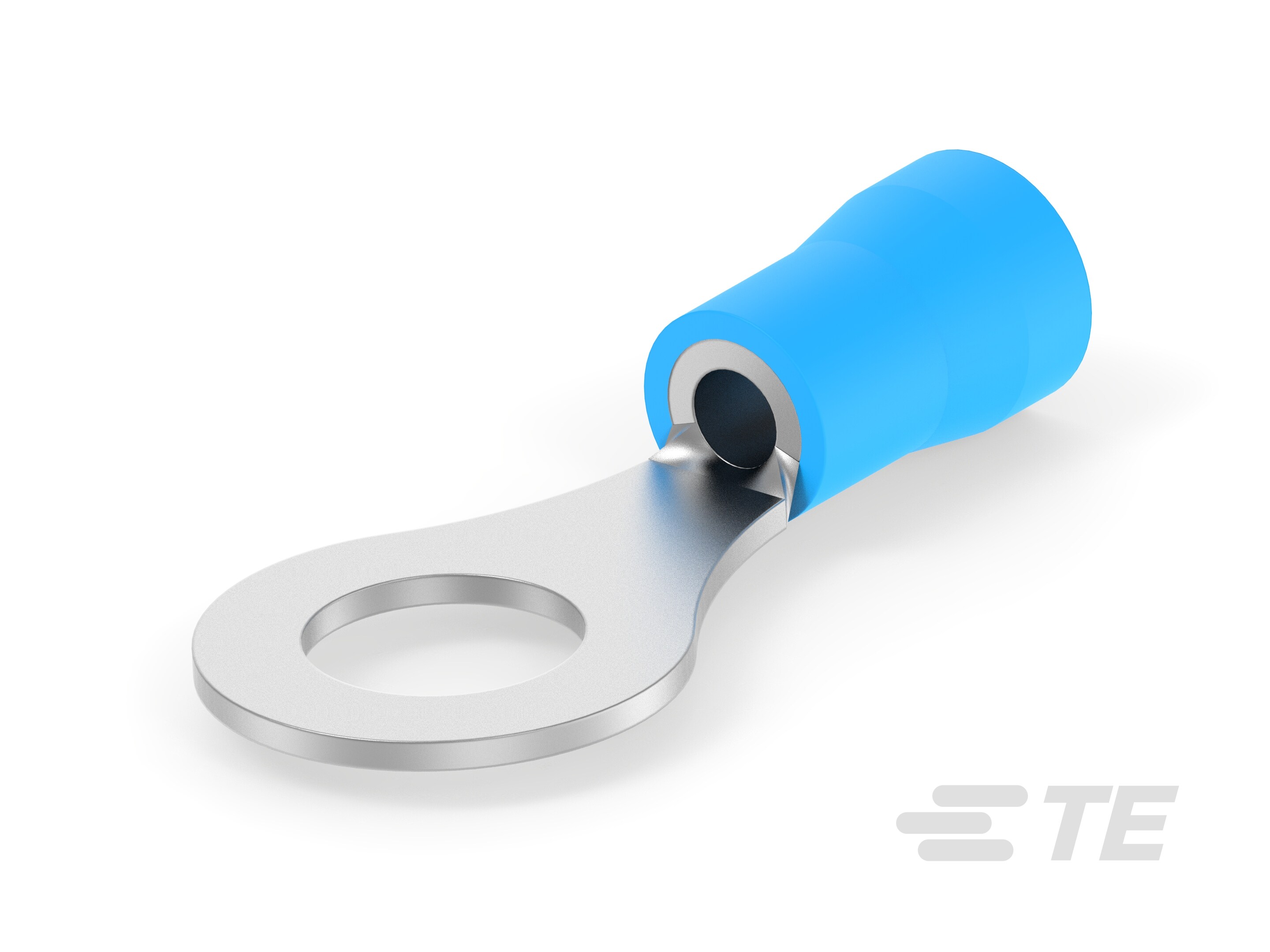

TE Connectivity AMP Connectors 1377173-6					Poly-Vinyl Chloride (PVC)	3 mm	0.193 in	4.9 mm	0.118 in			Serrated Termination	Free Hanging (In-Line)	Blue	Circular	Insulated	0.25 Stud	0.469 "	11.91 mm	14 AWG	16 AWG	Crimp	Copper							Tin	1.09 in	27.69 mm	0.79 mm	0.031 in
TE Connectivity AMP Connectors 4-1377173-5					Poly-Vinyl Chloride (PVC)							Serrated Termination		Blue		Insulated				14 AWG	16 AWG	Crimp	Copper	20.65 mm	0.813 in					Tin					0.071 in	1.8 mm	4.83 mm	0.115 in	2.92 mm	0.19 in	6.71 mm	0.264 in
TE Connectivity AMP Connectors 3-1377173-8			11.18 mm	0.44 "	Poly-Vinyl Chloride (PVC)	3.81 mm	0.252 in	6.4 mm	0.15 in			Serrated Termination	Free Hanging (In-Line)	Yellow	Standard	Insulated	0.25 Stud			10 AWG	12 AWG	Crimp	Copper	33.2 mm	1.307 in	0.25 in	6.35 mm	13.46 mm	0.53 in	Tin		1.102 in											0.617 in	15.68 mm	27.99 mm
TE Connectivity AMP Connectors 5-1377173-0					Poly-Vinyl Chloride (PVC)	3.81 mm	0.252 in	6.4 mm	0.15 in			Serrated Termination		Yellow		Insulated				10 AWG	12 AWG	Crimp	Copper	29.39 mm	1.157 in					Tin													0.693 in	17.6 mm		0.465 in	11.81 mm	0.165 in	0.031 in	4.2 mm	0.8 mm
TE Connectivity AMP Connectors 3-1377173-7			11.18 mm	0.44 "	Poly-Vinyl Chloride (PVC)	3.81 mm	0.252 in	6.4 mm	0.15 in			Serrated Termination	Free Hanging (In-Line)	Yellow	Standard	Insulated				10 AWG	12 AWG	Crimp	Copper	33.2 mm	1.307 in			13.46 mm	0.53 in	Tin													0.617 in	15.68 mm								0.205 in	5.21 mm	M5 Stud
TE Connectivity AMP Connectors 5-1377173-6												Serrated Mating Area		Blue	Inline Individual Openings (Parallel)	Fully Insulated				14 AWG	16 AWG	Crimp																																	2
TE Connectivity AMP Connectors 4-1377173-0													Free Hanging (In-Line)	Yellow	Flanged	Insulated	10 Stud	0.416 in	10.57 mm	10 AWG	12 AWG	Crimp	Copper							Tin		1.102 in													27.99 mm

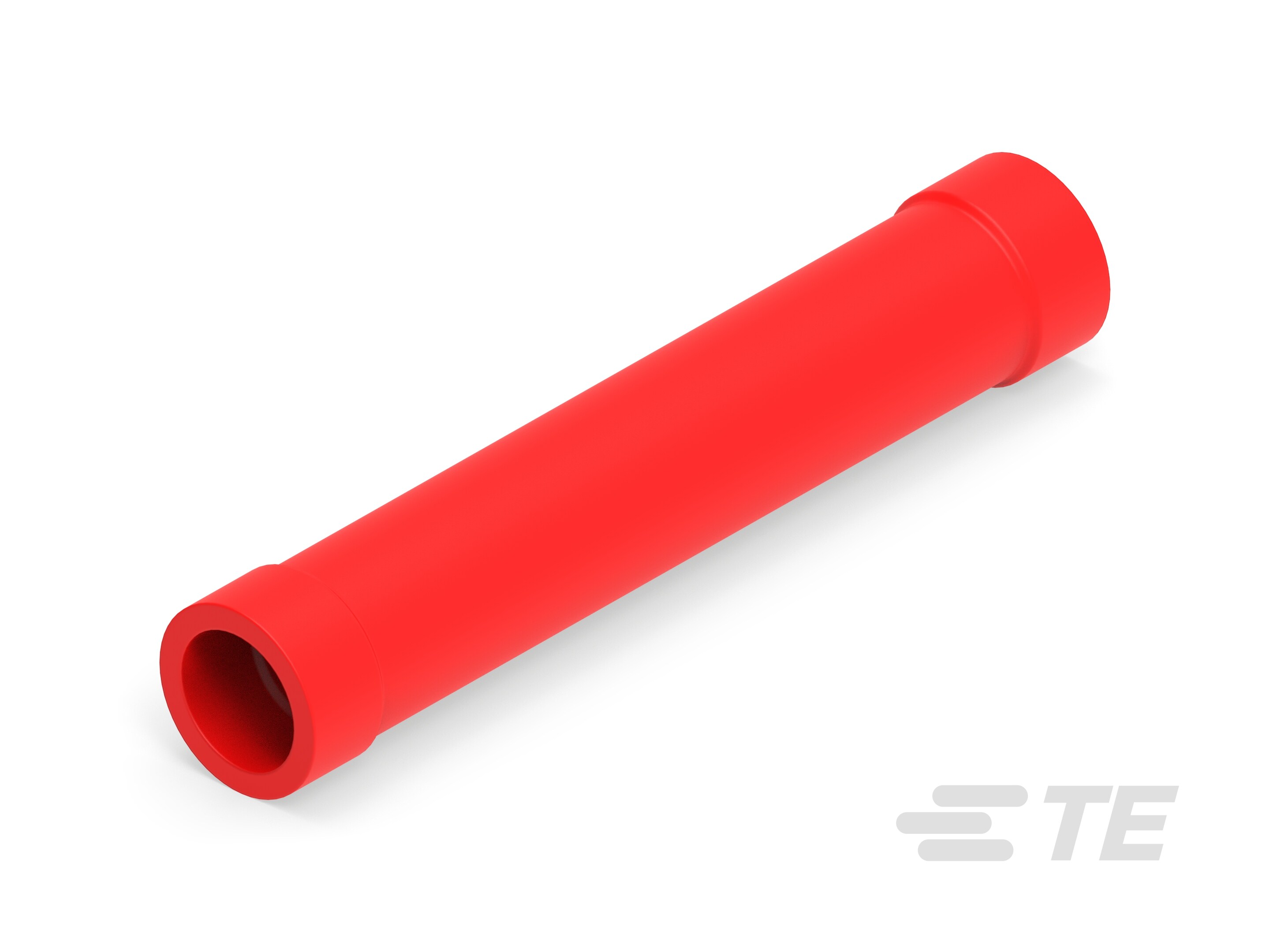

TE Connectivity AMP Connectors 5-1377173-2												Serrated Mating Area		Red	Butt Splice Individual Openings Inline	Fully Insulated				16 AWG	22 AWG	Crimp																																	2
