051233 Series
Manufacturer: Molex
Beta
⌘K

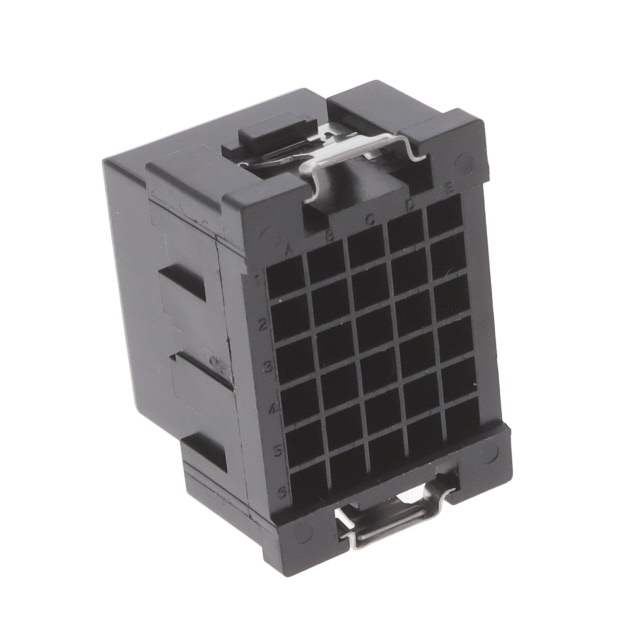

CONN RCPT HSG 30POS 3.00MM
| Part | Insulation Material | Contact Termination | Row Spacing [x] | Row Spacing [x] | Contact Type | Note | Connector Type | Color | Number of Rows | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | 0.118 in | 3 mm | Male Pin | Contacts Not Included | Receptacle | Black | 6 | 30 | -40 °C | 105 ░C | 3 mm | 0.118 in | Latch Lock | |
 Molex | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | 0.118 in | 3 mm | Male Pin | Contacts Not Included | Receptacle | Black | 10 | 50 | -40 °C | 105 ░C | 3 mm | 0.118 in | Latch Lock | |
Molex | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | 0.118 in | 3 mm | Male Pin | Contacts Not Included | Receptacle | Black | 10 | 50 | -40 °C | 105 ░C | 3 mm | 0.118 in | Latch Lock | Position 23 Molded Closed |
Molex | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | 0.118 in | 3 mm | Male Pin | Contacts Not Included | Receptacle | Black | 5 | 20 | -40 °C | 105 ░C | 3 mm | 0.118 in | Latch Lock | Position 7 Molded Closed |
