9501-9593 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

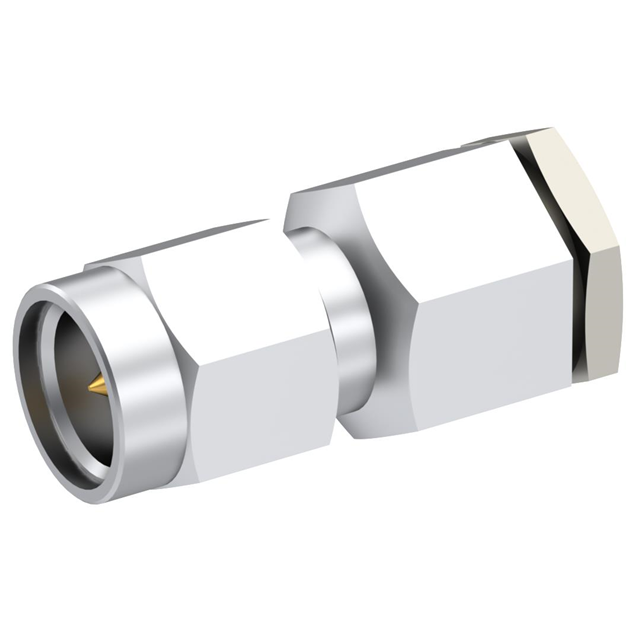

SMA / STRAIGHT PLUG MALE SOLDER
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Impedance | Center Contact Material | Connector Style | Connector Type | Mounting Type | Housing Color | Frequency - Max [Max] | Contact Termination | Number of Ports | Cable Group | Shield Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | 500 | Gold | 50 Ohms | Beryllium Copper | SMA | Plug Male Pin | Free Hanging (In-Line) | Silver | 18 GHz | Solder | 1 | RG-405 (.086 Semi Rigid) | Clamp | Threaded |
