ANS-I Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 30A 32VDC BLADE MINI

Part	Fuse Type	Response Time	Voltage Rating - DC	Mounting Type	Breaking Capacity @ Rated Voltage	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Package / Case	Approval Agency	Color

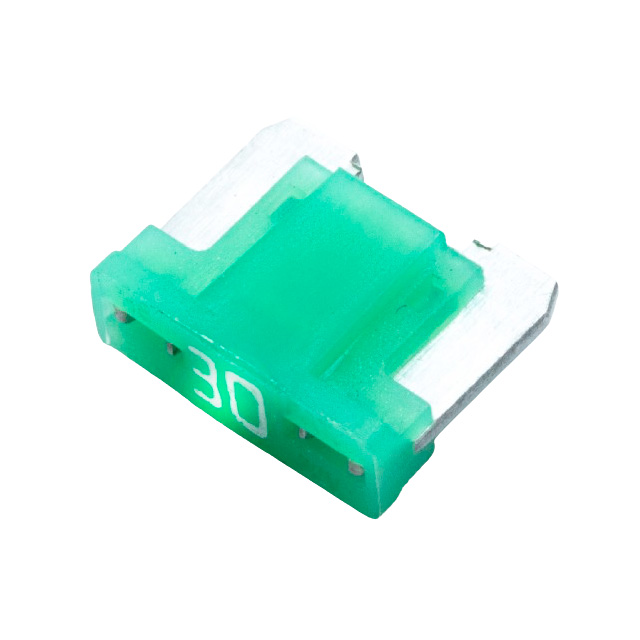

OptiFuse ANS-I-30A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	30 A	Blade Miniature (Low Profile)	ISO SAE	Green

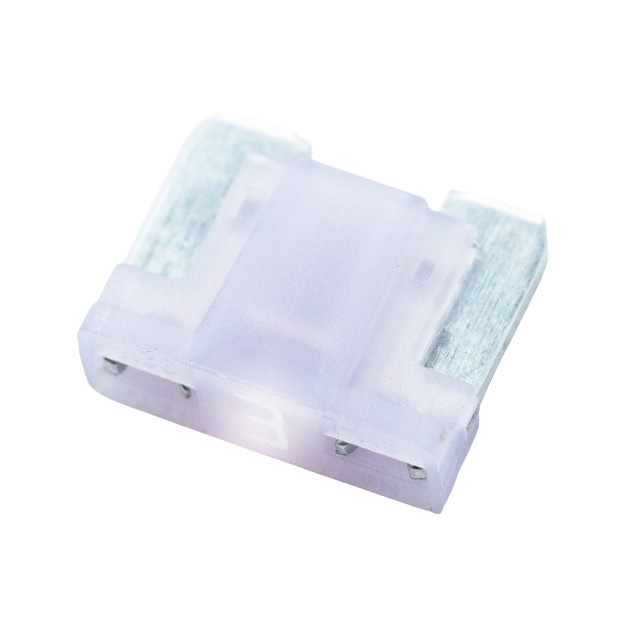

OptiFuse ANS-I-3A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	3 A	Blade Miniature (Low Profile)	ISO SAE	Violet

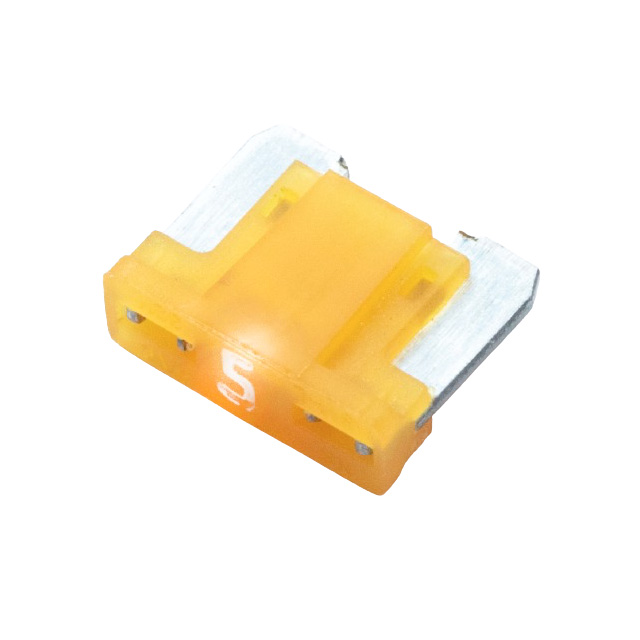

OptiFuse ANS-I-5A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	5 A	Blade Miniature (Low Profile)	ISO SAE	Tan

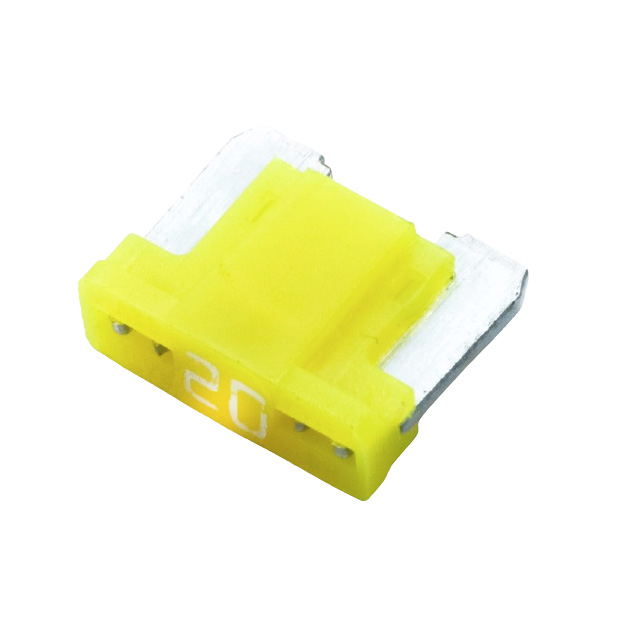

OptiFuse ANS-I-20A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	20 A	Blade Miniature (Low Profile)	ISO SAE	Yellow

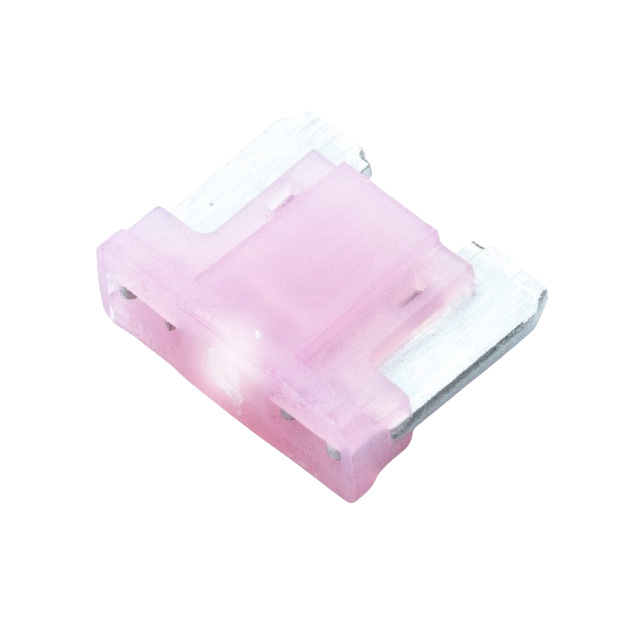

OptiFuse ANS-I-4A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	4 A	Blade Miniature (Low Profile)	ISO SAE	Pink

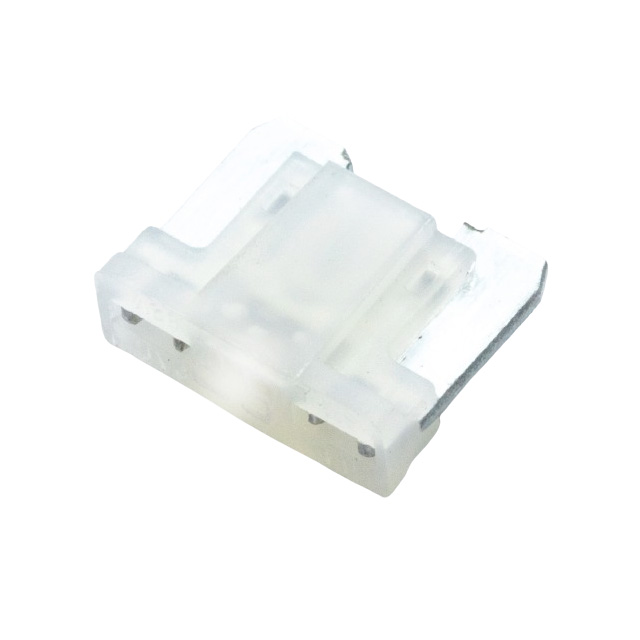

OptiFuse ANS-I-25A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	25 A	Blade Miniature (Low Profile)	ISO SAE	Clear

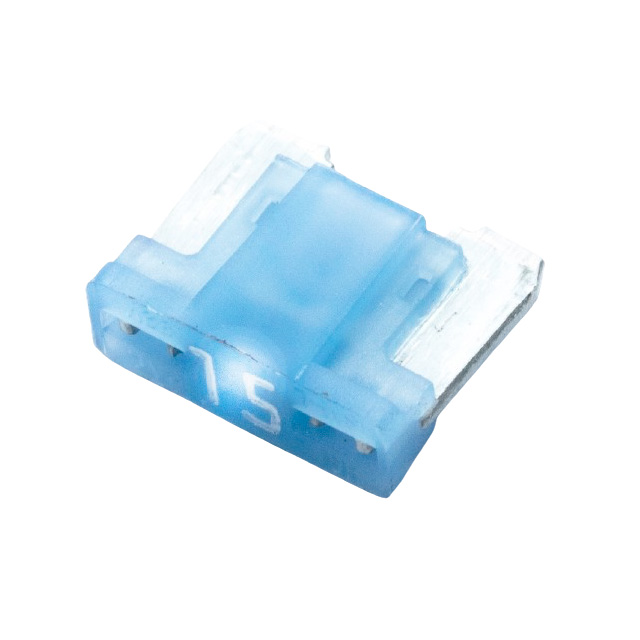

OptiFuse ANS-I-15A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	15 A	Blade Miniature (Low Profile)	ISO SAE	Blue

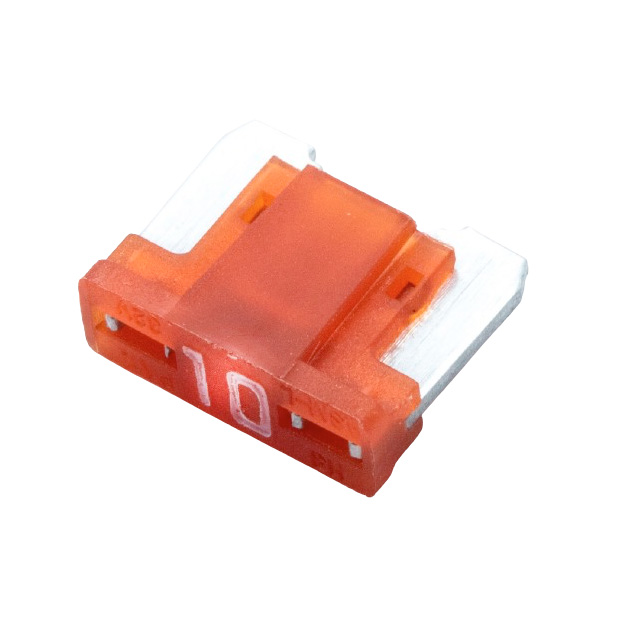

OptiFuse ANS-I-10A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	10 A	Blade Miniature (Low Profile)	ISO SAE	Red

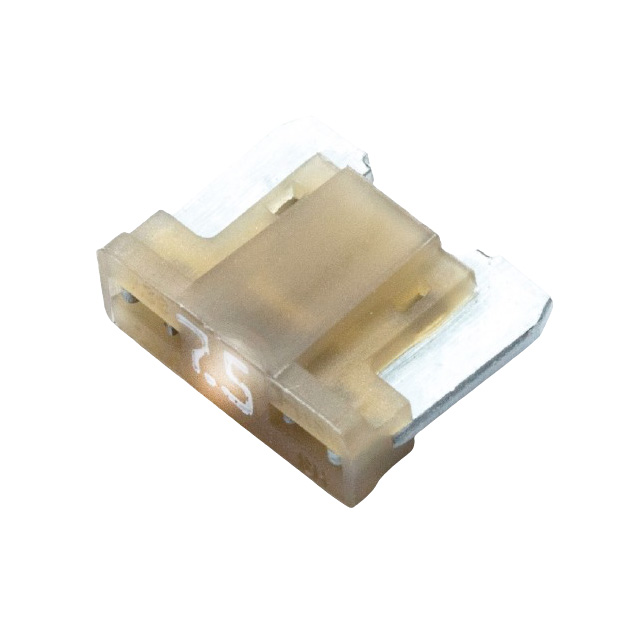

OptiFuse ANS-I-7.5A	Automotive	Fast Blow	32 V	Requires Holder	1 kA	0.154 in	8.75 mm	11 mm	0.344 "	0.433 in	3.91 mm	7.5 A	Blade Miniature (Low Profile)	ISO SAE	Brown
