681M3W3 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 3P PNL MNT SLDR
| Part | Dielectric Material | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Shell Material, Finish | Shell Size, Connector Layout | Connector Type | Current Rating (Amps) | Number of Positions | Contact Type | Termination | Material Flammability Rating | Number of Rows | Flange Feature | Connector Style | Contact Finish Thickness | Mounting Type | Features | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

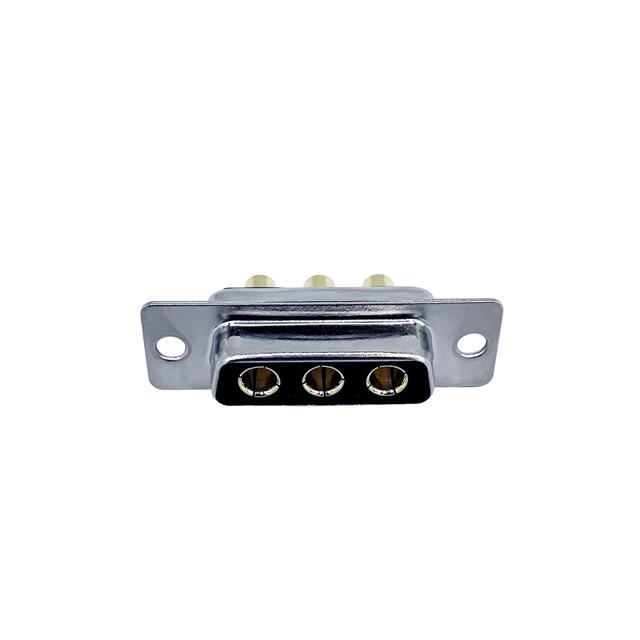

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | -55 C | 125 °C | Black | Nickel Plated Steel | 2 (DA A) - 3W3 | Receptacle Female Sockets | 40 A | 3 | Power | Solder | UL94 V-0 | 1 | Board Side (4-40) | Combo D-Sub | Flash | Panel Mount Through Hole | Board Lock | Gold |

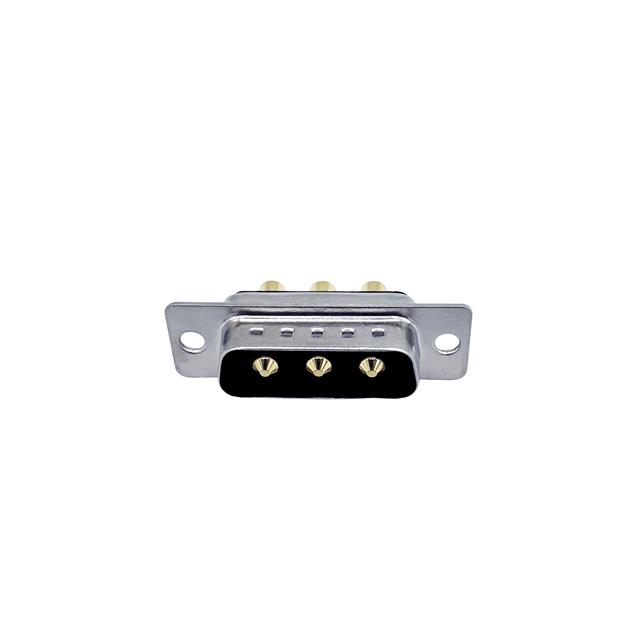

 NorComp Inc. | Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | -55 C | 125 °C | Black | Nickel Plated Steel | 2 (DA A) - 3W3 | Plug Male Pins | 40 A | 3 | Power | Solder | UL94 V-0 | 1 | Board Side (4-40) | Combo D-Sub | Flash | Panel Mount Through Hole | Board Lock Grounding Indents | Gold |
NorComp Inc. | Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | -55 C | 125 °C | Black | Nickel Plated Steel | 2 (DA A) - 3W3 | Receptacle Female Sockets | 40 A | 3 | Power | Solder | UL94 V-0 | 1 | Board Side (4-40) | Combo D-Sub | Flash | Panel Mount Through Hole | Board Lock | Gold |
NorComp Inc. | Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | -55 C | 125 °C | Black | Nickel Plated Steel | 2 (DA A) - 3W3 | Plug Male Pins | 40 A | 3 | Power | Solder | UL94 V-0 | 1 | Housing/Shell (Unthreaded) | Combo D-Sub | Flash | Panel Mount Through Hole | Grounding Indents | Gold |
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | -55 C | 125 °C | Black | Nickel Plated Steel | 2 (DA A) - 3W3 | Plug Male Pins | 40 A | 3 | Power | Solder | UL94 V-0 | 1 | Board Side (4-40) | Combo D-Sub | Flash | Panel Mount Through Hole | Grounding Indents | Gold |
