2842128 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

14P,2MM,BRK HDR,DRVT,2.8,0.76AU,

Part	Number of Rows	Insulation Material	Shrouding	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Shape	Contact Material	Current Rating (Amps)	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Voltage Rating	Number of Positions	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish - Mating	Contact Finish - Post	Termination	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Positions

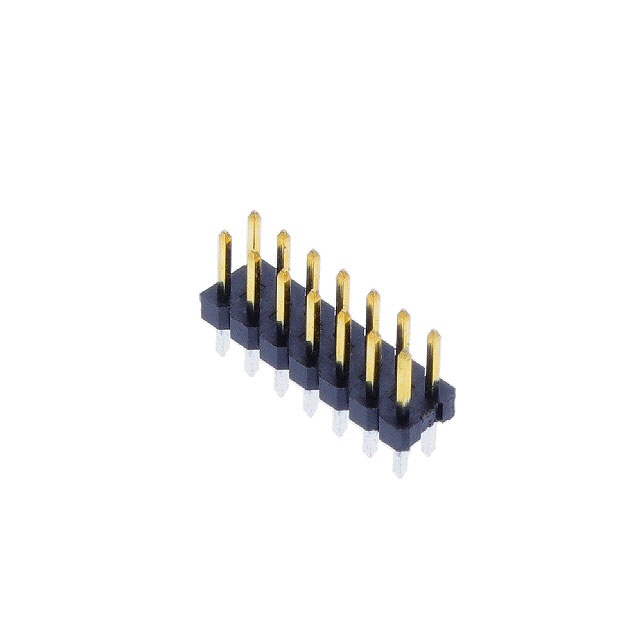

TE Connectivity Raychem Cable Protection 2842128-7	2	Thermoplastic	Unshrouded	Push-Pull	0.11 in	2.79 mm	0.079 in	2 mm	Male Pin	Square	Copper Alloy	2 A	1.5 mm	0.059 "	0.079 in	2 mm	30 Áin	0.76 Ám	2 çm	78.7 çin	All	125 VAC	14	Black	125 °C	-40 °C	8.3 mm	0.327 in	Breakaway Header	Gold	Tin	Solder	UL94 V-0	4 mm	0.157 in	Through Hole
TE Connectivity Raychem Cable Protection 2842128-2	2	Thermoplastic	Unshrouded	Push-Pull	0.11 in	2.79 mm	0.079 in	2 mm	Male Pin	Square	Copper Alloy	2 A	1.5 mm	0.059 "	0.079 in	2 mm	30 Áin	0.76 Ám	2 çm	78.7 çin	All	125 VAC	4	Black	125 °C	-40 °C	8.3 mm	0.327 in	Breakaway Header	Gold	Tin	Solder	UL94 V-0	4 mm	0.157 in	Through Hole
TE Connectivity Raychem Cable Protection 2842128-4	2	Thermoplastic	Unshrouded	Push-Pull	0.11 in	2.79 mm	0.079 in	2 mm	Male Pin	Square	Copper Alloy	2 A	1.5 mm	0.059 "	0.079 in	2 mm	30 Áin	0.76 Ám	2 çm	78.7 çin	All	125 VAC	8	Black	125 °C	-40 °C	8.3 mm	0.327 in	Breakaway Header	Gold	Tin	Solder	UL94 V-0	4 mm	0.157 in	Through Hole
TE Connectivity Raychem Cable Protection 2842128-6	2	Thermoplastic	Unshrouded	Push-Pull	0.11 in	2.79 mm	0.079 in	2 mm	Male Pin	Square	Copper Alloy	2 A	1.5 mm	0.059 "	0.079 in	2 mm	30 Áin	0.76 Ám	2 çm	78.7 çin	All	125 VAC	12	Black	125 °C	-40 °C	8.3 mm	0.327 in	Breakaway Header	Gold	Tin	Solder	UL94 V-0	4 mm	0.157 in	Through Hole
TE Connectivity Raychem Cable Protection 2842128-8	2	Thermoplastic	Unshrouded	Push-Pull	0.11 in	2.79 mm	0.079 in	2 mm	Male Pin	Square	Copper Alloy	2 A	1.5 mm	0.059 "	0.079 in	2 mm	30 Áin	0.76 Ám	2 çm	78.7 çin	All	125 VAC		Black	125 °C	-40 °C	8.3 mm	0.327 in	Breakaway Header	Gold	Tin	Solder	UL94 V-0	4 mm	0.157 in	Through Hole	16
TE Connectivity Raychem Cable Protection 1-2842128-0	2	Thermoplastic	Unshrouded	Push-Pull	0.11 in	2.79 mm	0.079 in	2 mm	Male Pin	Square	Copper Alloy	2 A	1.5 mm	0.059 "	0.079 in	2 mm	30 Áin	0.76 Ám	2 çm	78.7 çin	All	125 VAC	20	Black	125 °C	-40 °C	8.3 mm	0.327 in	Breakaway Header	Gold	Tin	Solder	UL94 V-0	4 mm	0.157 in	Through Hole
