MRAN1 Series

Catalog

SWITCH ROTARY

Part	Panel Cutout Dimensions [diameter]	Circuit per Deck	Number of Decks [custom]	Number of Poles per Deck	Number of Positions [Max]	Number of Positions [Min]	Contact Timing	Angle of Throw	Current Rating (Amps)	Actuator Type	Depth Behind Panel [z]	Voltage Rating - AC	Mounting Type	Index Stops	Contact Material	Termination Style	Features	Contact Finish	Actuator Length [x]
NKK Switches MRAN112-CE	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	15.8 mm
NKK Switches MRAN112-BC	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	14.3 mm
NKK Switches MRAN112-A	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	13 mm
NKK Switches MRAN112-BB	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	14.3 mm
NKK Switches MRAN112-BE	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	14.3 mm

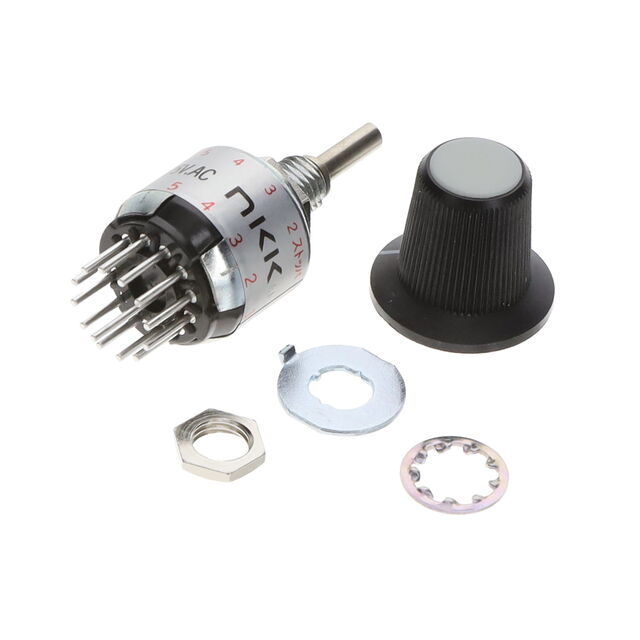

NKK Switches MRAN112-CB	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	15.8 mm
NKK Switches MRAN112-BF	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	13 mm

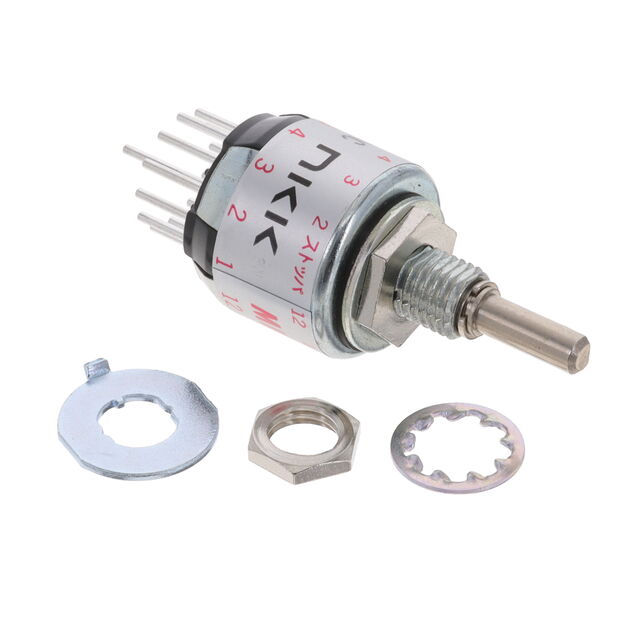

NKK Switches MRAN112	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Flatted (3.17mm Dia)	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	10 mm
NKK Switches MRAN112-BG	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	14.3 mm
NKK Switches MRAN112-BA	0.25 in	SP12T	1	1	12	2	Non-Shorting (BBM)	30 °	250 mA	Knob	17 mm	125 V	Panel Mount Through Hole	Adjustable	Copper	PC Pin	Process Sealed	Silver	14.3 mm
