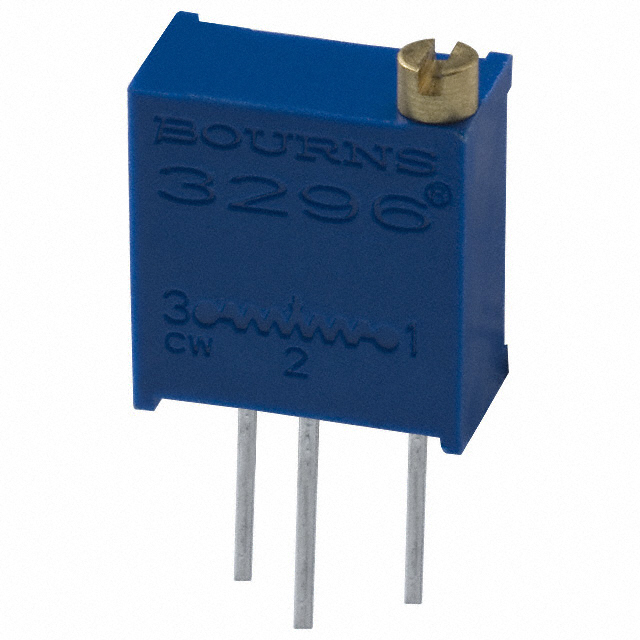

3296Y Series

Catalog

TRIMMER, MULTI TURN, CERMET, TOP ADJUST, 50 OHM, THROUGH HOLE, 25 TURNS

Part	Mounting Type	Termination Style	Resistive Material	Power (Watts)	Power (Watts)	Resistance	Number of Turns	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Adjustment Type
Bourns Inc. 3296Y-1-500LF	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	50 Ohms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-105	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	1 MOhms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-222	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	2200 Ohms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-500	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	50 Ohms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-204LF	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	200000 Ohms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-200	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	20 Ohms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-503	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	50000 Ohms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-473LF	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	47000 Ohms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-302LF	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	3 kOhms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
Bourns Inc. 3296Y-1-252LF	Through Hole	PC Pins	Cermet	0.5 W	0.5 W	2500 Ohms	25	100 ppm/°C	9.53 mm	4.83 mm	0.19 in	0.375 in	10 %	Top Adjustment
