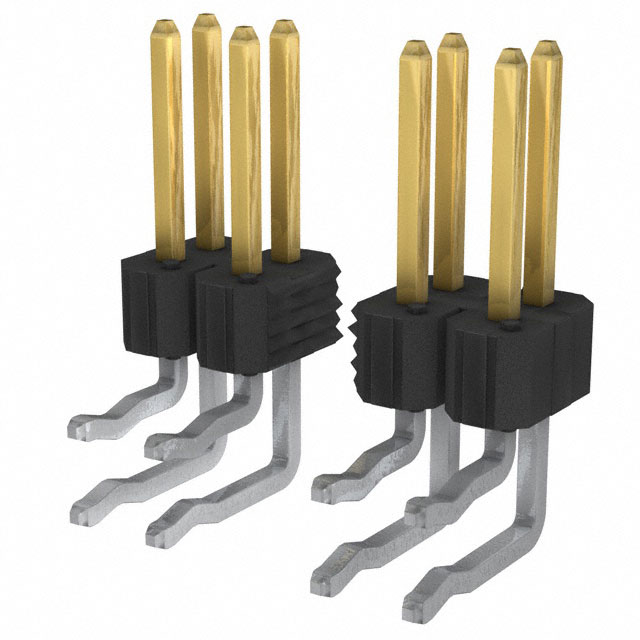

93150 Series

Catalog

CONN HEADER R/A 16POS 2.54MM

Part	Contact Finish - Mating	Shrouding	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Connector Type	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Shape	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Number of Positions	Number of Rows	Mounting Type	Insulation Color	Number of Positions
Amphenol ICC (FCI) 93150-516H	Gold or Gold GXT™	Unshrouded	Kinked Pin Solder	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Header	Phosphor Bronze	Push-Pull	15 µin	0.38 µm	All	4.83 mm	0.19 in	2.54 mm	0.1 in	UL94 V-0	Square	Male Pin	0.12 in	3.05 mm	0.275 in	6.99 mm	16	2	Through Hole Right Angle	Black

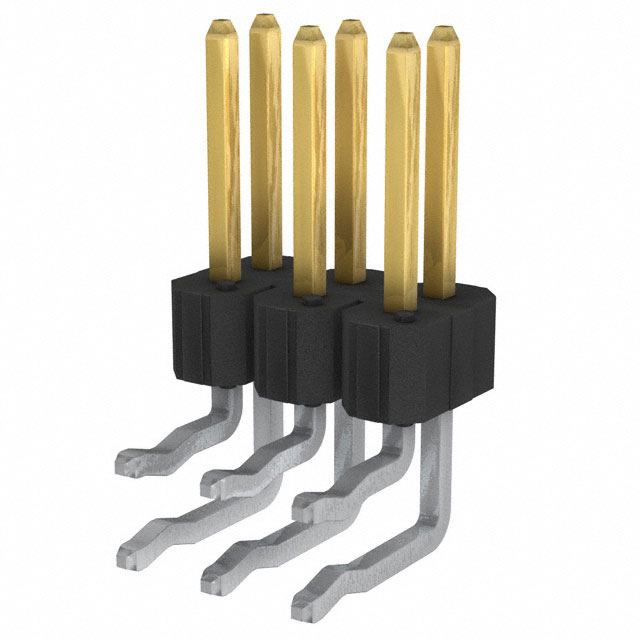

Amphenol ICC (FCI) 93150-506H	Gold or Gold GXT™	Unshrouded	Kinked Pin Solder	Polycyclohexylenedimethylene Terephthalate (PCT)	0.1 in	2.54 mm	Header	Phosphor Bronze	Push-Pull	15 µin	0.38 µm	All	4.83 mm	0.19 in	2.54 mm	0.1 in	UL94 V-0	Square	Male Pin	0.12 in	3.05 mm	0.275 in	6.99 mm		2	Through Hole Right Angle	Black	6
